EEC-IV System Component Location
EEC-IV System Component Location

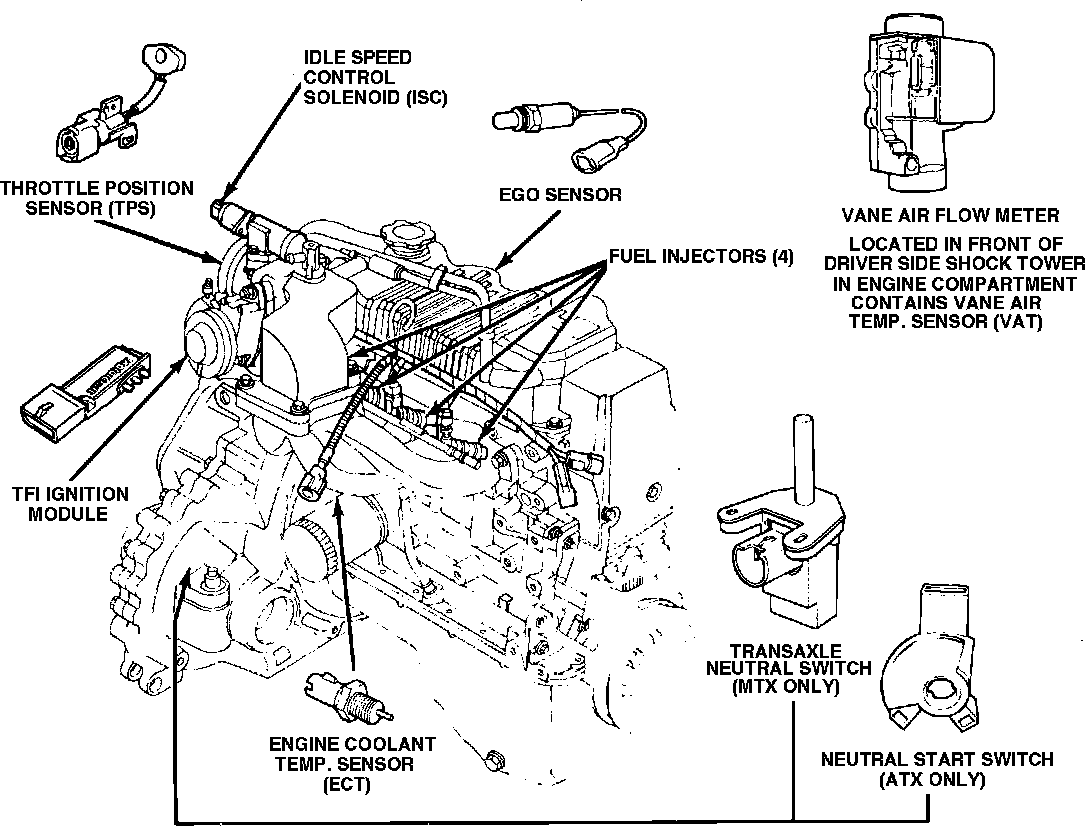

Fig. 9 EEC-IV system component location. 1983 4-97.6 EFI engine:

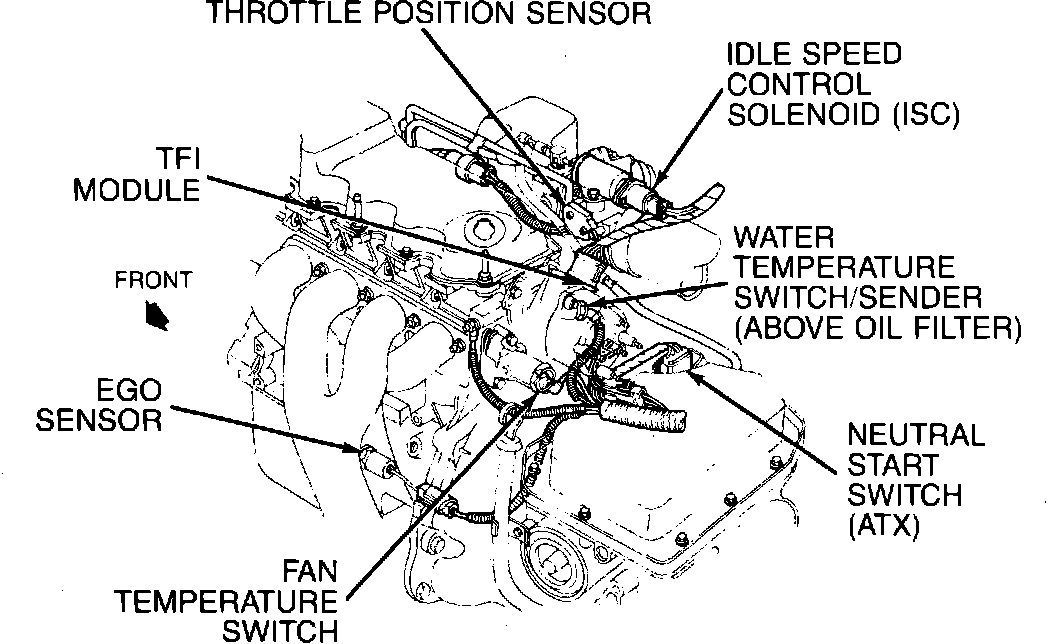

EEC-IV system component location. 1983 4-97.6 EFI engine:
