Escort & Lynx 3 & 5 Door Models

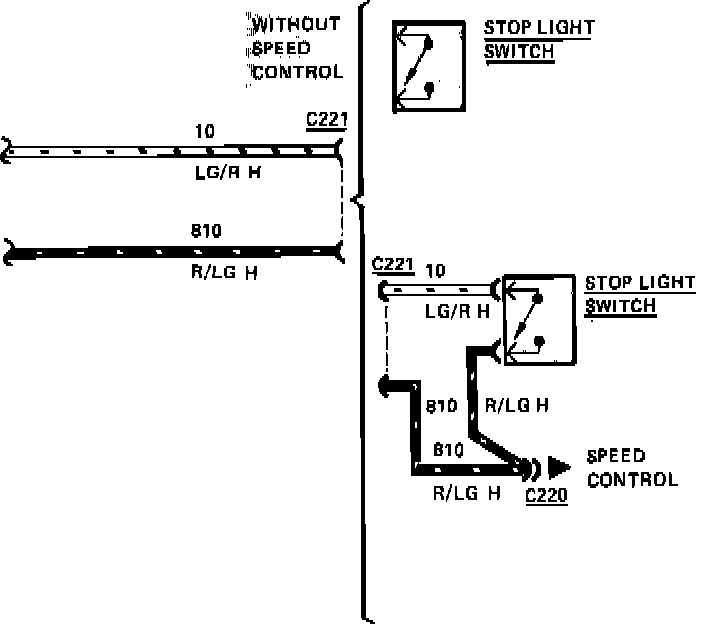

Fig. 97 Stop, turn & hazard lamp wiring circuit (Part 1 of 2). 1983 Escort & Lynx 3 & 5 door models:

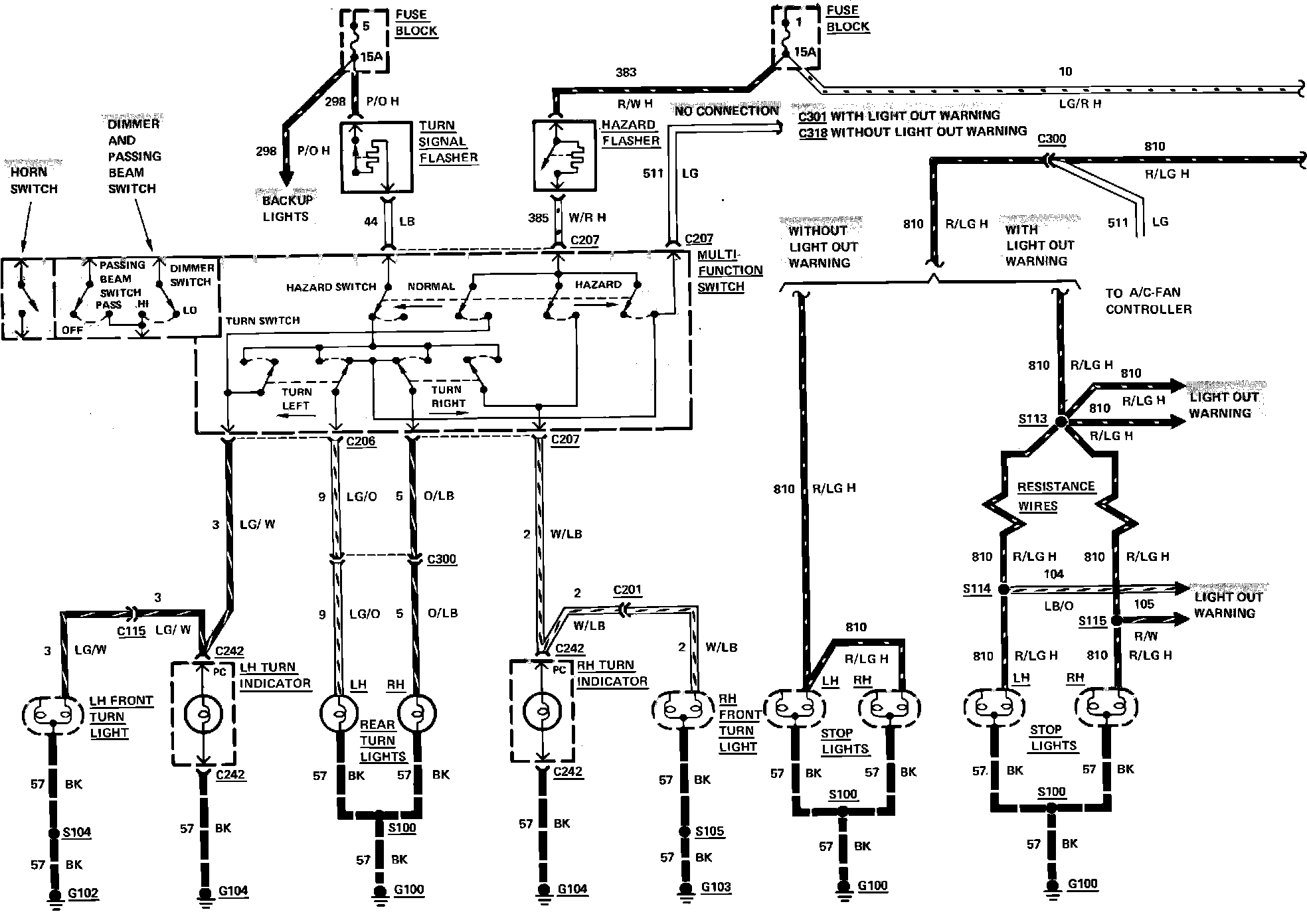

Fig. 97 Stop, turn & hazard lamp wiring circuit (Part 2 of 2). 1983 Escort & Lynx 3 & 5 door models:
