Wiring Diagrams

Wiring Diagram - Start/Ignition:

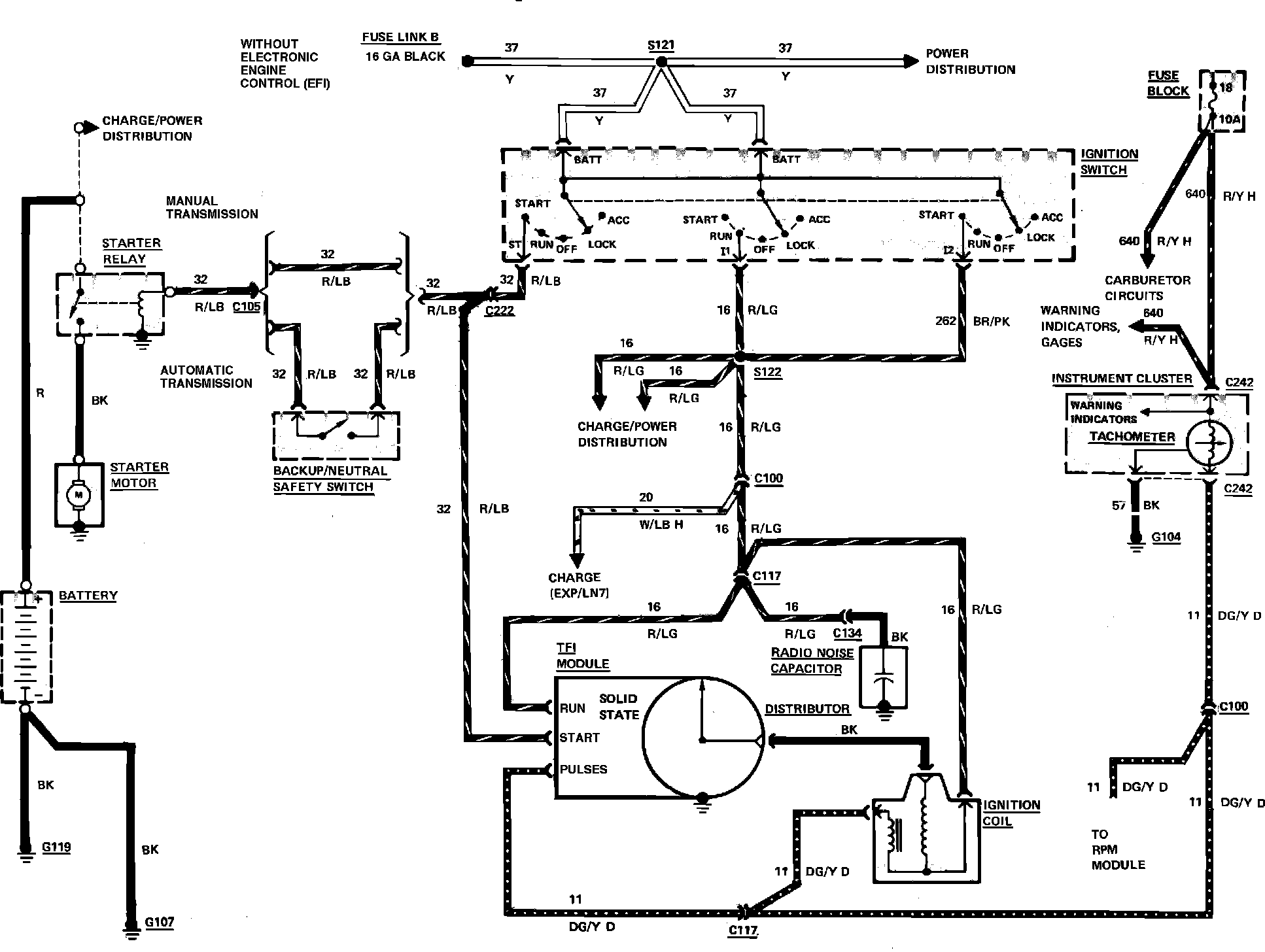

Fig. 52 Ignition, tachometer & starting system wiring circuit. 1983 Escort, EXP, Lynx & LN7 less fuel injection:
