1983
>>
LN7 L4-98 1.6L SOHC VIN 4 2-bbl HP
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
>>
Escort & Lynx Except GT & RS Models
Escort & Lynx Except GT & RS Models

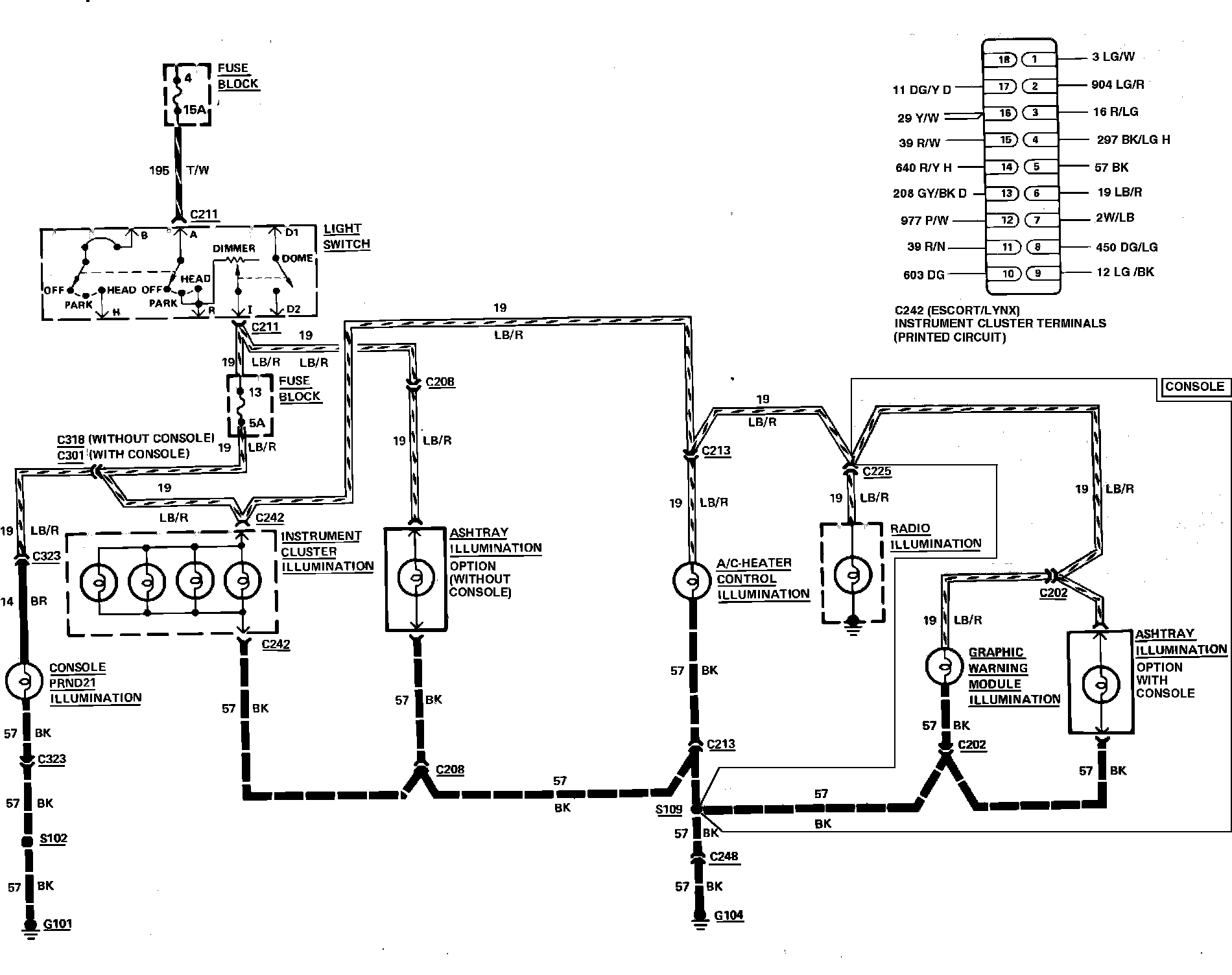

Fig. 59 Instrument panel illumination wiring circuit. 1983 Escort & Lynx except GT & RS models:
