Electrical Diagrams

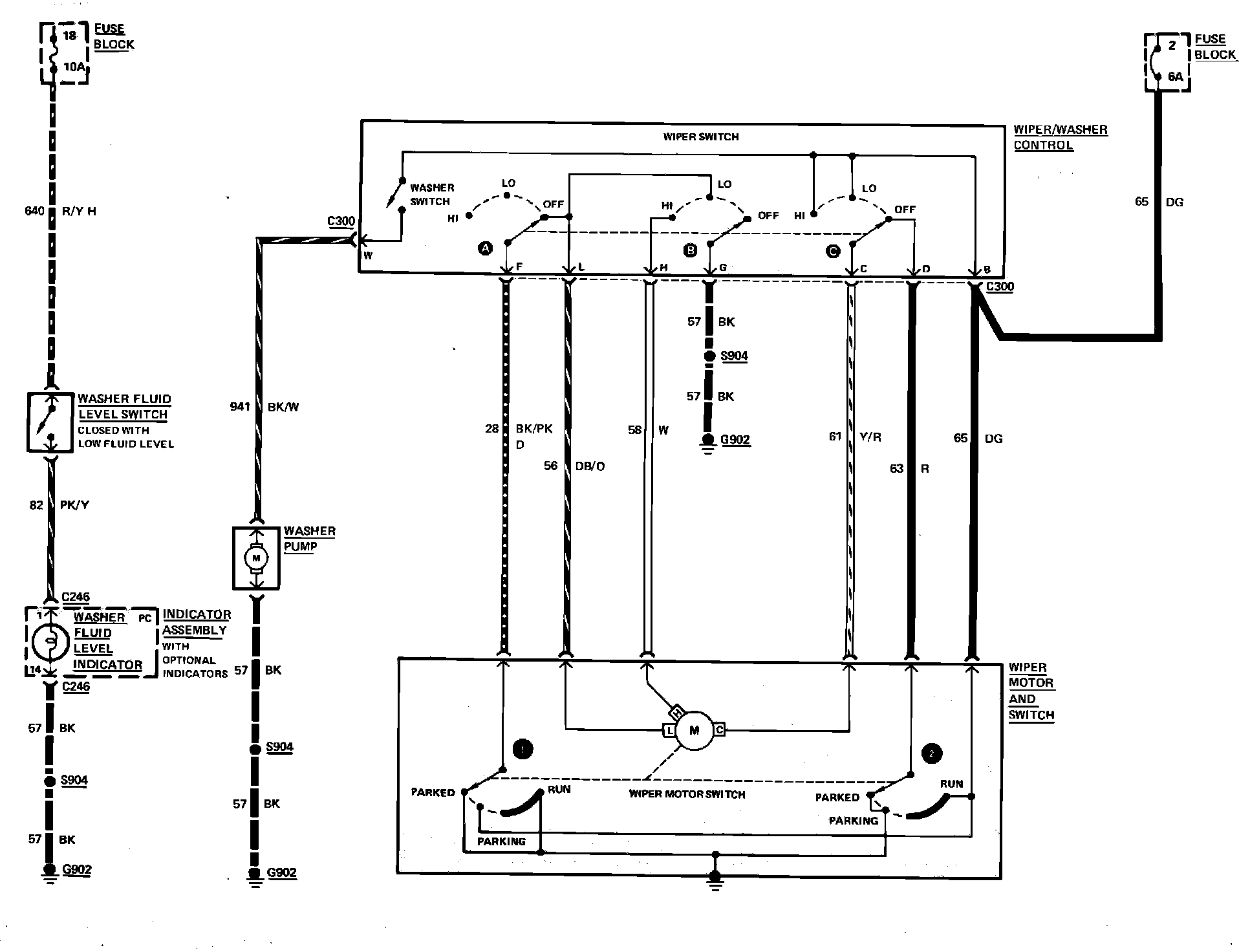

Fig. 103 Windshield Wiper & Washer Wiring Circuit. 1983-84 Cougar & Thunderbird less Intermittent Wipers:

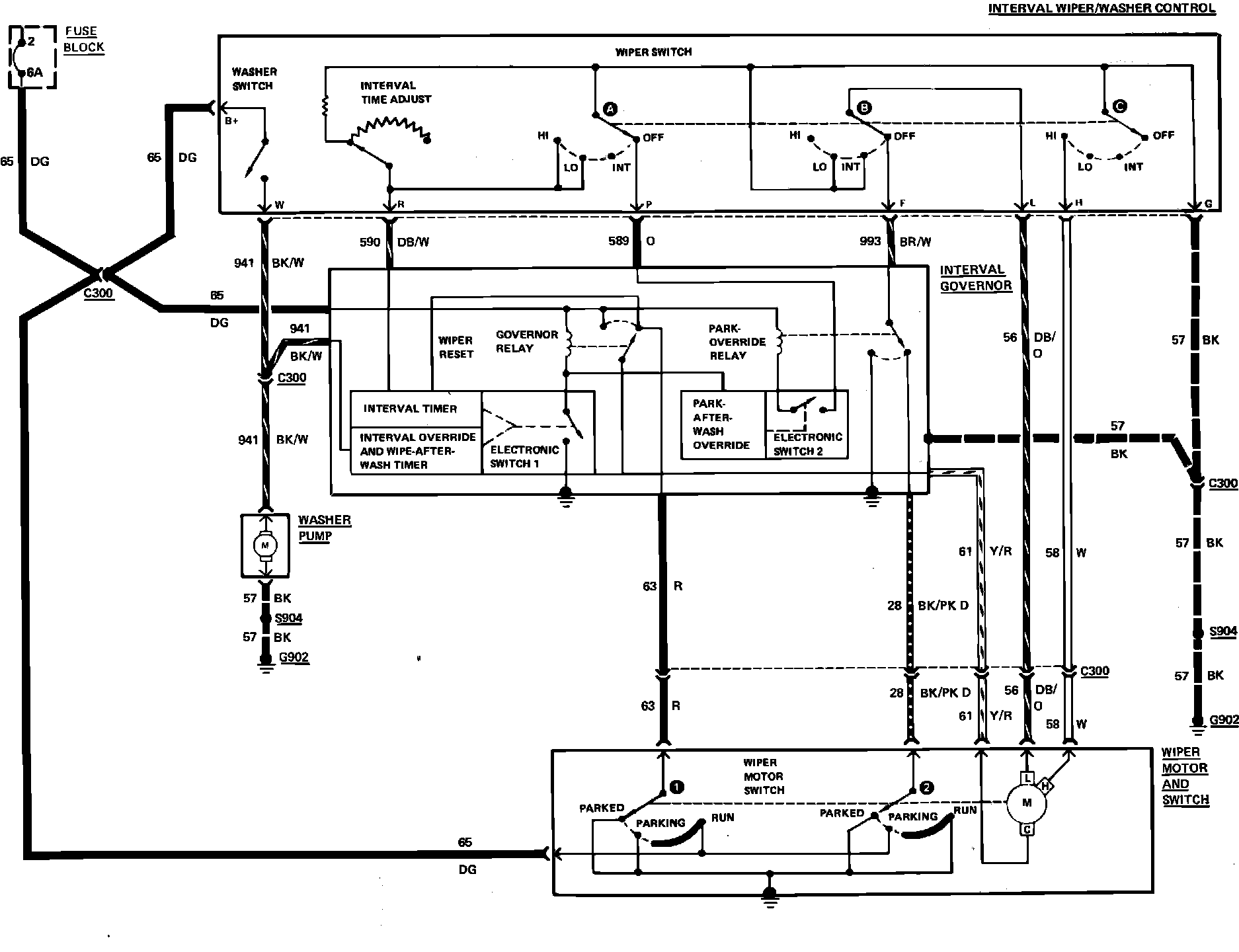

Fig. 104 Windshield Wiper & Washer Wiring Circuit. 1983-84 Cougar & Thunderbird with Intermittent Wipers:
