Home >> Mercury >> 1983 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Headlamp Switch >> Diagrams >> Electrical Diagrams >> With Autolamp

With Autolamp

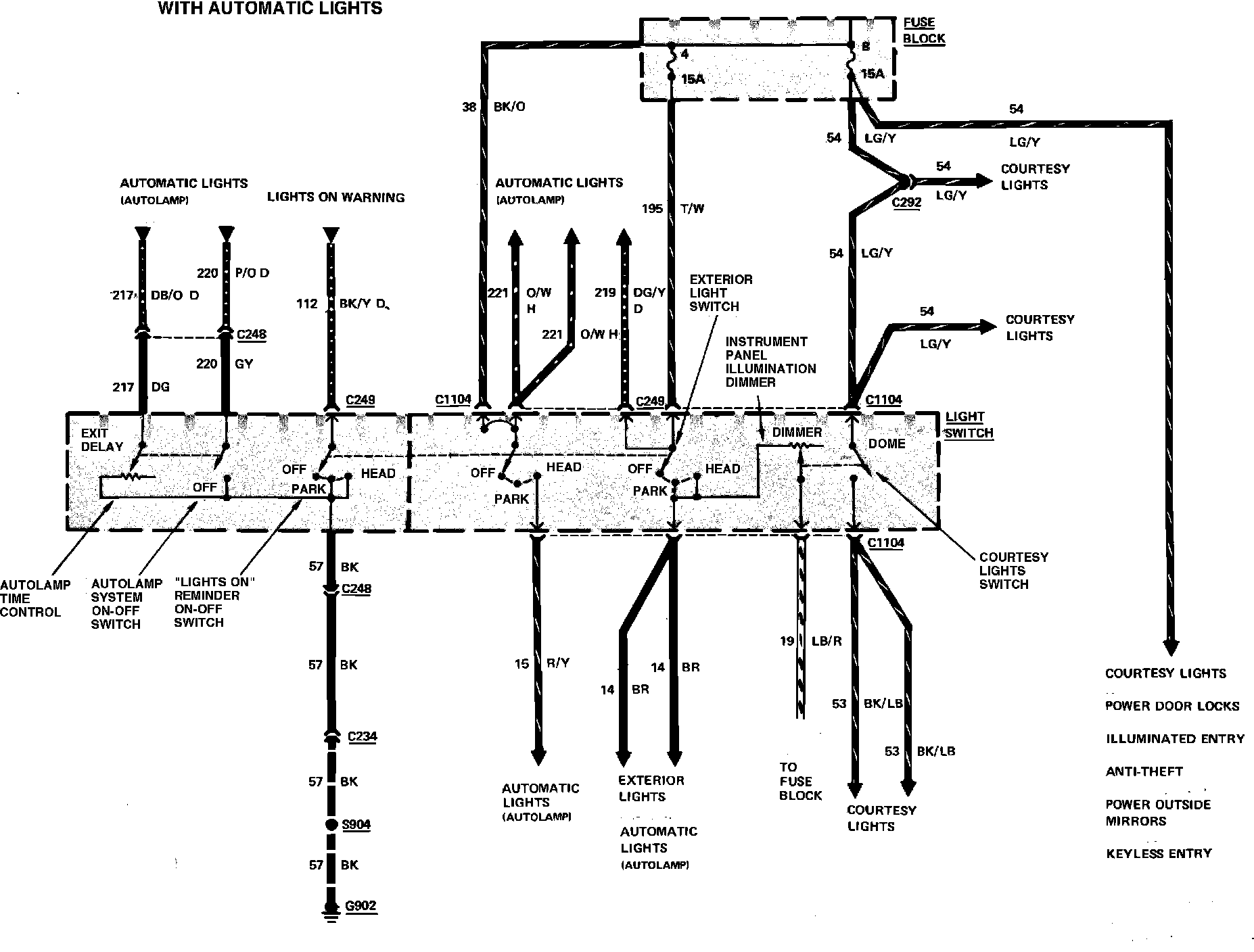

Fig. 52 Headlamp Switch Power Distribution Wiring Circuit. 1983-84 Cougar & Thunderbird with Autolamp System:
