Air Injection Vacuum Control Solenoid Valve: Locations

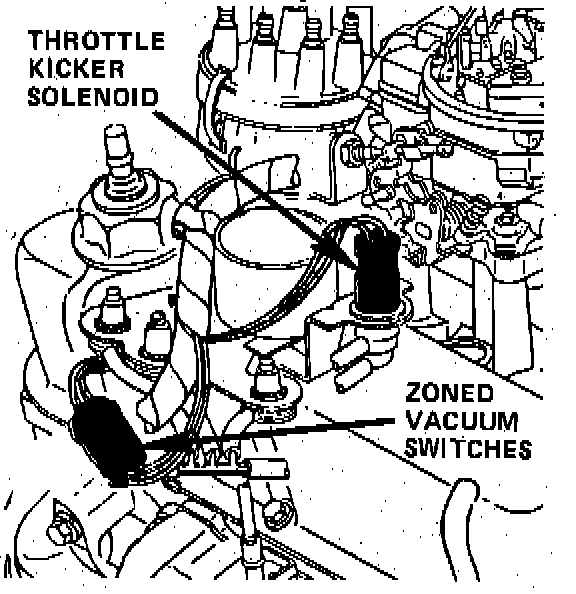

Rear Of Carburetor.:




LH Side Of Engine

Applicable to: 1981 Eight Cylinder
