Home >> Mercury >> 1983 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> 23 Thru 24

23 Thru 24

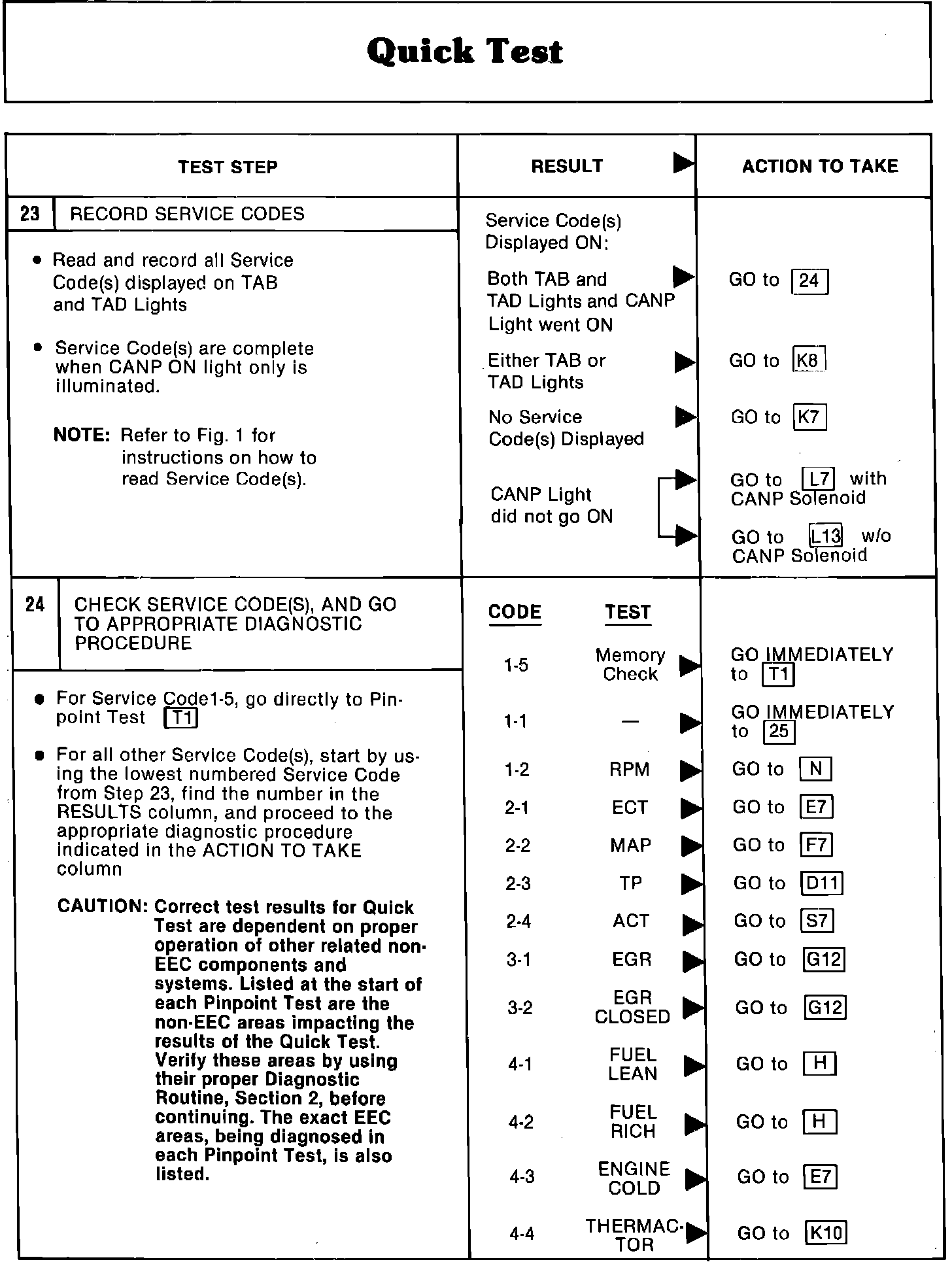

Quick Test Service Codes 1-1 Through 4-4 (Tests Referred To Under Action To Take Are Pinpoint Tests):
