Primary Courtesy Lamp

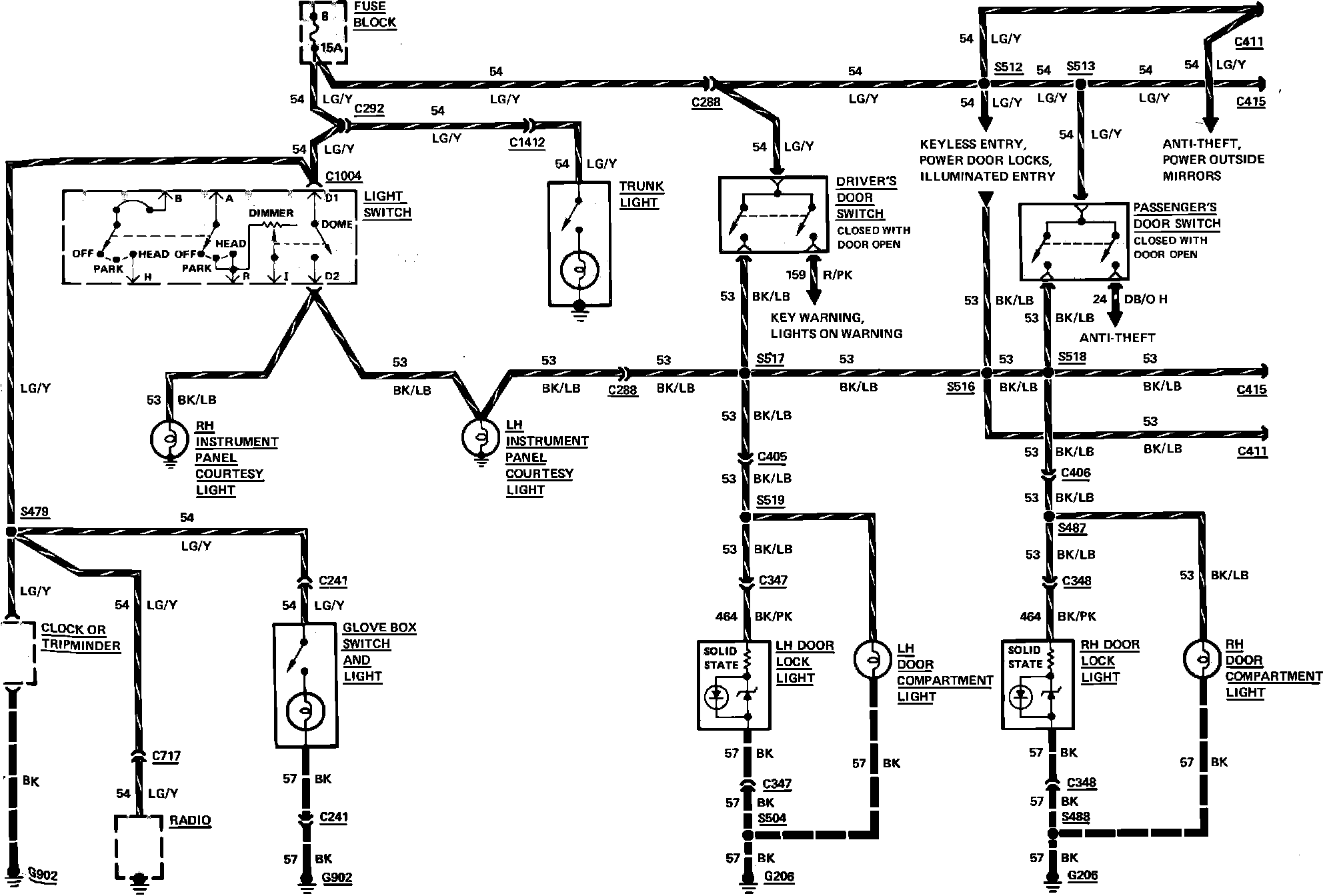

Fig. 30 Courtesy Lamp Wiring Circuit (Part 1 of 2). 1983 Cougar & Thunderbird:

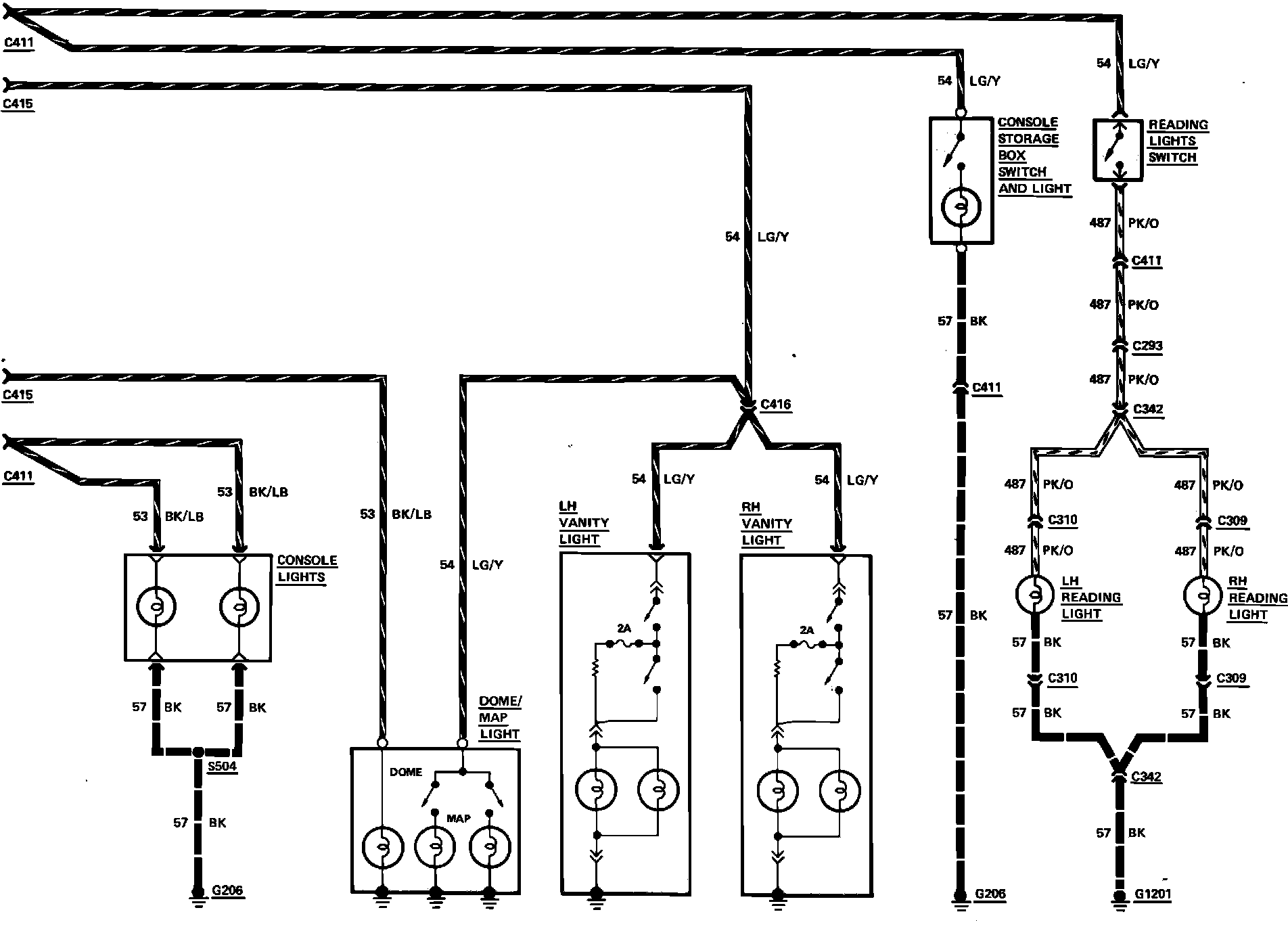

Fig. 30 Courtesy Lamp Wiring Circuit (Part 2 of 2). 1983 Cougar & Thunderbird:
