Home >> Mercury >> 1983 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Fuel Gauge >> Testing and Inspection >> Fuel Gauge Indication Inaccurate or Erratic >> Test G0 - G4

Test G0 - G4

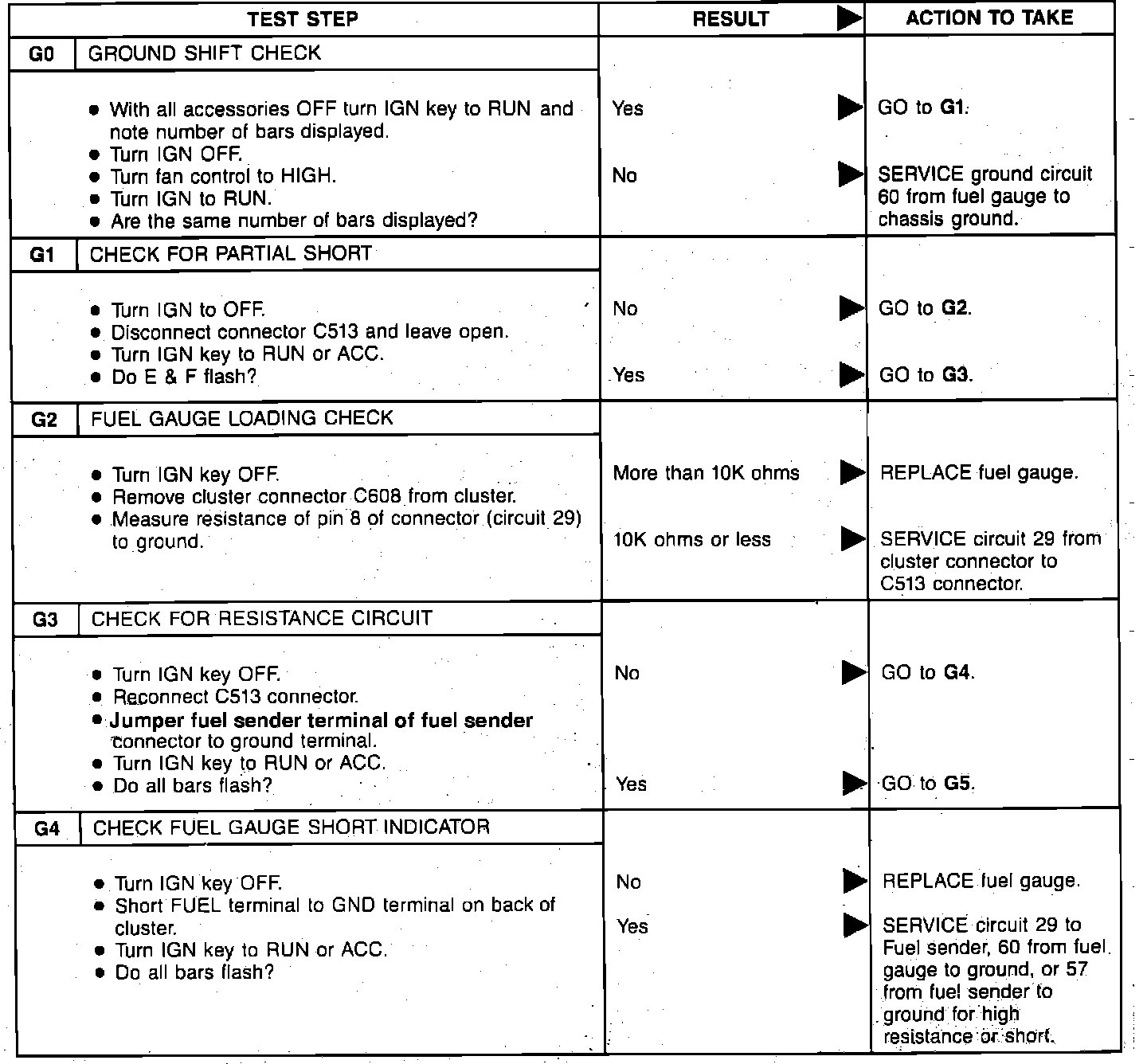

Test G0 - G4 Fuel Gauge Indication Inaccurate Or Erratic:
