Home >> Mercury >> 1983 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Fuel Gauge >> Testing and Inspection >> E and F Flash (Fuel Gauge)

E and F Flash (Fuel Gauge)

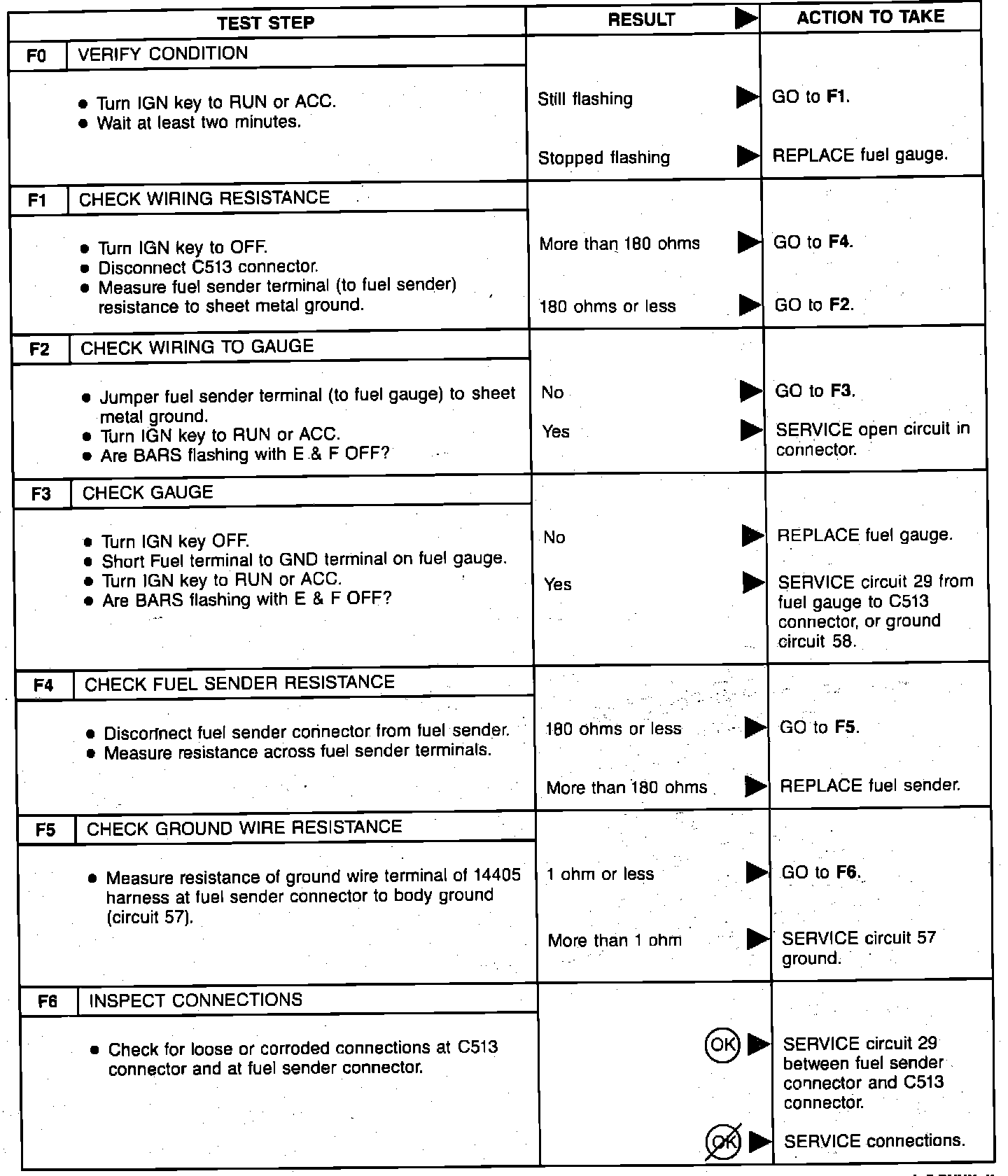

Test F0 - F6 E & F Flash (Fuel Gauge):
