Electronic Climate Control

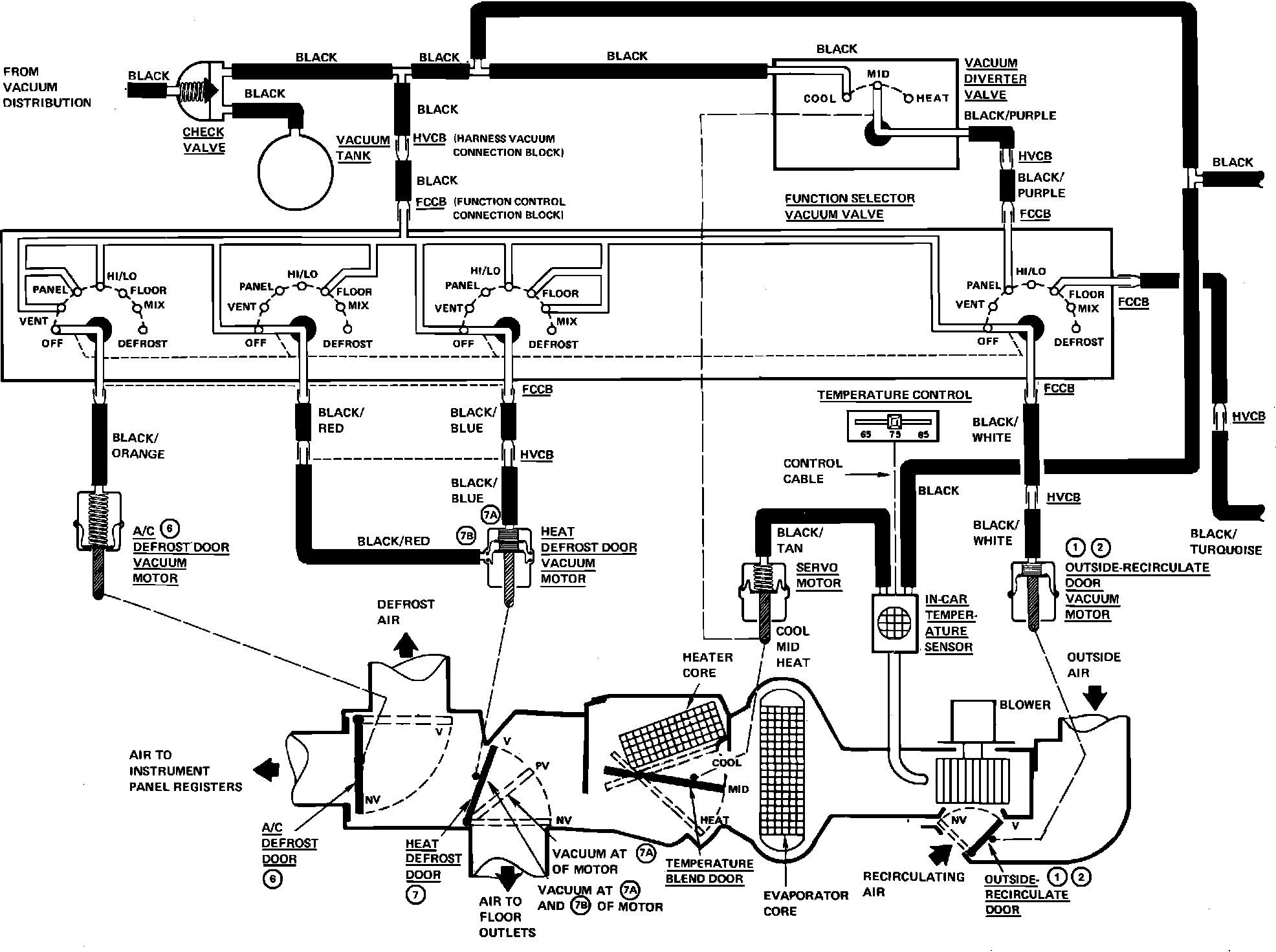

Fig. 5 Air Conditioning & Heater Vacuum Circuit. 1983-84 Cougar & Thunderbird with Automatic Temperature Control:
