Fuel Gauge/Panel Warning Indicator Less Electronic Cluster

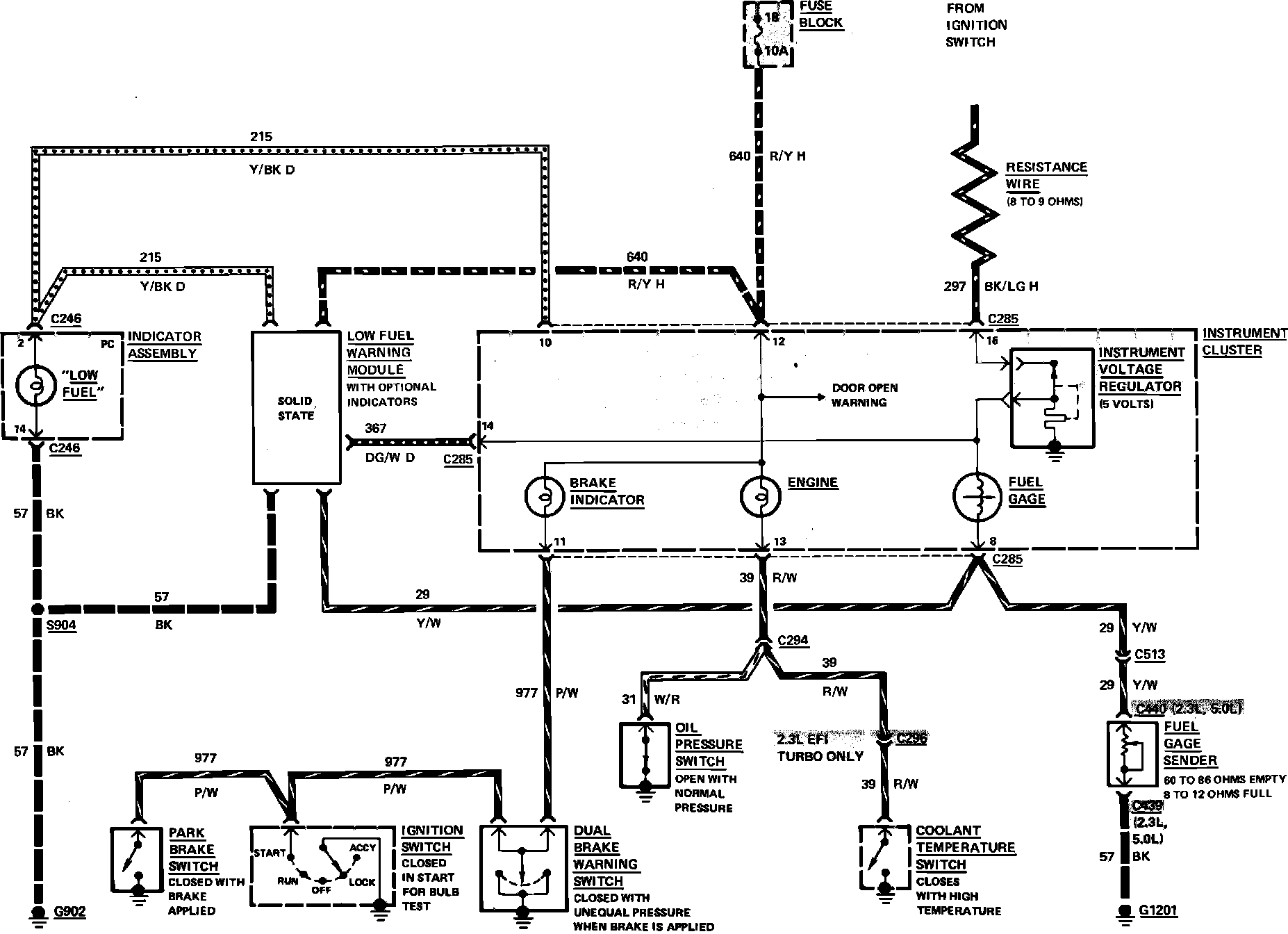

Fig. 48 Fuel Gauge & Instrument Panel Warning Indicator Wiring Circuit. 1983 Cougar & Thunderbird less Electronic Instrument Cluster:
