Lights-On & Key Warning Wiring Circuit

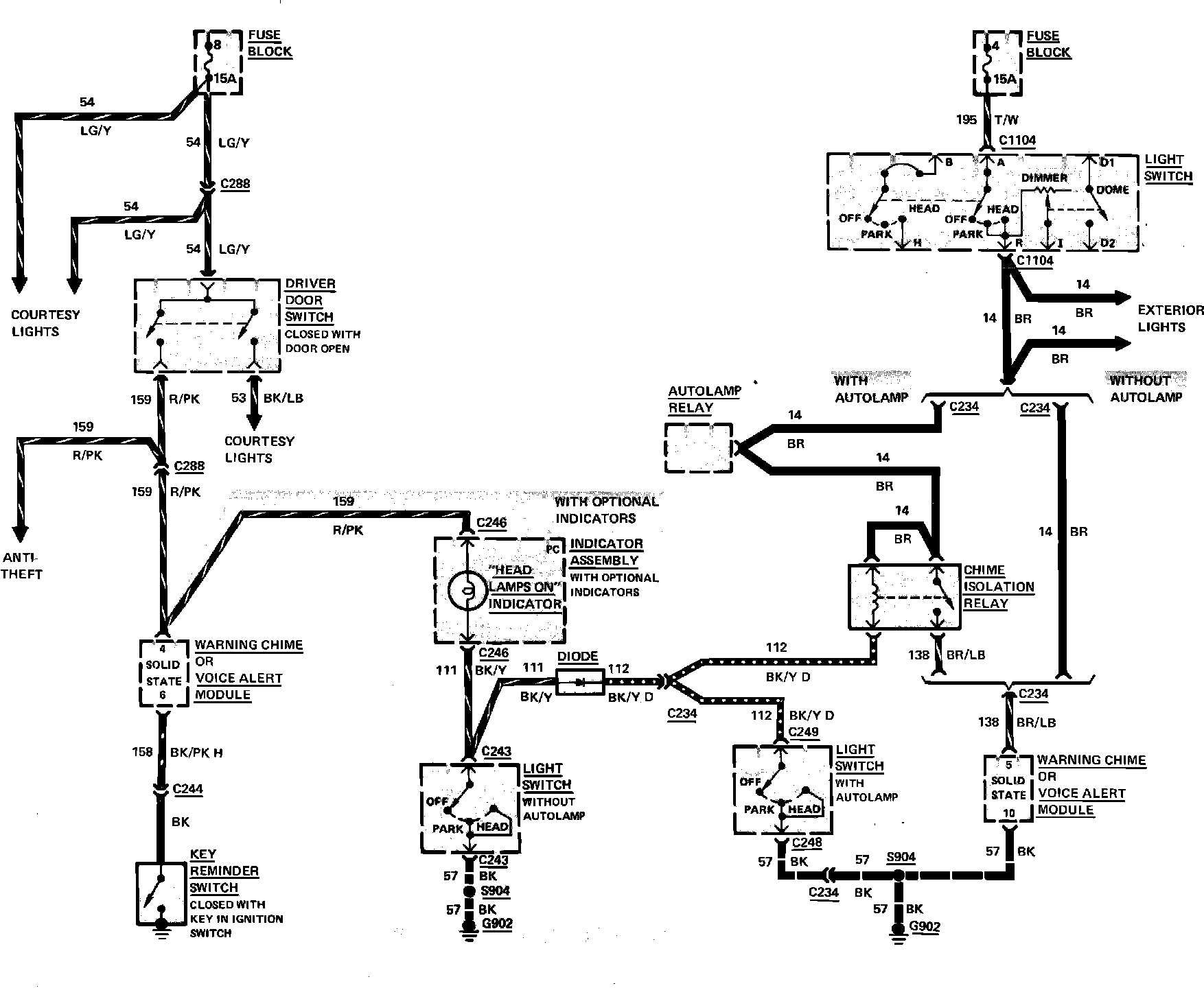

Fig. 68 Lamps On & Key Warning Wiring Circuit. 1983 Cougar & Thunderbird:
