Electronic Climate Control

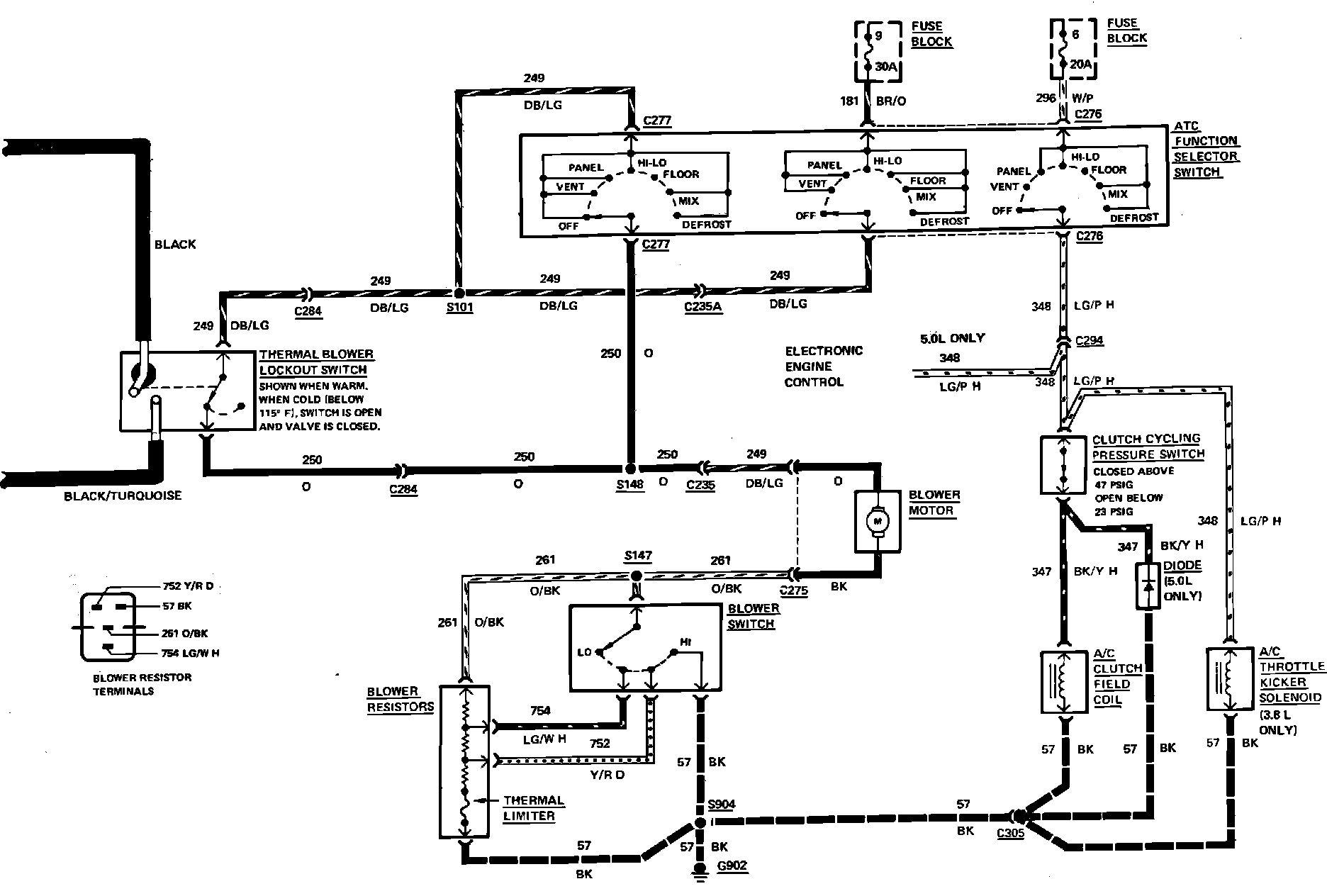

Fig. 10 Air Conditioning & Heater Wiring Circuit. 1983 Cougar & Thunderbird with Automatic Temperature Control:
