Speed Control Vacuum and Wiring Circuit

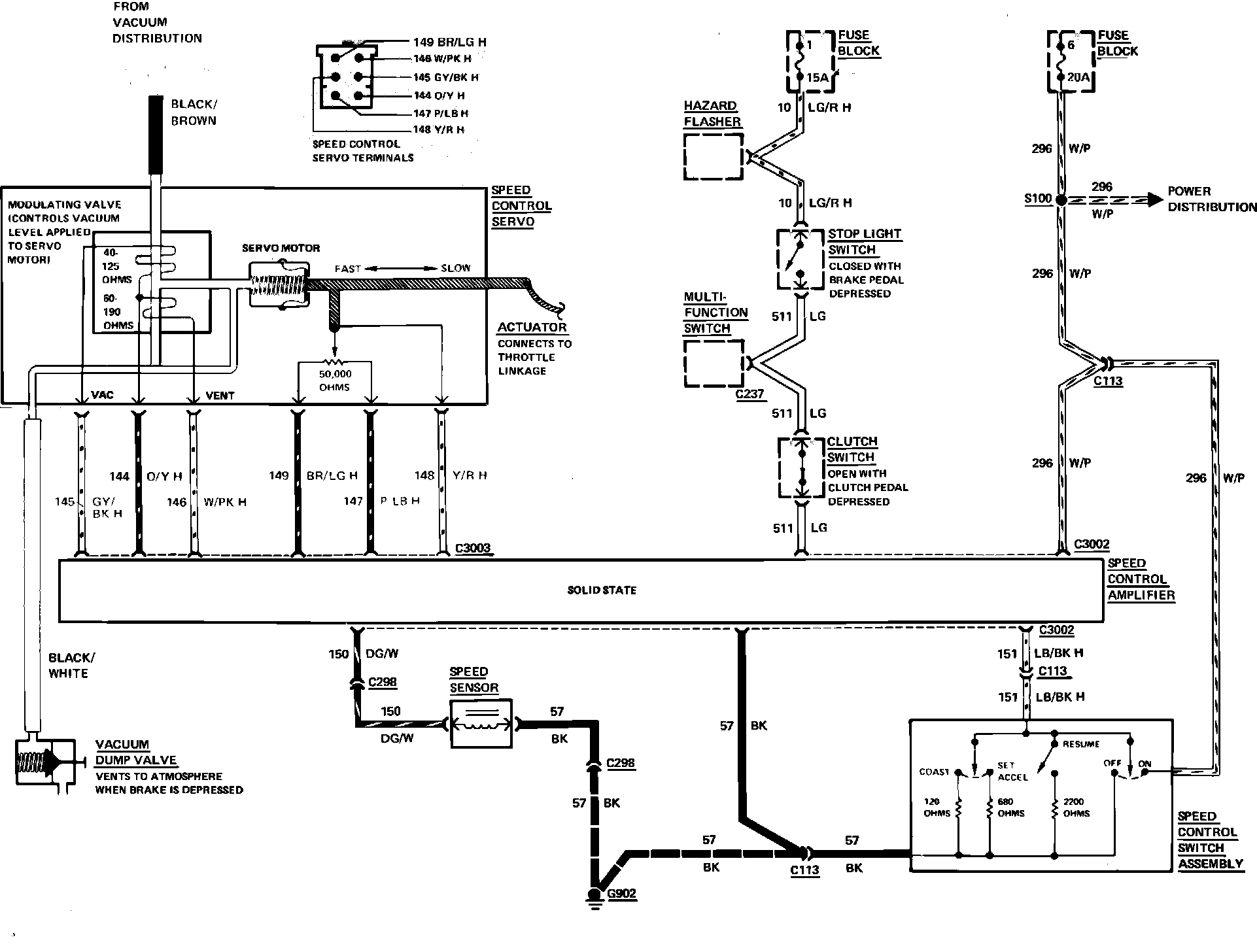

Fig. 87 Speed Control Wiring Circuit. 1983 Cougar & Thunderbird with 4 Cyl Engine:

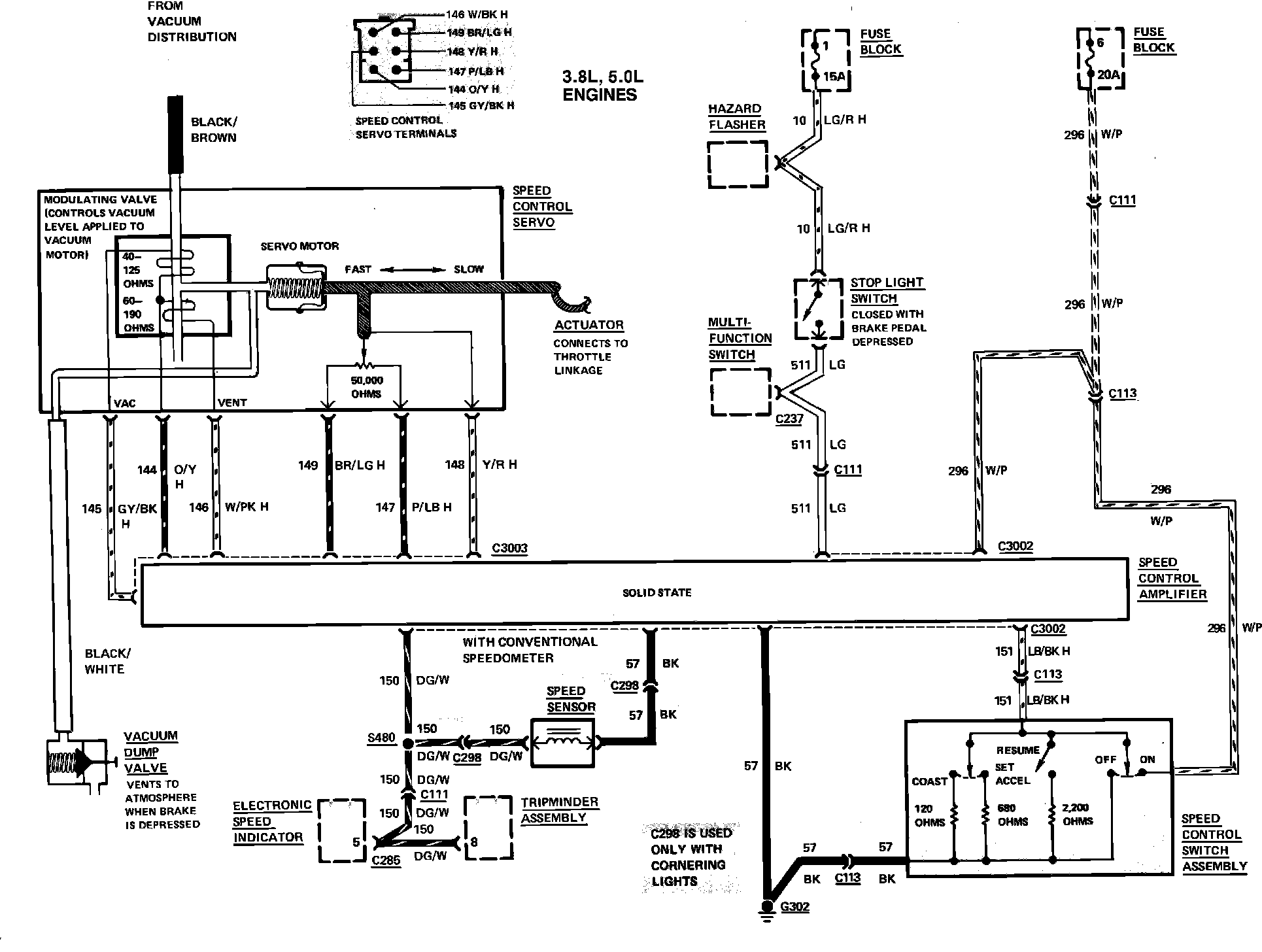

Fig. 88 Speed Control Wiring Circuit. 1983 Cougar & Thunderbird with 6 & 8 Cyl Engine:
