Home >> Mercury >> 1983 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Arm-Disarm Less Keyless Entry

Arm-Disarm Less Keyless Entry

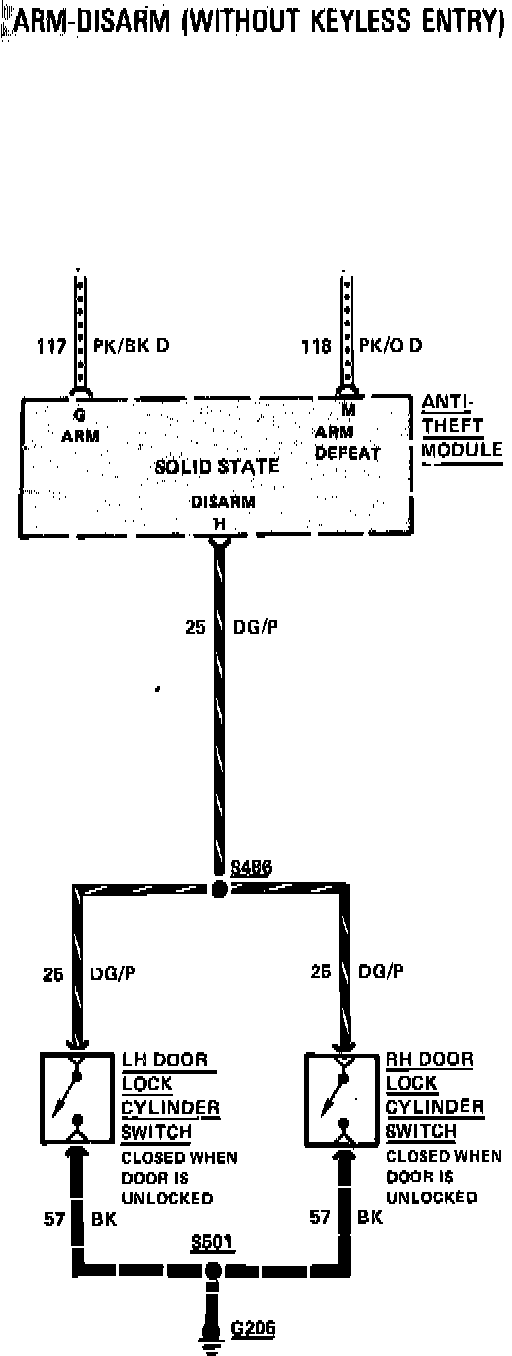

Fig. 14 Anti-Theft Arm-Disarm Wiring Circuit Less Keyless Entry System:
