Speakers

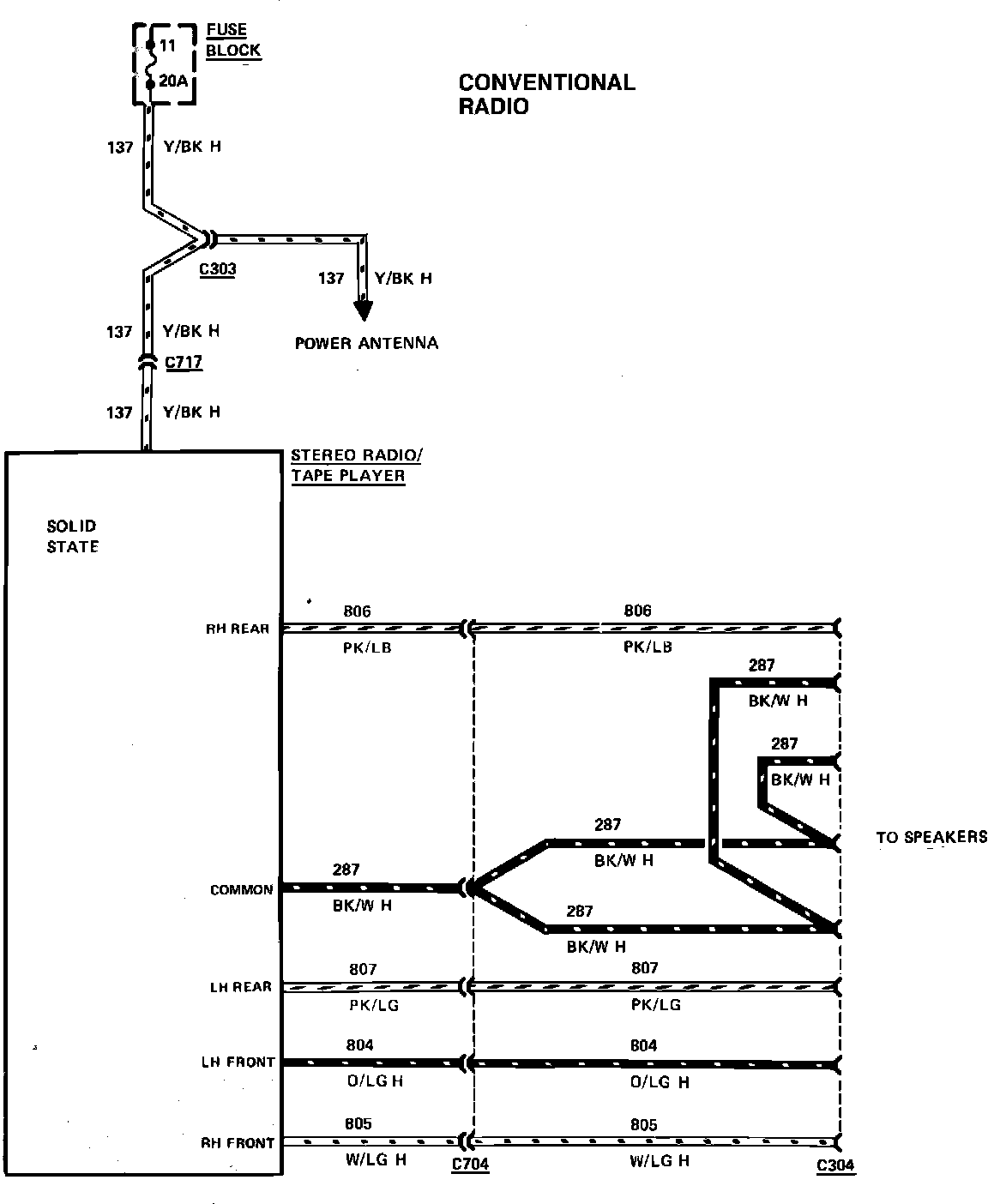

Fig. 81 Radio & Speaker Wiring Circuit (Part 1 of 2). 1983-84 Cougar & Thunderbird with Conventional Stereo Radio less Premium Sound:



Fig. 81 Radio & Speaker Wiring Circuit (Part 2 of 2). 1983-84 Cougar & Thunderbird with Conventional Stereo Radio less Premium Sound:
