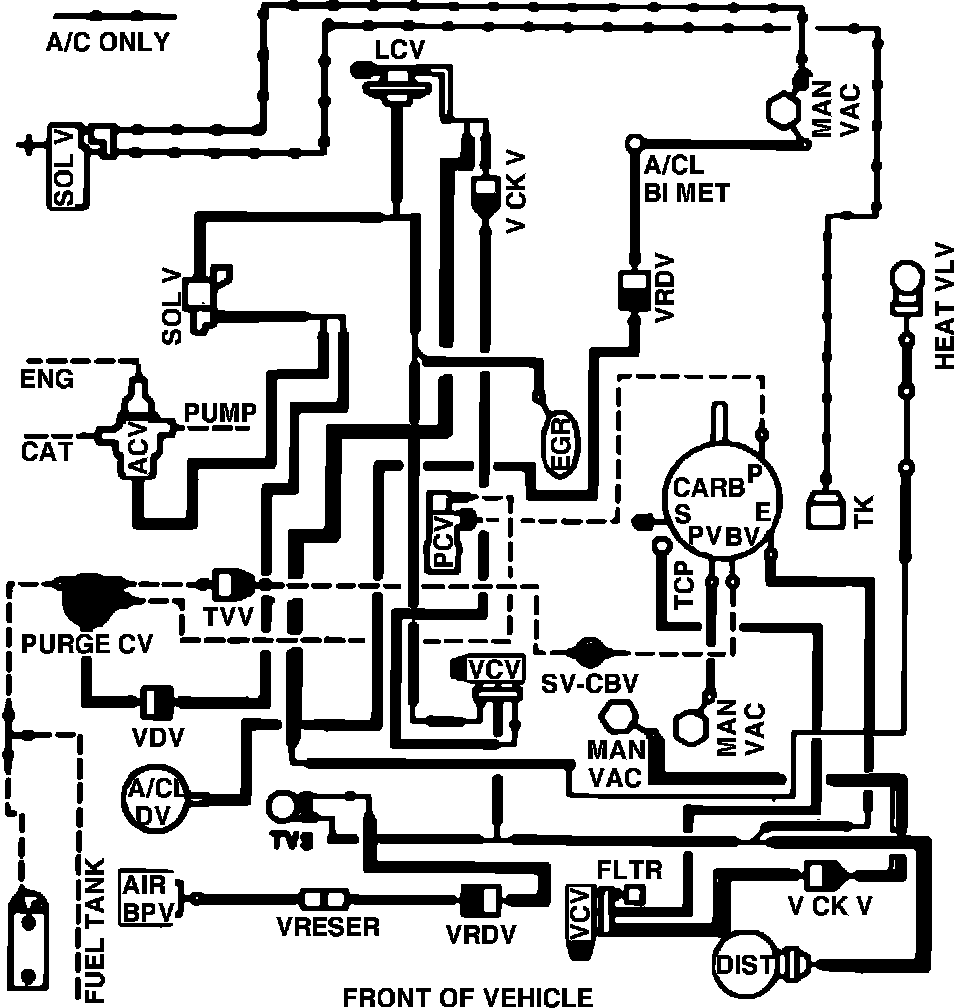

Fig. 27 Calib. Code 3-14X-R0 W/O.D. Auto. Trans. & High Alt.
Fig. 27 Calib. Code 3-14X-R0 W/O.D. Auto. Trans. & High Alt.
Vacuum hose routing:
