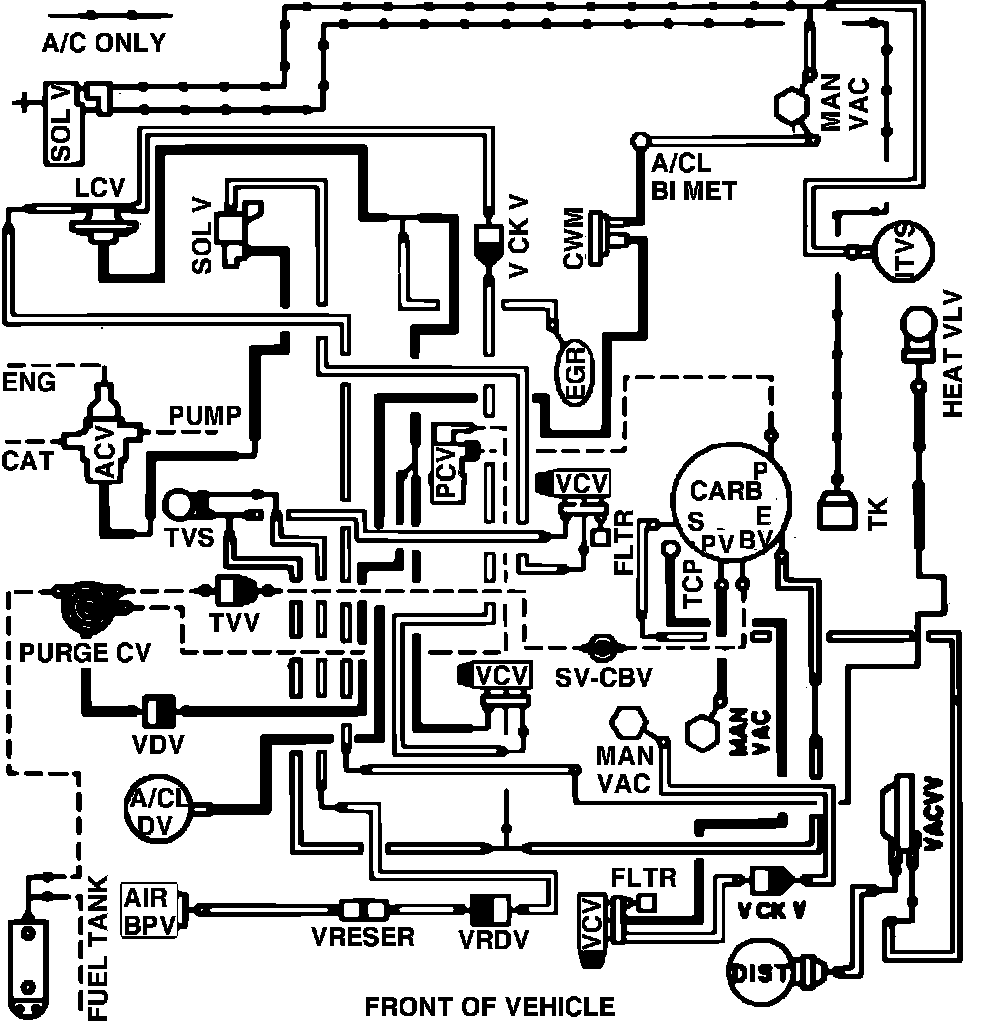

Fig. 22 Calib. Code 3-14B-R0 Fed W/O.D. Auto Trans. Exc Hi. Alt
Fig. 22 Calib. Code 3-14B-R0 Fed W/O.D. Auto Trans. Exc Hi. Alt
Vacuum hose routing:
