Electrical Diagrams

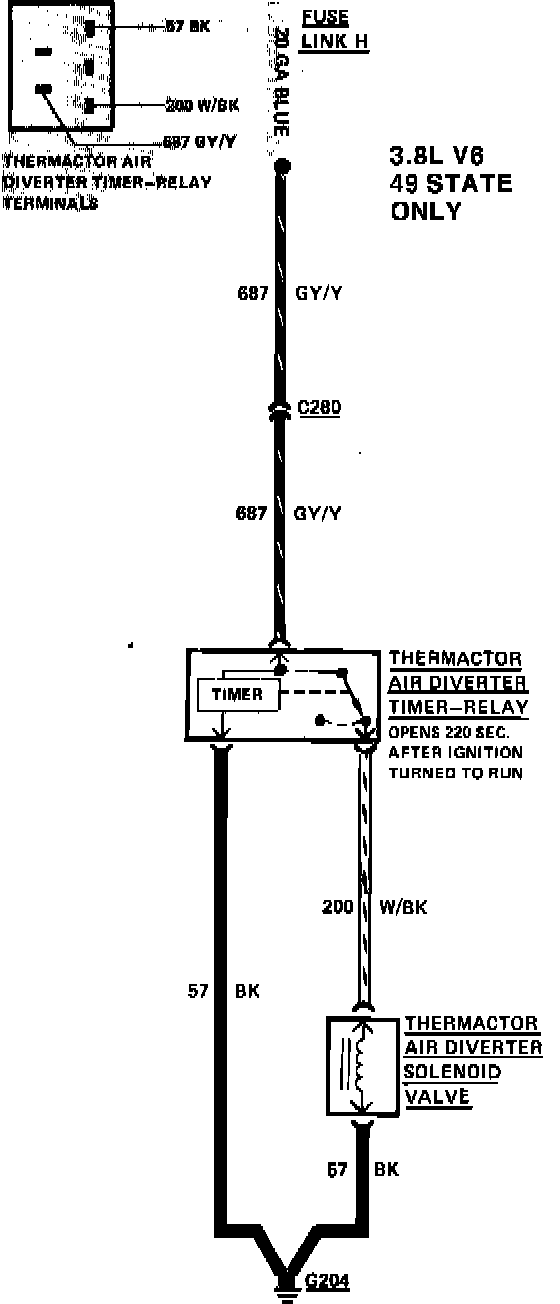

Fig. 93 Thermactor Control Wiring Circuit. 1983 Cougar & Thunderbird with 6 Cyl Engine & Federal Emissions:
