Heater/Ventilation Vacuum Diagrams

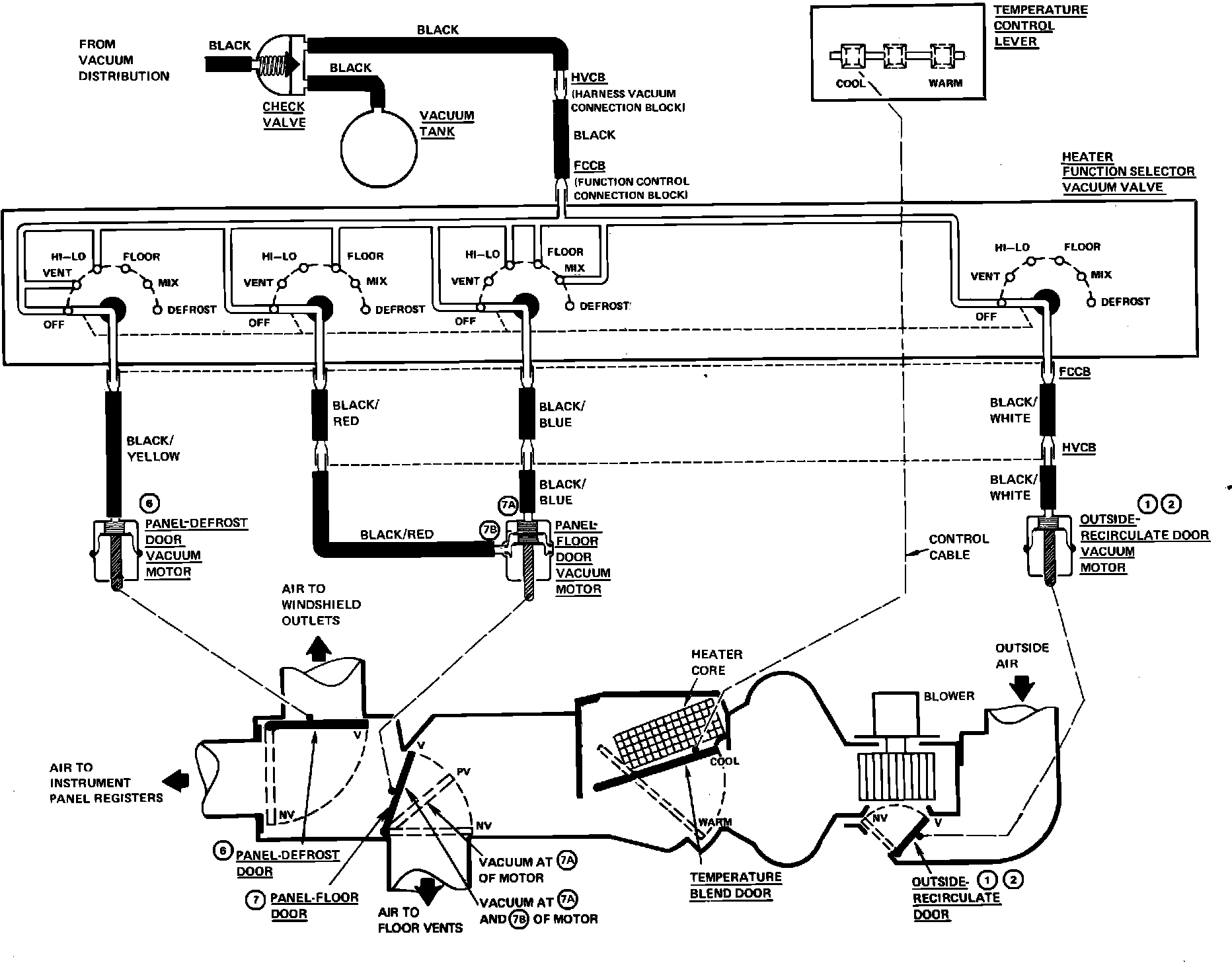

Fig. 6 Heater Vacuum Circuit. 1983-84 Cougar & Thunderbird less Air Conditioning:
