Home >> Mercury >> 1983 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> Fig. 26 Calib. Code 3-14Q-R01 Calif.

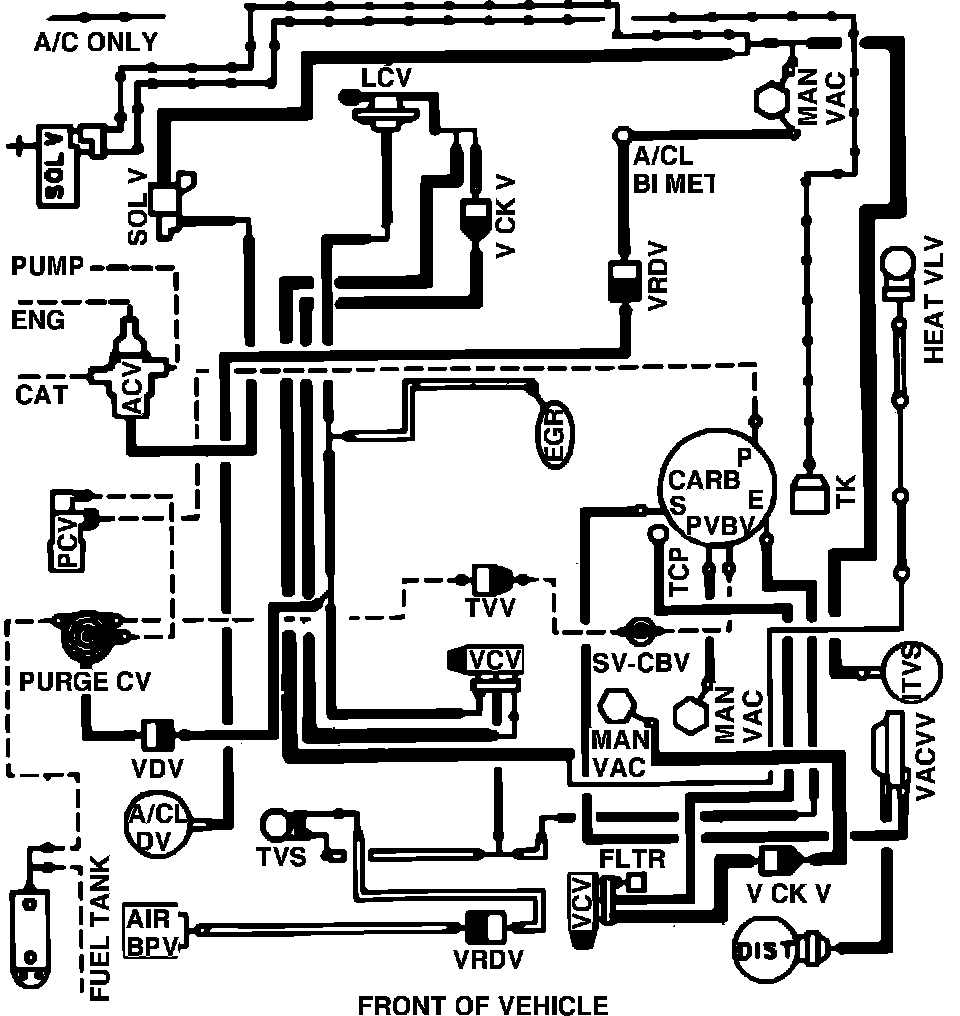

Fig. 26 Calib. Code 3-14Q-R01 Calif.

Vacuum hose routing:
