Home >> Mercury >> 1983 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Fuel Delivery and Air Induction >> System Diagram

System Diagram

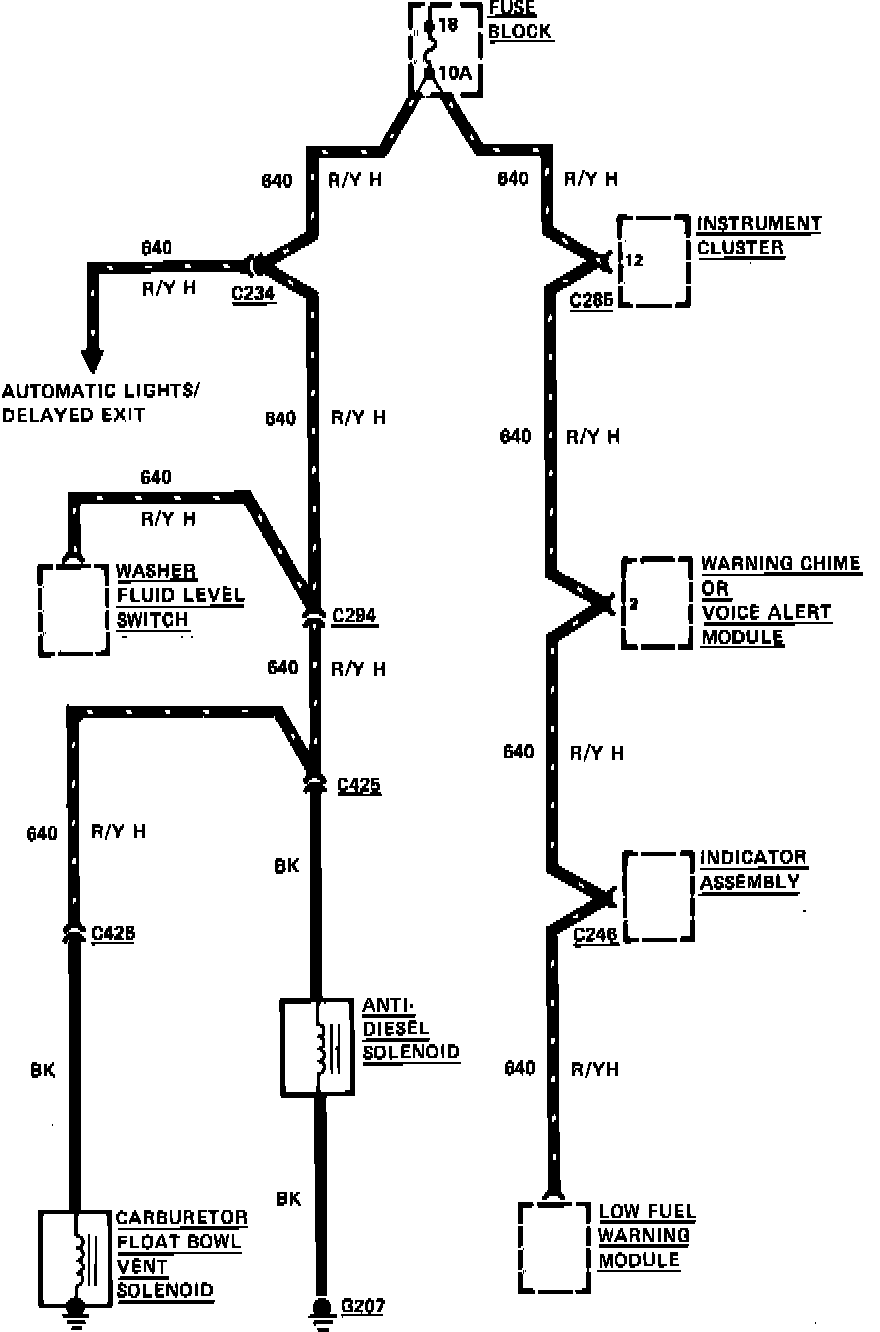

Fig. 21 Carburetor Wiring Circuit. 1983 Cougar & Thunderbird:
