Vehicle Speed Sensor: Locations

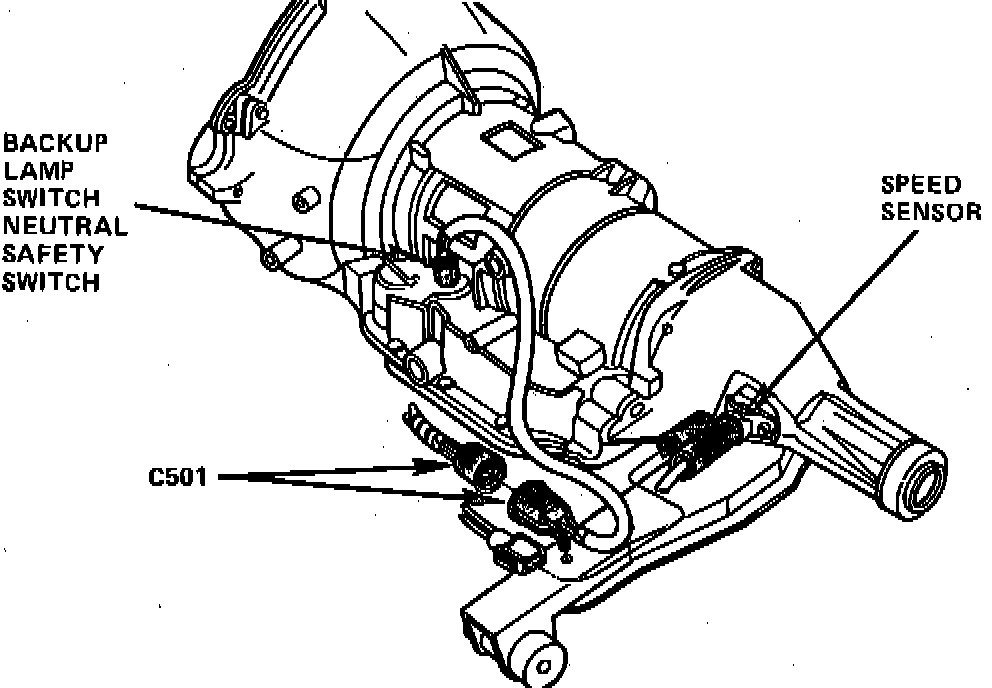

LH Side Of Automatic Overdrive Transmission.:

LH Side Of Manual Transmission.:

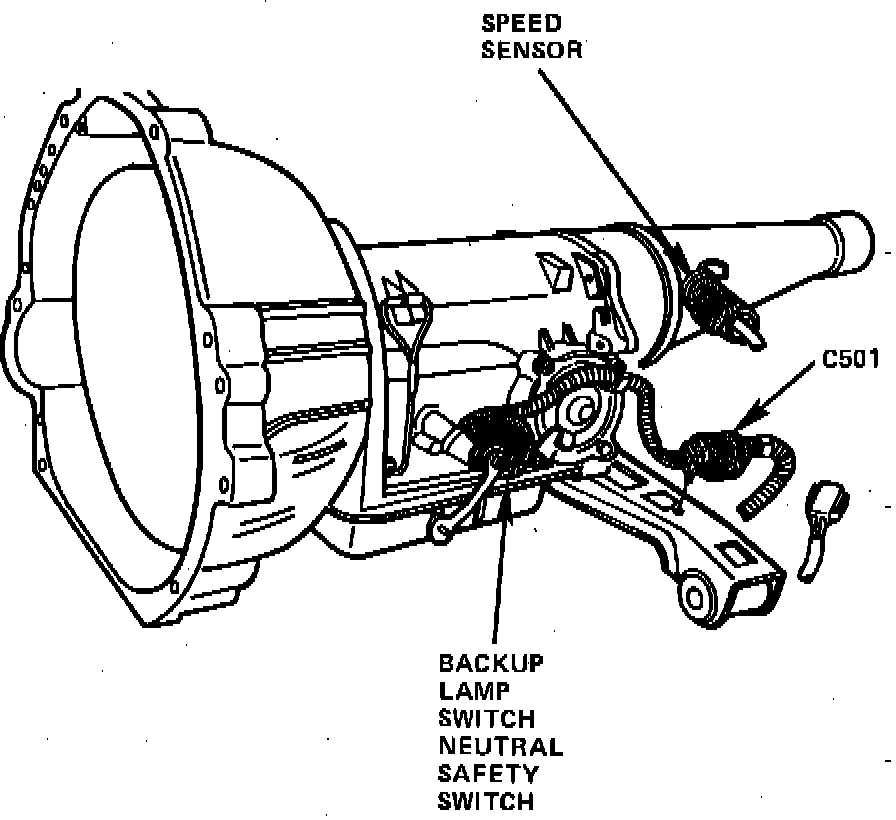

LH Side Of C-5 Automatic Transmission.:

Lower LH Side Of Transmission

Applicable to: 1983-85 Models

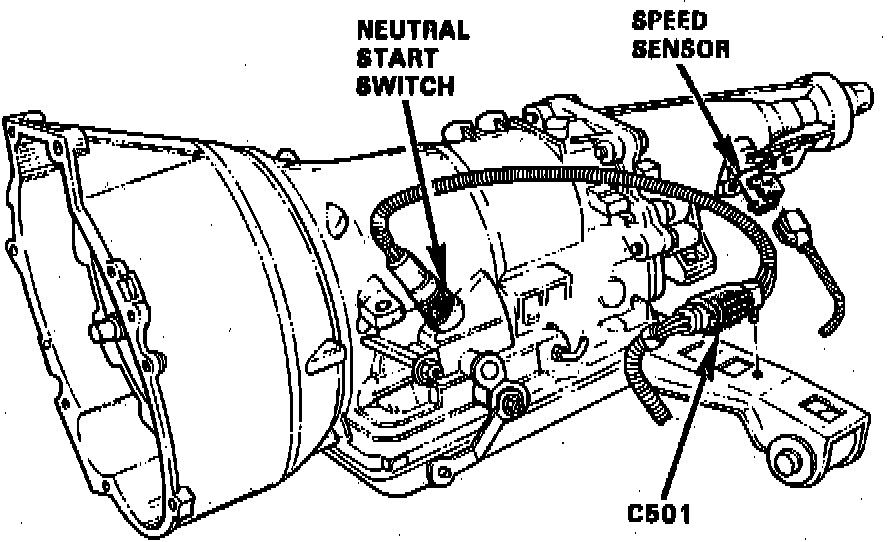

LH Side Of C-3 Automatic Transmission.:

Lower LH Side Of Transmission

Applicable to: 1985 Models
