FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1983
>>
Cougar/XR7 L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Computers and Control Systems
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
Coolant Temperature Sensor/Switch (For Computer): Locations

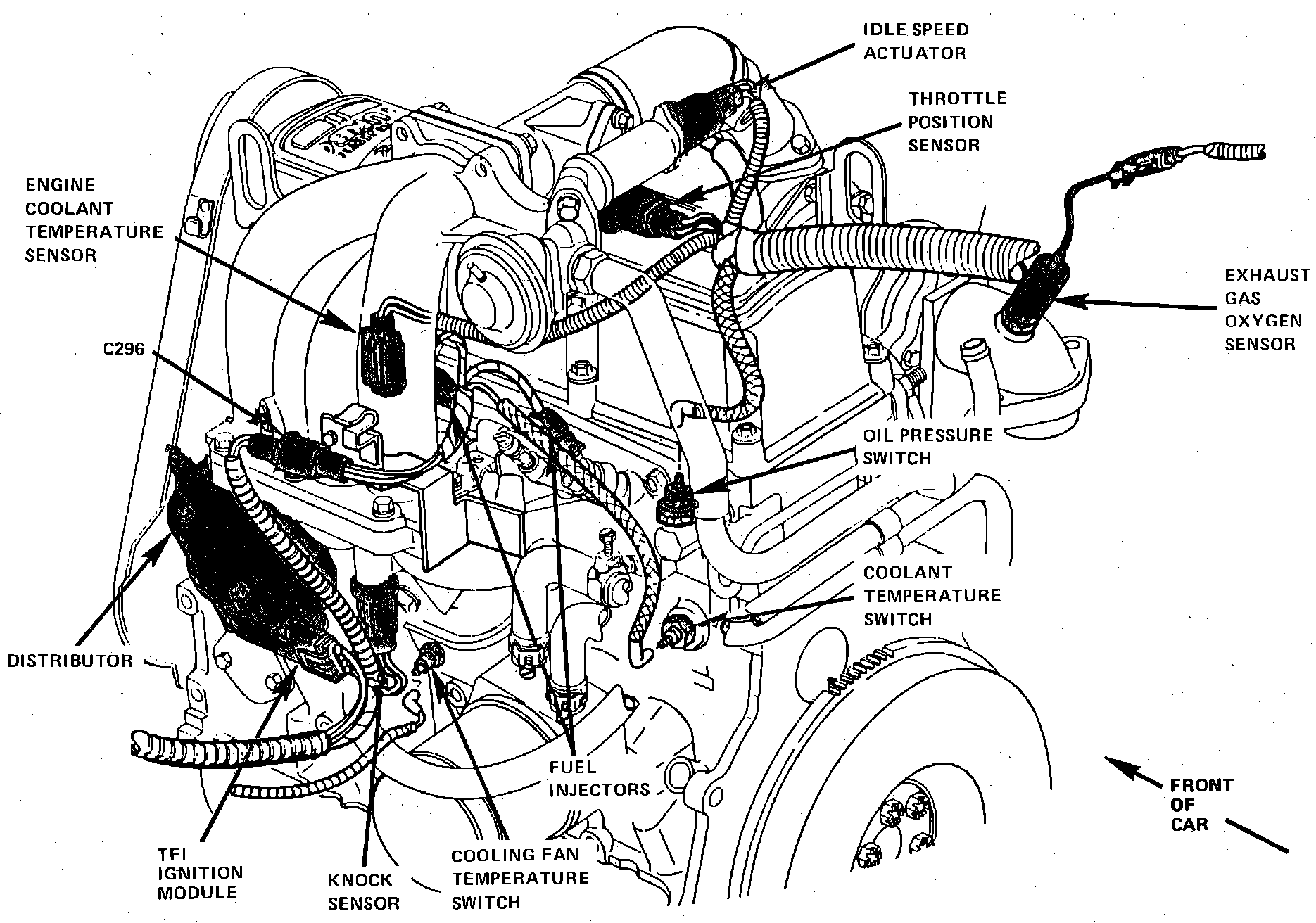

LH Side Of Engine.:
LH Side Of Engine
Applicable to: 1983 4-140/2.3L Engine
