Fuel Pump Relay: Locations

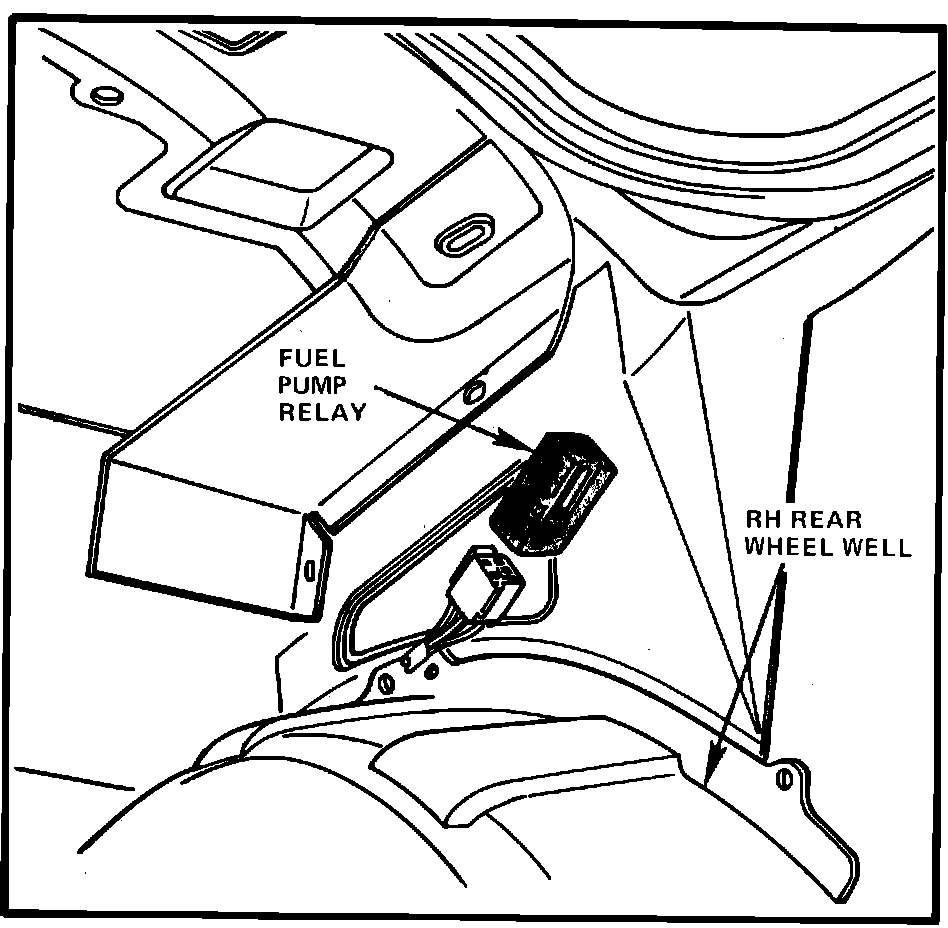

RH Rear Wheelwell.:




Above RH Rear Wheelwell

Applicable to: 1984-85 Models
