Home >> Mercury >> 1983 >> Cougar/XR7 L4-140 2.3L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> 3-05E - R10

3-05E - R10

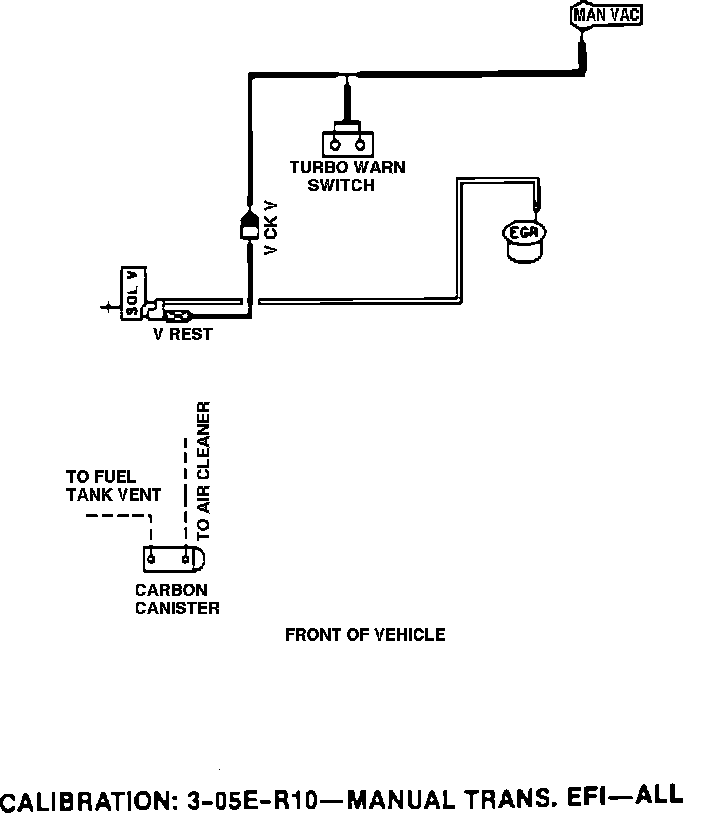

Calibration: 3-05E-R10:
