Mercury
>>
1983
>>
Cougar/XR7 L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>

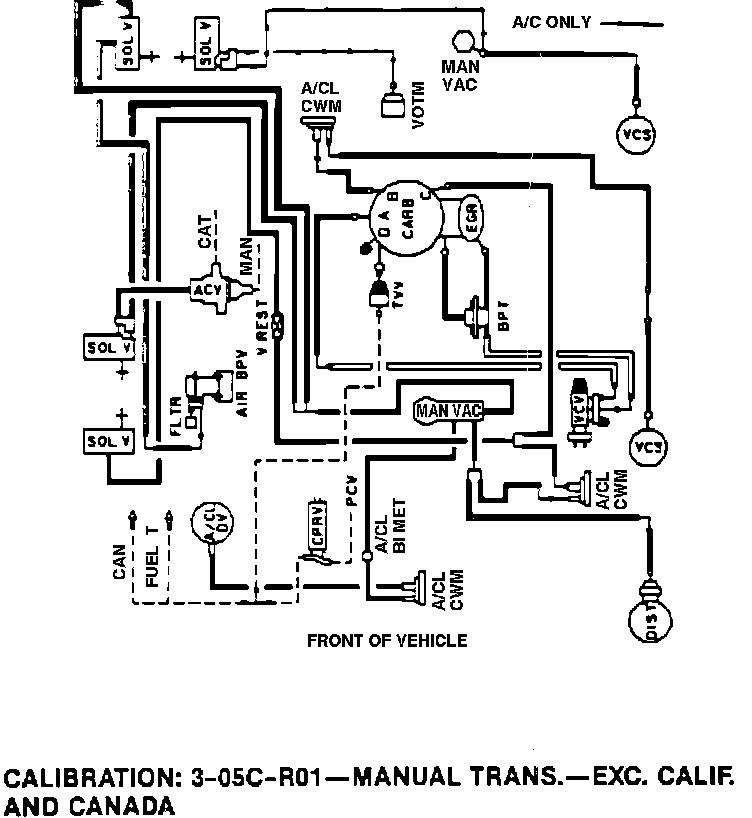

Vacuum and Vapor Hose Diagrams
>>
3-05C - R01
3-05C - R01
Calibration: 3-05C-R01:
