Cougar/XR7 L4-140 2.3L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Reading and Clearing Diagnostic Trouble Codes
>>

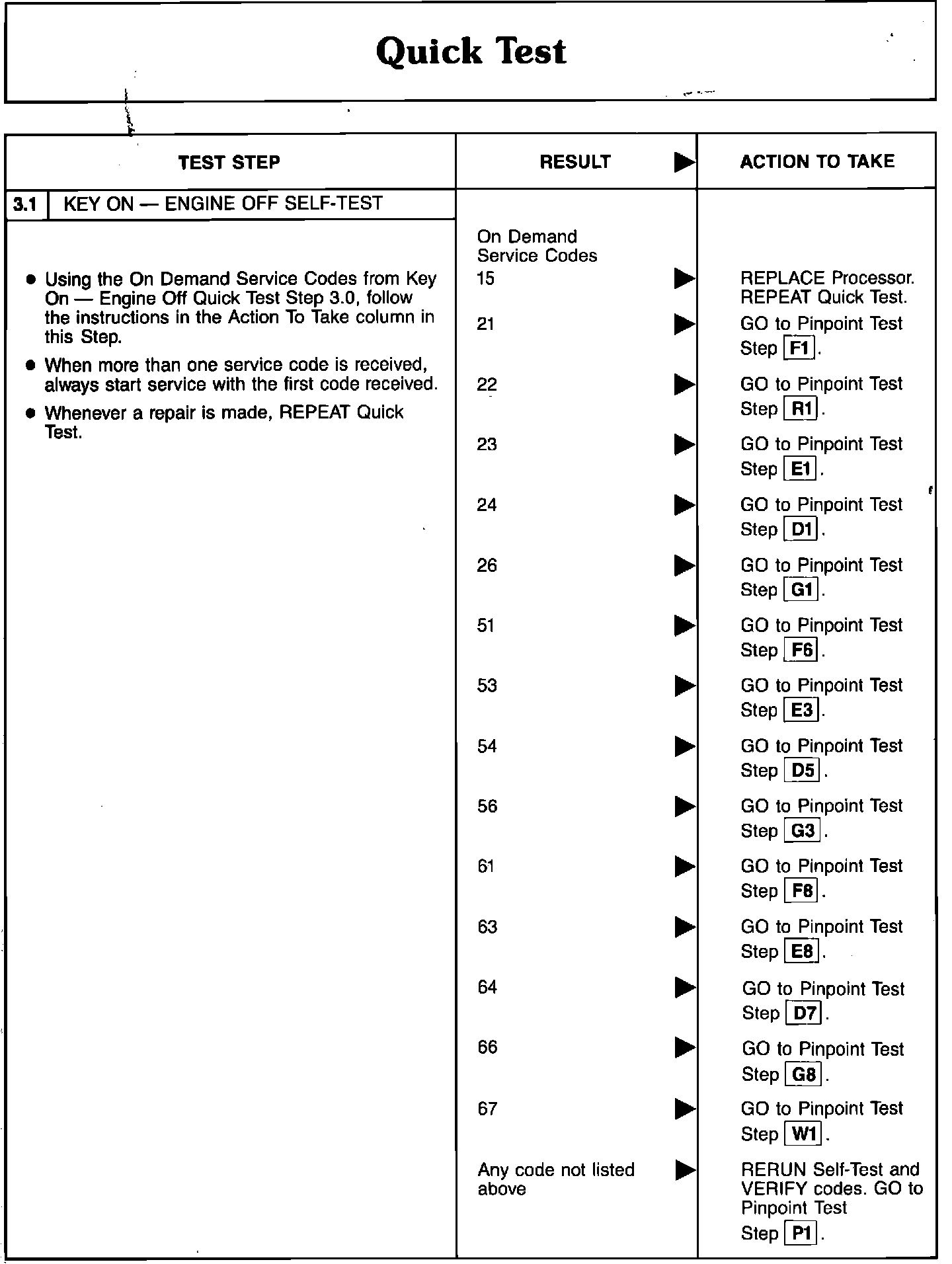

3.1 - Key On/Engine Off Self-Test
3.1 - Key On/Engine Off Self-Test
KOEO Self Test And Service Codes 15 - 67:
