Idle Speed Vacuum Solenoid Valve: Locations

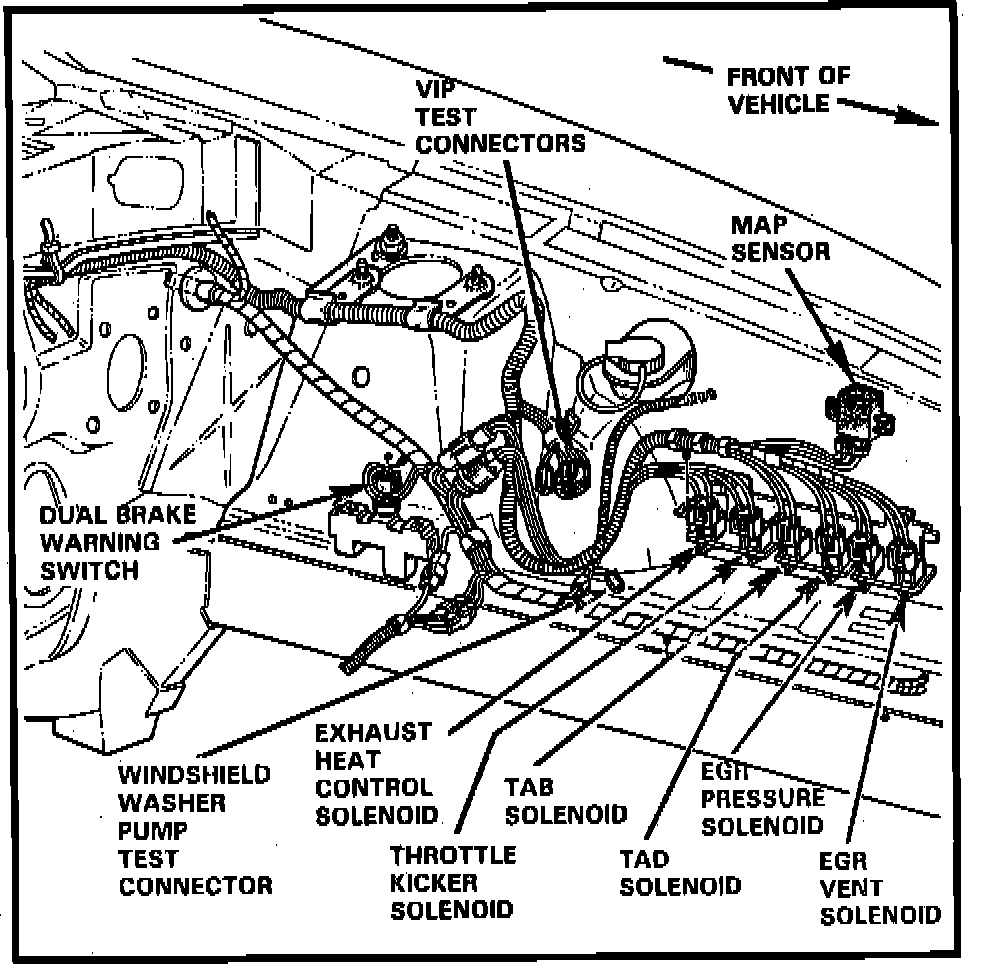

LH Fender Apron.:
On LH Shock Tower
Applicable to: 1985 V8-302/5.0L Engine
