Wiring Diagrams

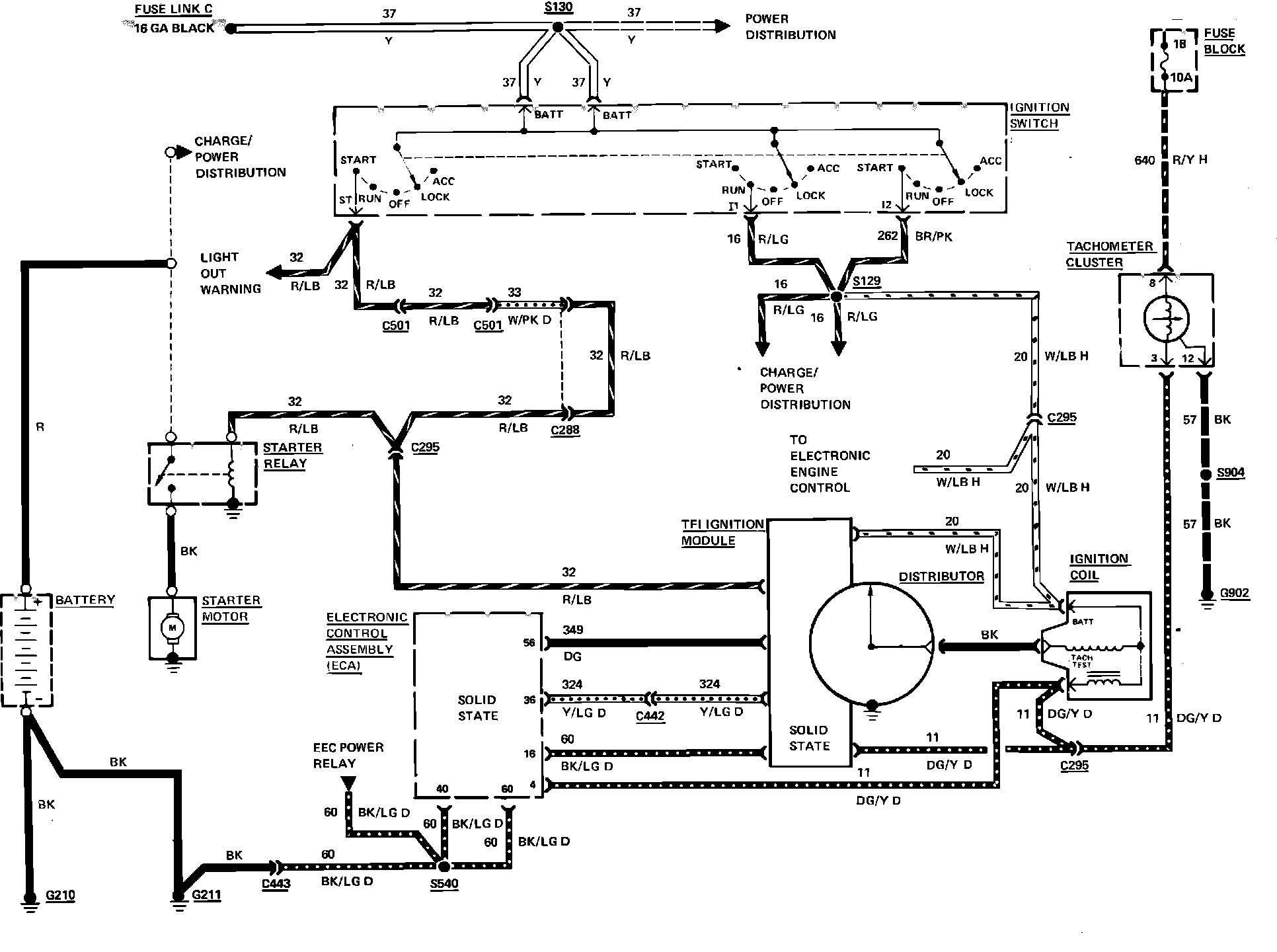

Fig. 56 Ignition, Starting System & Tachometer Wiring Circuit. 1983 Cougar & Thunderbird with 4 Cyl Engine:
