Home >> Mercury >> 1983 >> Colony Park V8-302 5.0L VIN F TBI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Junction Block Wiring Circuit

Junction Block Wiring Circuit

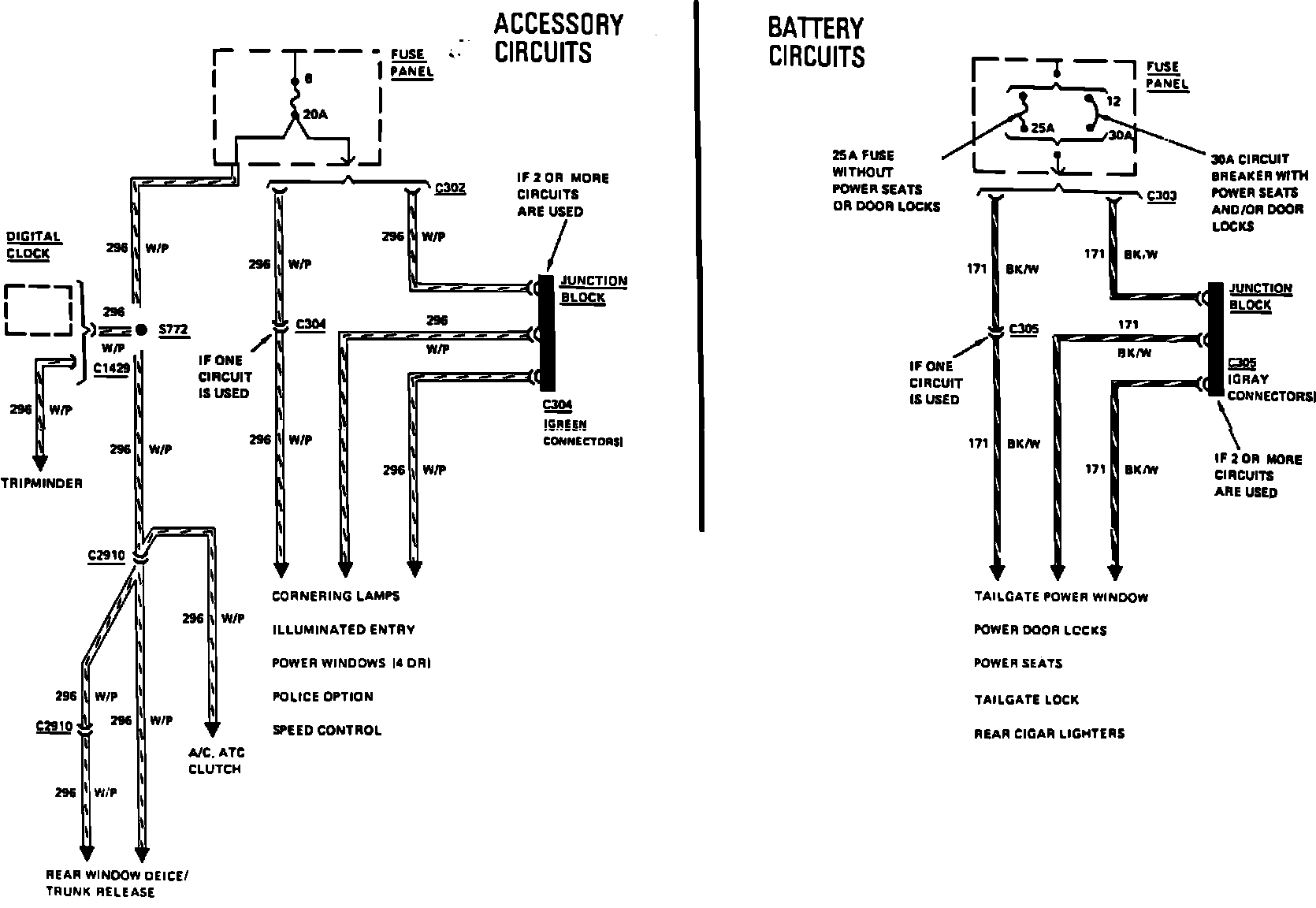

Fig. 41 Junction Block Wiring Circuit. 1983 Crown Victoria & Grand Marquis:
