Home >> Mercury >> 1983 >> Colony Park V8-302 5.0L VIN F TBI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Charging System

Charging System

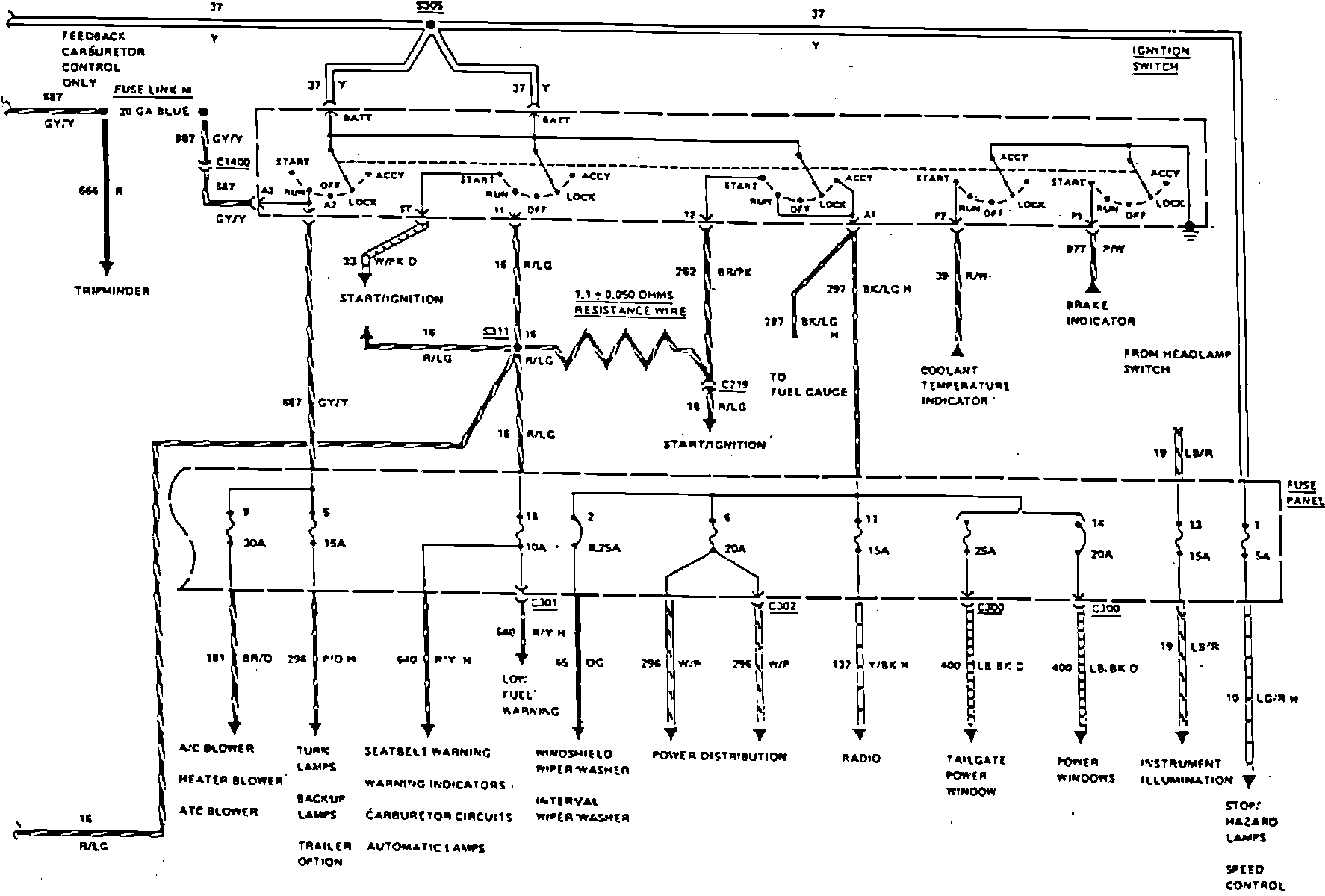

Fig. 14 Charging System & Power Distribution Wiring Circuit (Part 1 of 2). 1983 Crown Victoria & Grand Marquis:

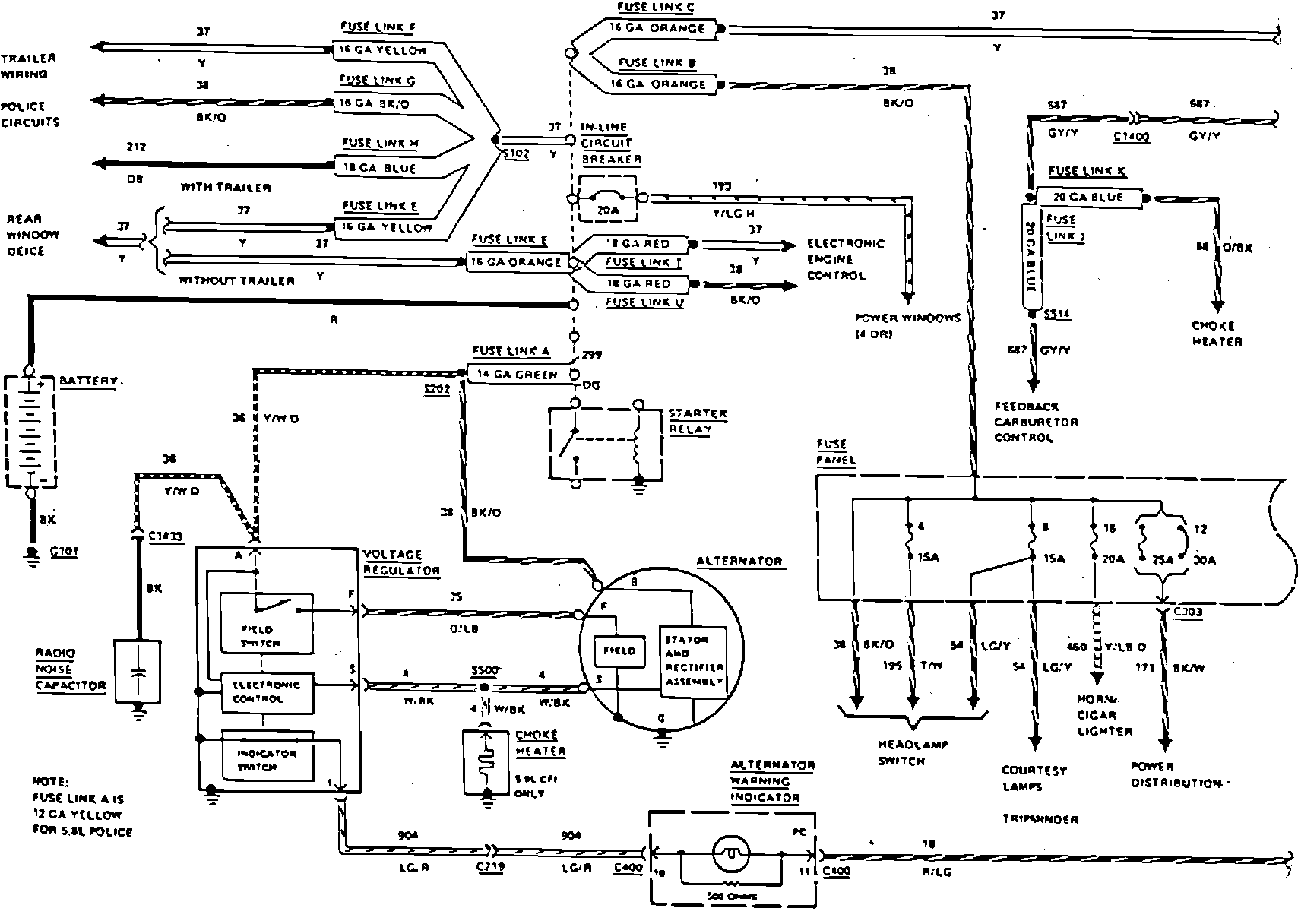

Fig. 14 Charging System & Power Distribution Wiring Circuit (Part 2 of 2). 1983 Crown Victoria & Grand Marquis:
