Knock Sensor: Locations

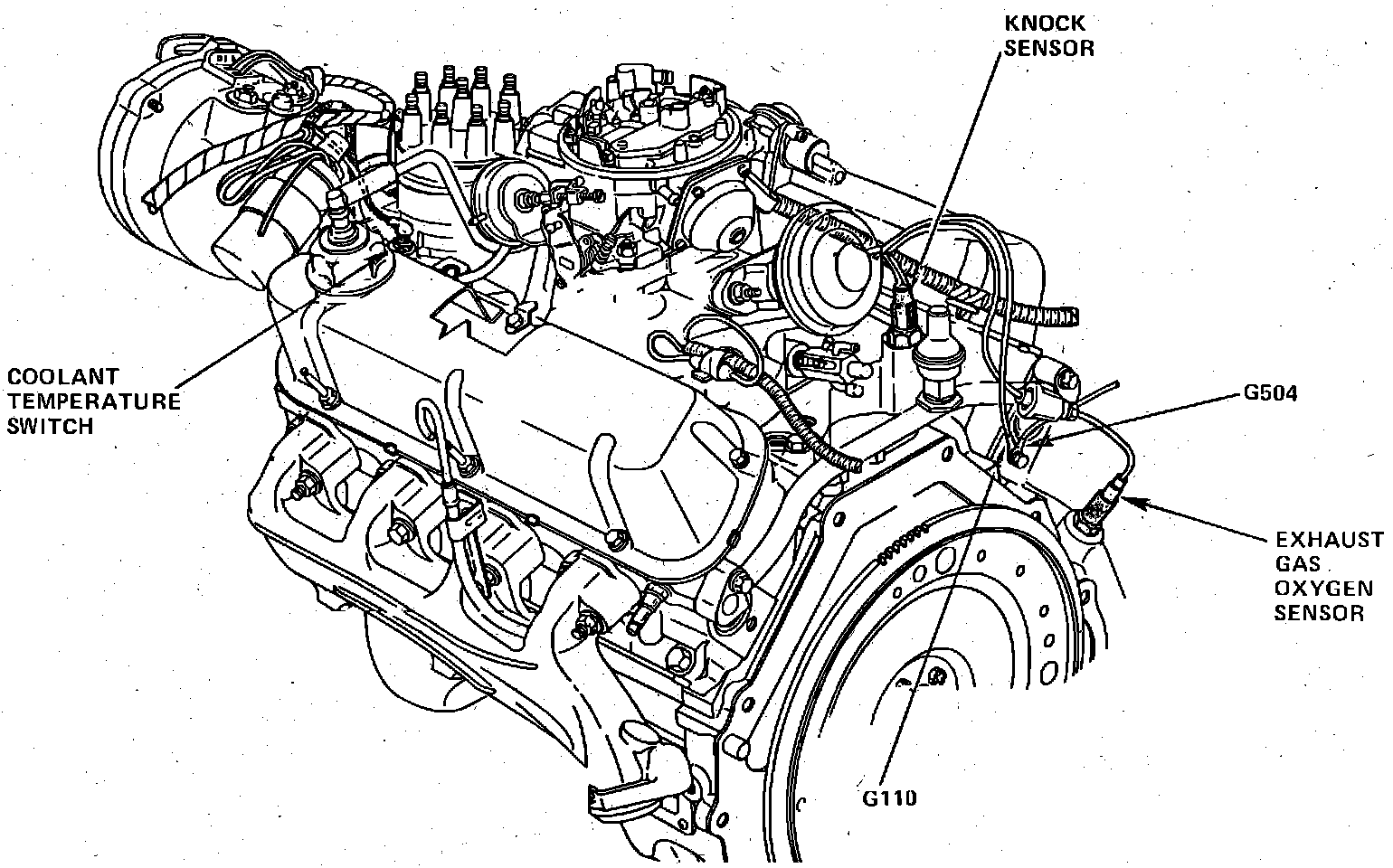

LH Top Of V8-350 Engine w/MCU.:




Top Of Engine, Right Of Carburetor

Applicable to: 1983
