Home >> Mercury >> 1983 >> Colony Park V8-302 5.0L VIN F TBI >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams >> Wiring Diagrams

Wiring Diagrams

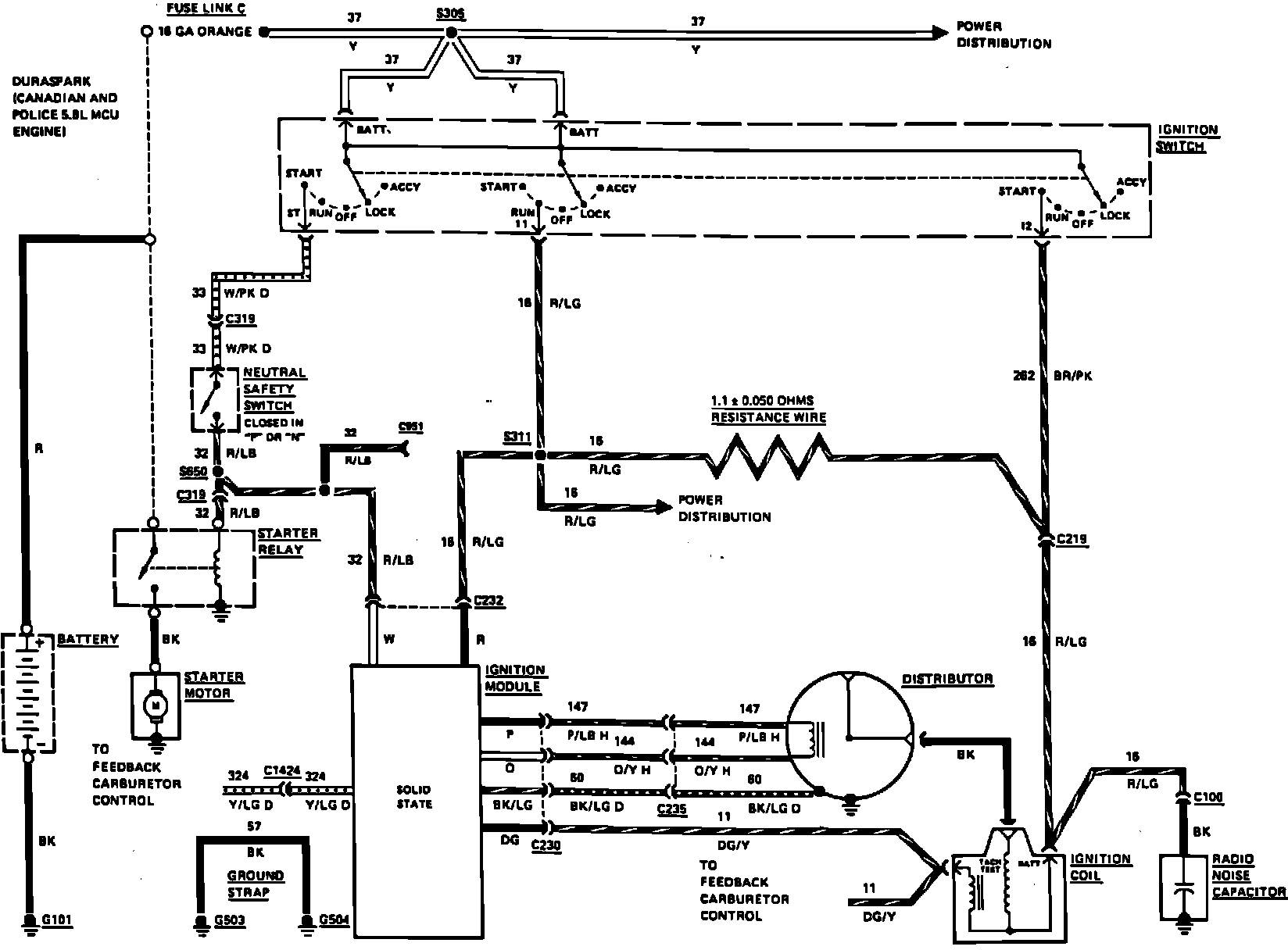

Fig. 34 Ignition & Starting (Part 1 of 2):



Fig. 34 Ignition & Starting (Part 2 of 2):
