Brake, Oil, Coolant and Engine Warning

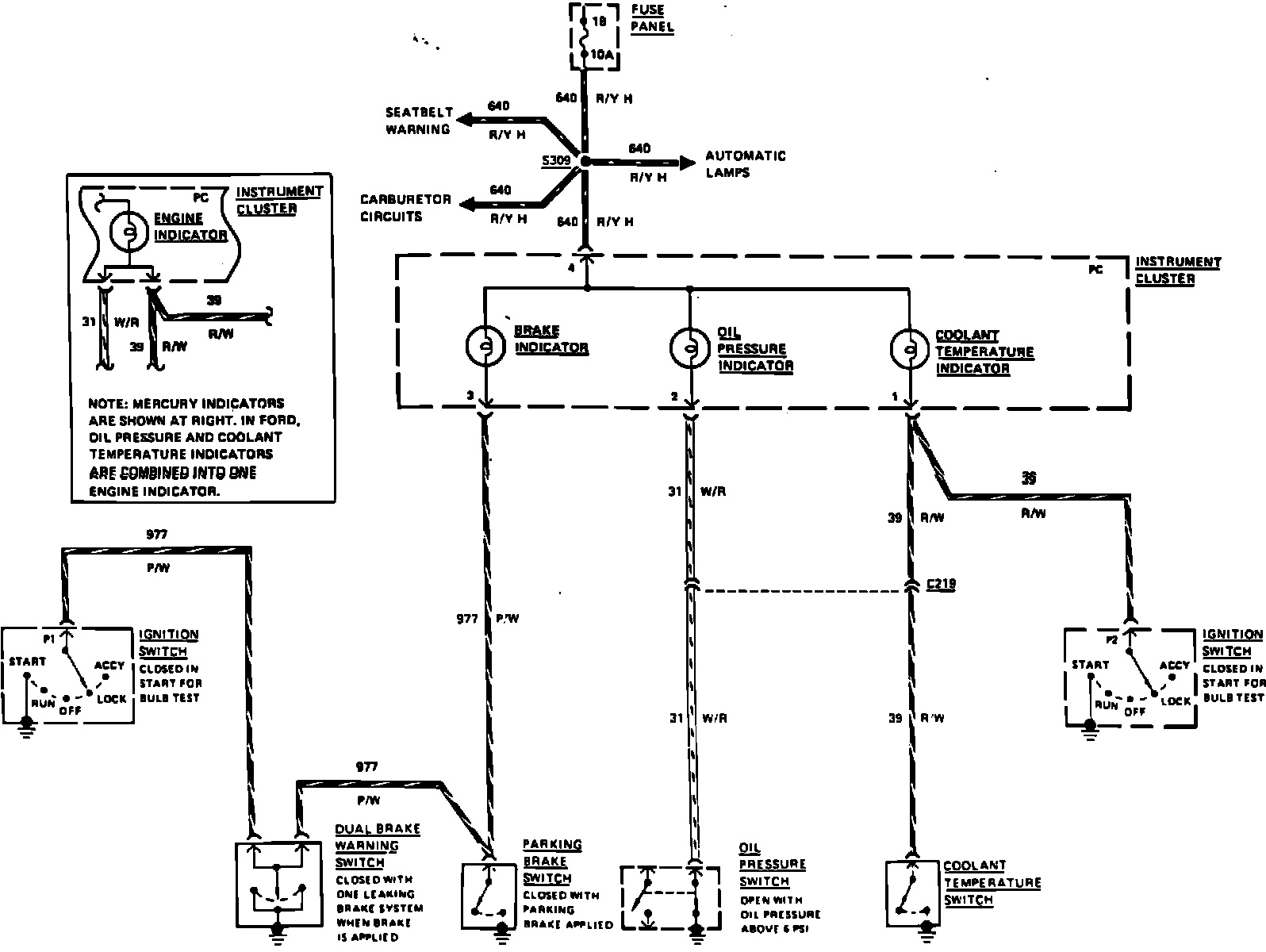

Fig. 39 Instrument Panel Warning Lamp Circuit. 1983 Crown Victoria & Grand Marquis:
