Cigarette Lighter

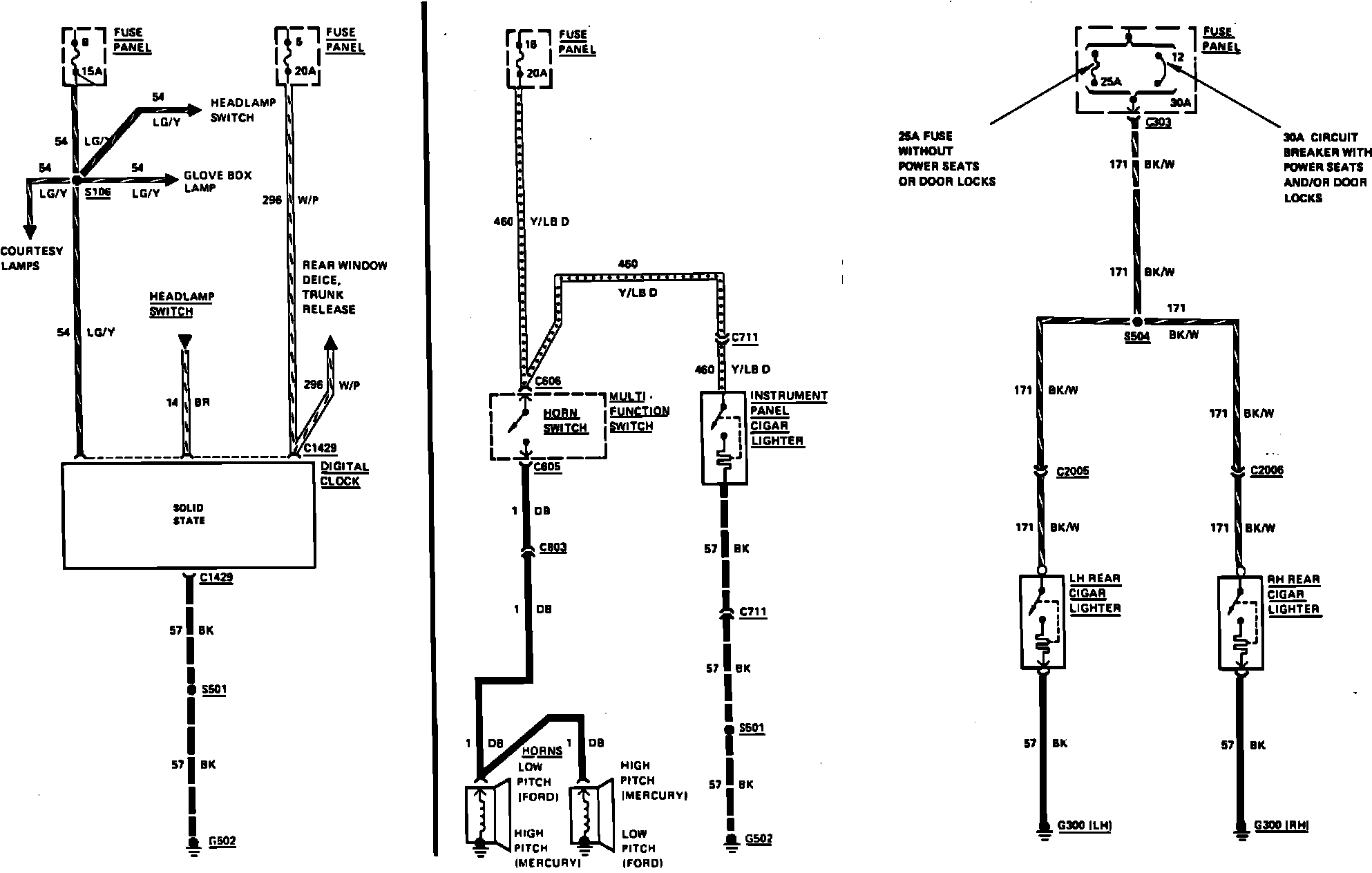

Fig. 32 Horn, Lighters & Clock Wiring Circuits. 1983 Crown Victoria & Grand Marquis:
