Audible Warning Device
WIRING SCHEMATIC:

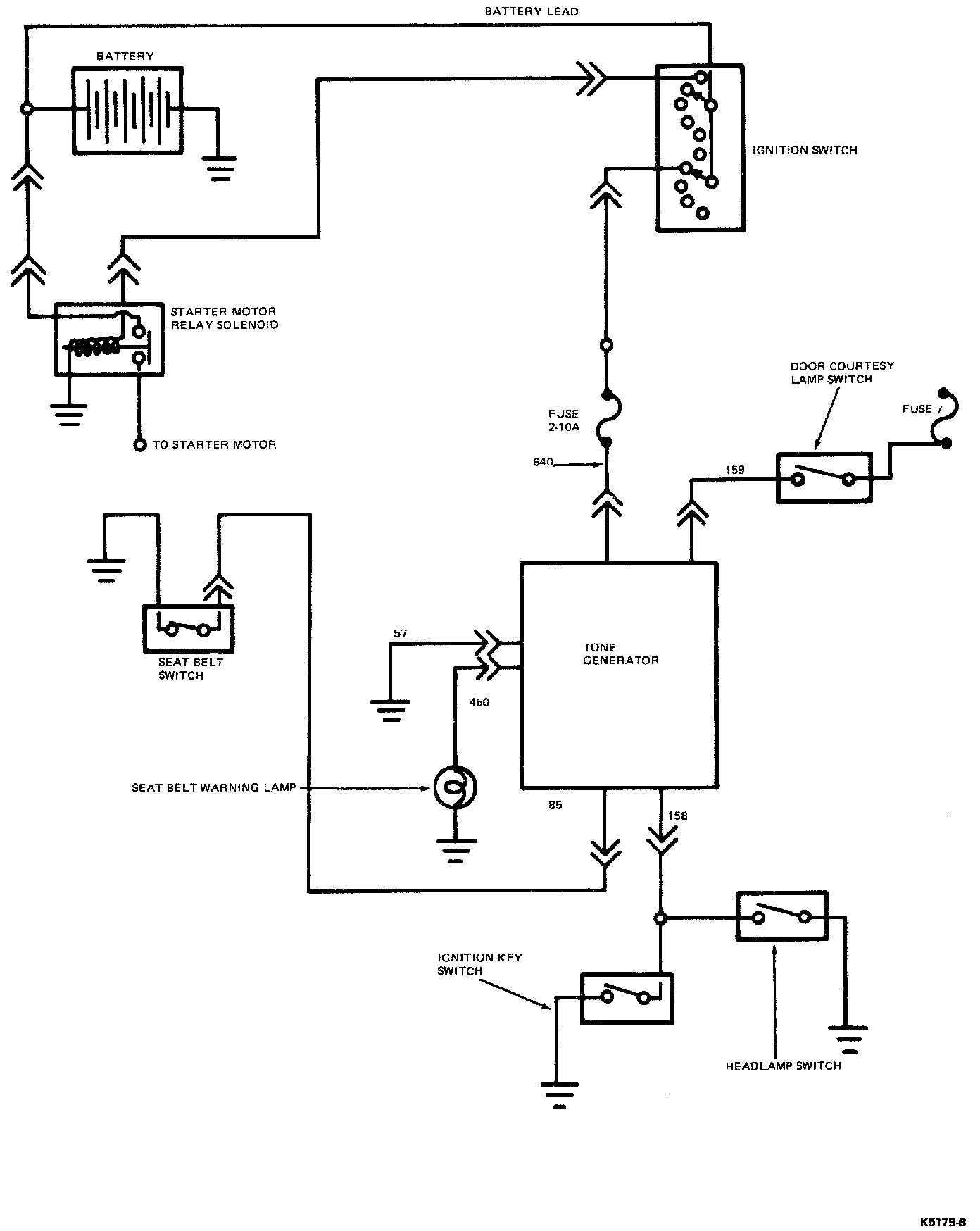

Tone Generator Warning System:
RELATED WIRING DIAGRAMS:

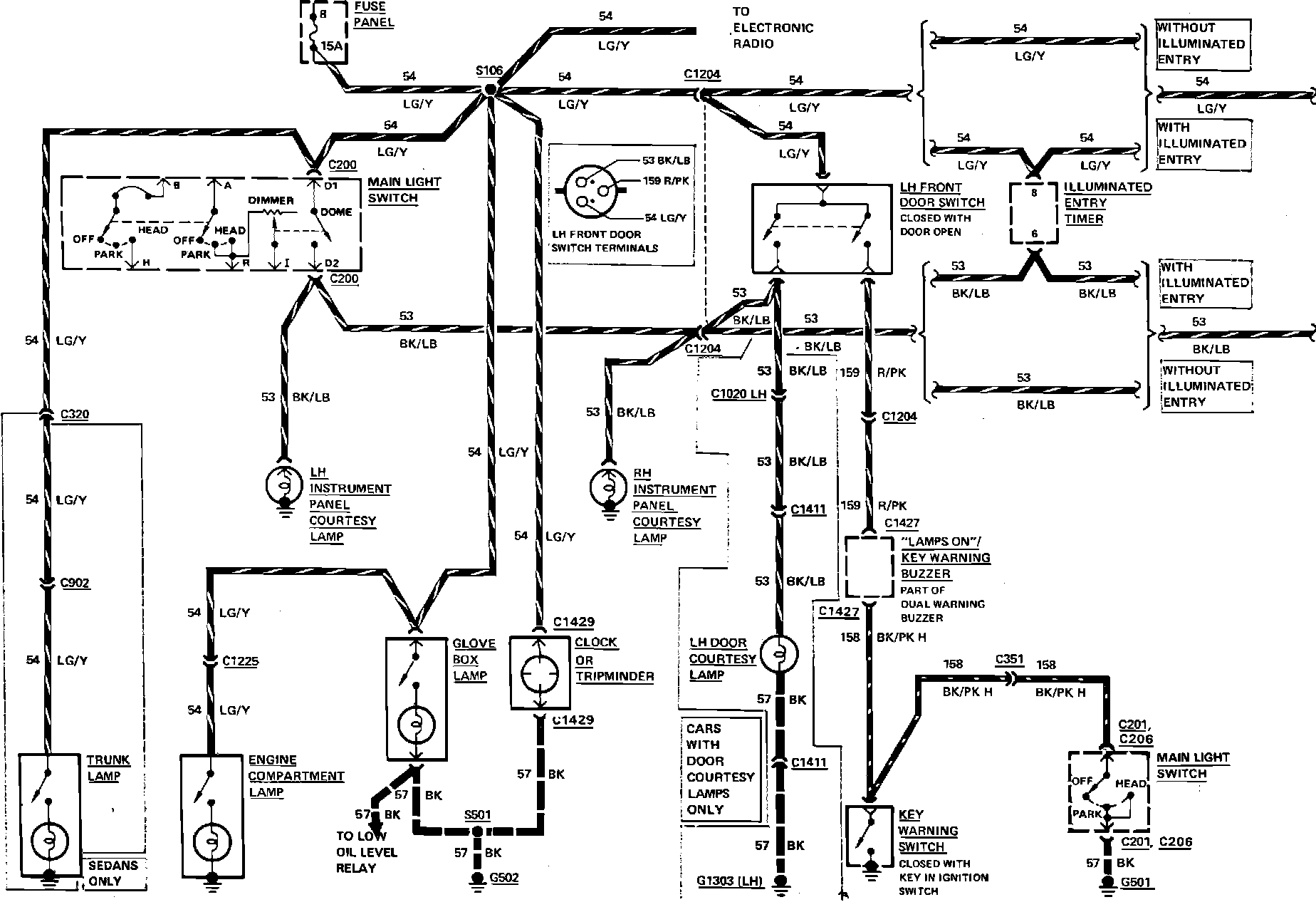

Fig. 16 Courtesy Lamp Wiring Circuit (Sedan, Part 1 of 2 ). 1983-84 Crown Victoria & Grand Marquis:

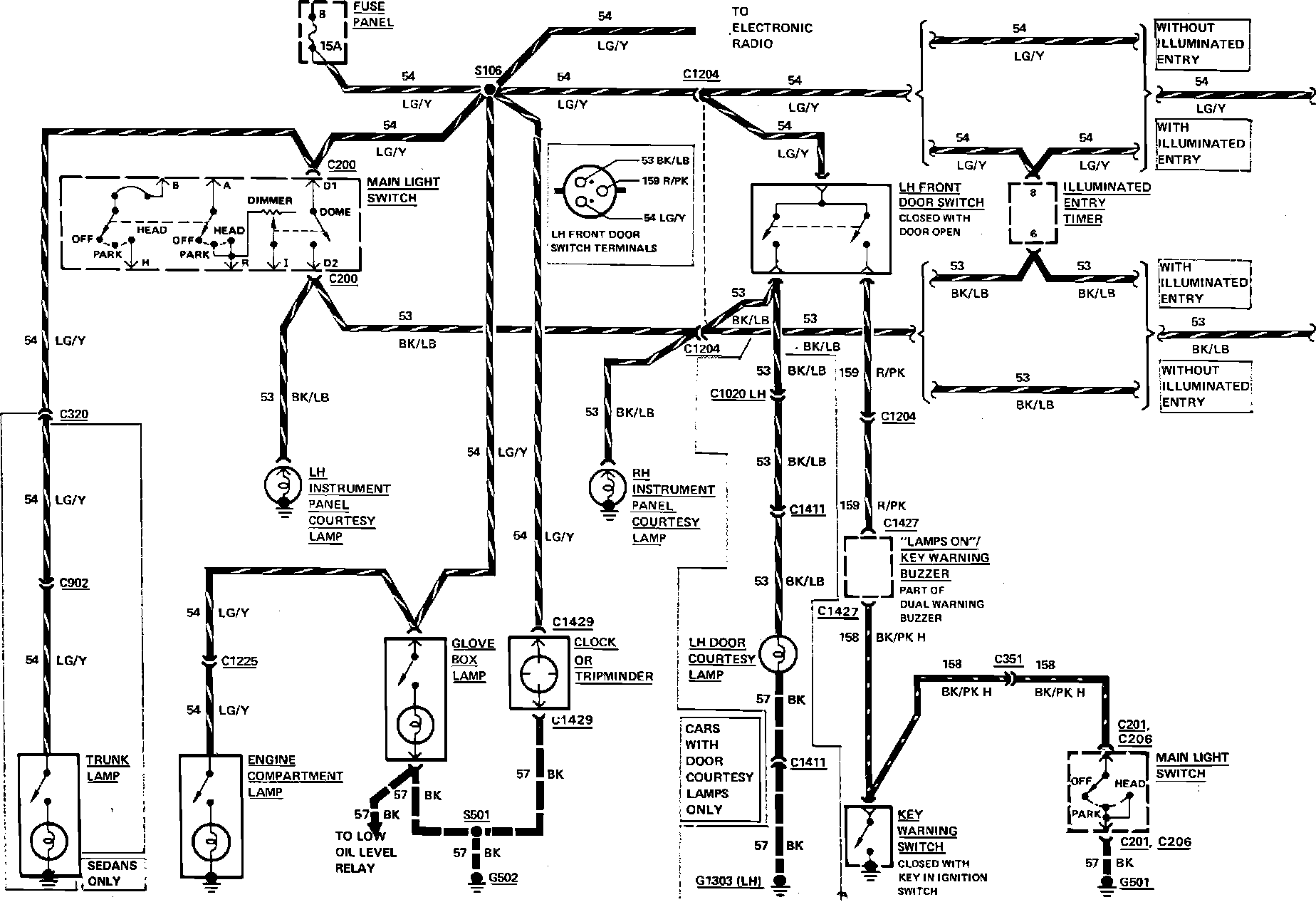

Fig. 16 Courtesy Lamp Wiring Circuit (Sedan, Part 2 of 2). 1983-84 Crown Victoria & Grand Marquis:

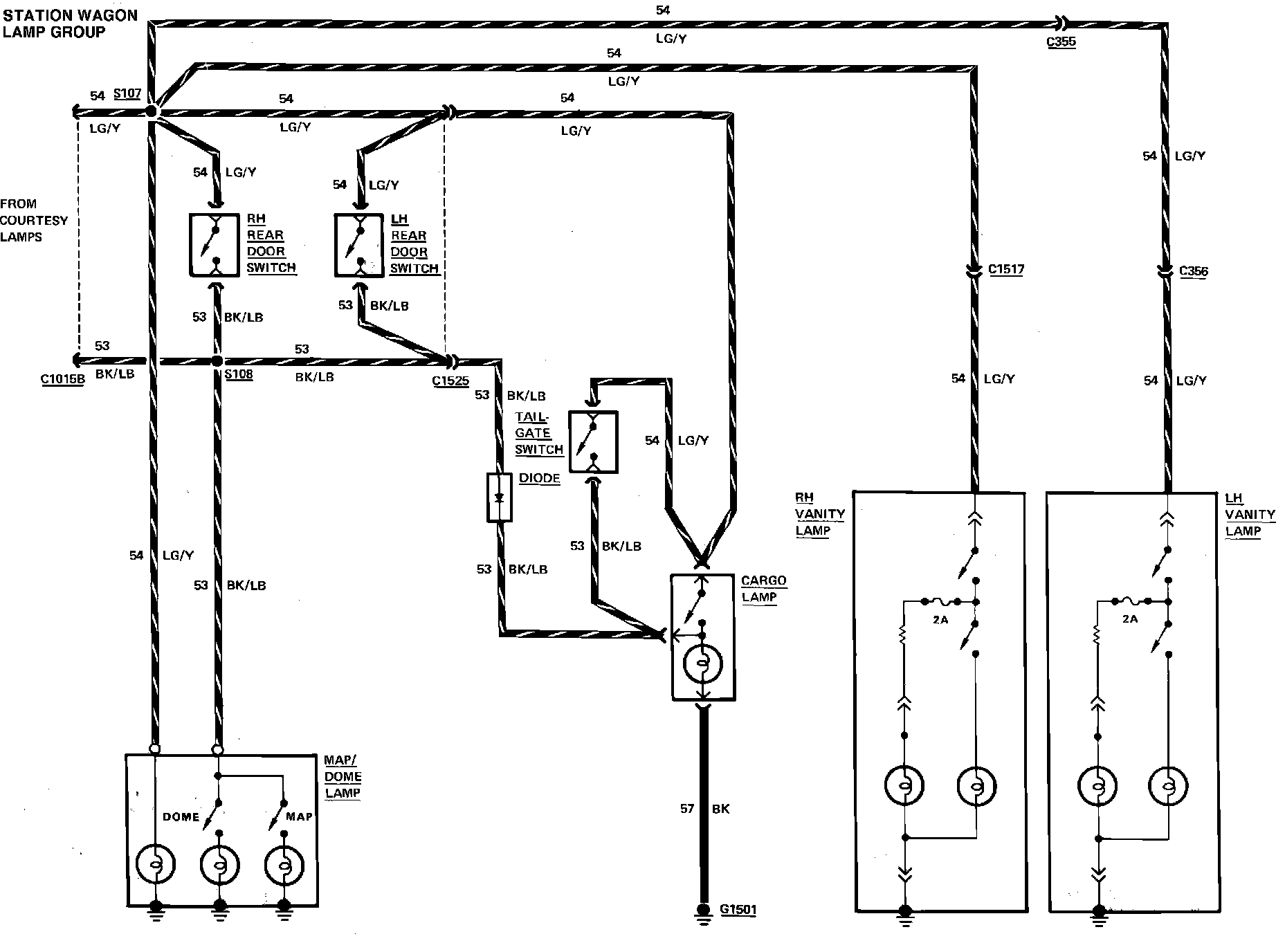

Fig. 17 Courtesy Lamp Wiring Circuit (Wagon, Part 1 of 2 ). 1983-84 Crown Victoria & Grand Marquis:

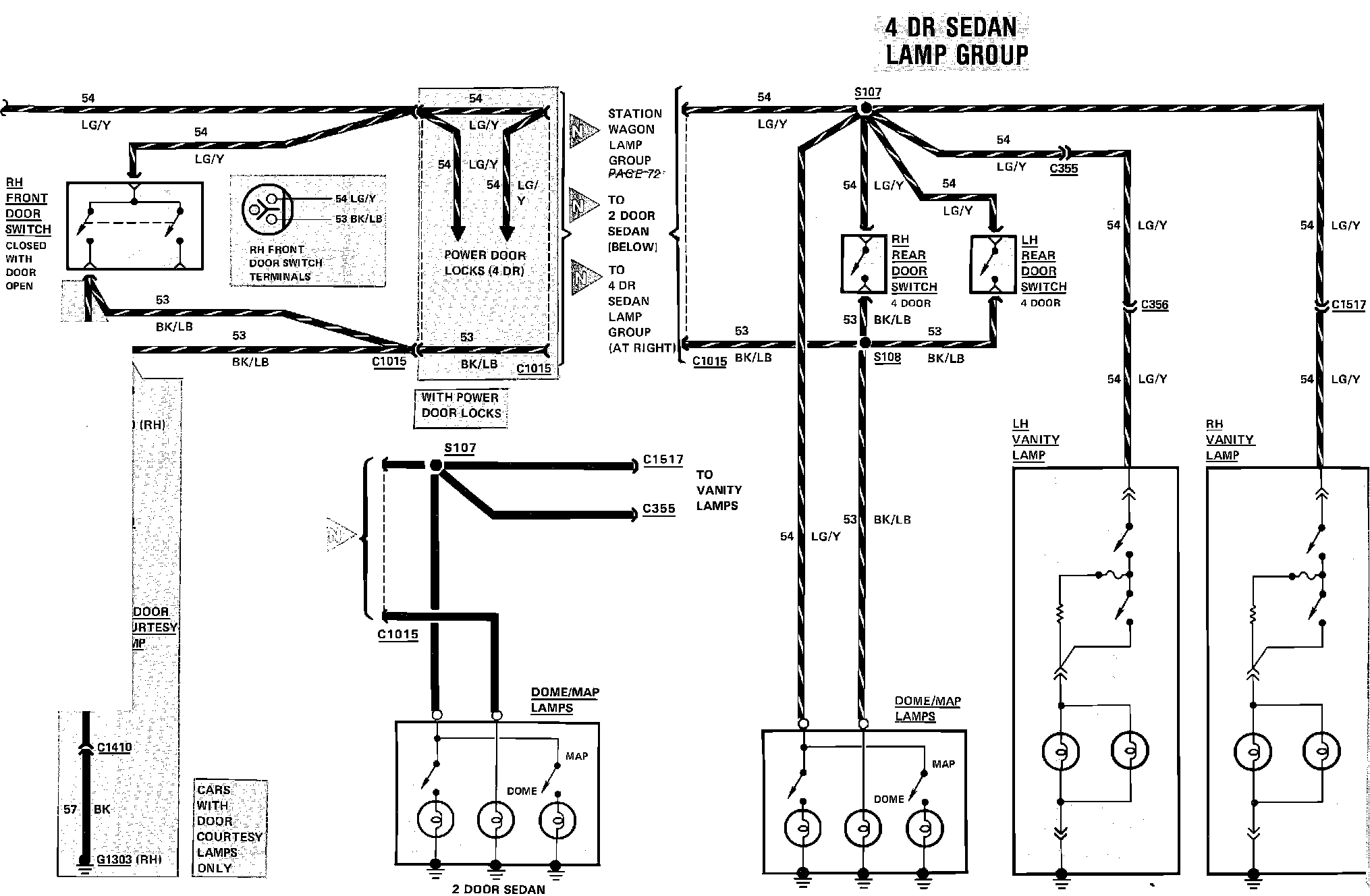

Fig. 17 Courtesy Lamp Wiring Circuit (Wagon, Part 2 of 2 ). 1983-84 Crown Victoria & Grand Marquis:
Fig. 64 Seat Belt Warning Wiring Circuit. 1983 Crown Victoria & Grand Marquis:
