Less Fuel Injection

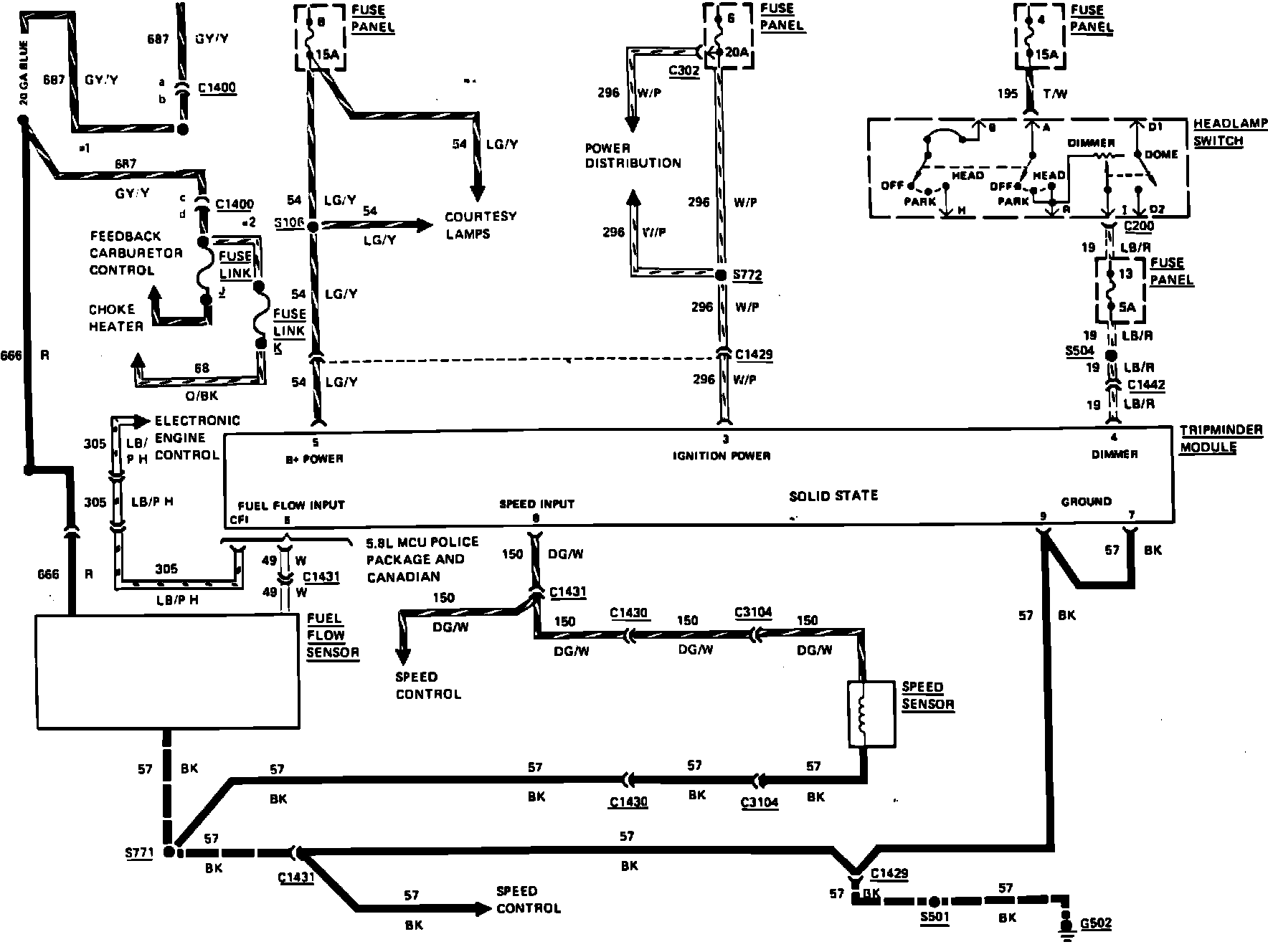

Fig. 71 Tripminder Wiring Circuit. 1983 Crown Victoria & Grand Marquis (Less Fuel Injection):
