Colony Park V8-302 5.0L VIN F TBI
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Trip Computer
>>
Diagrams
>>
Electrical Diagrams
>>
With Fuel Injection
With Fuel Injection

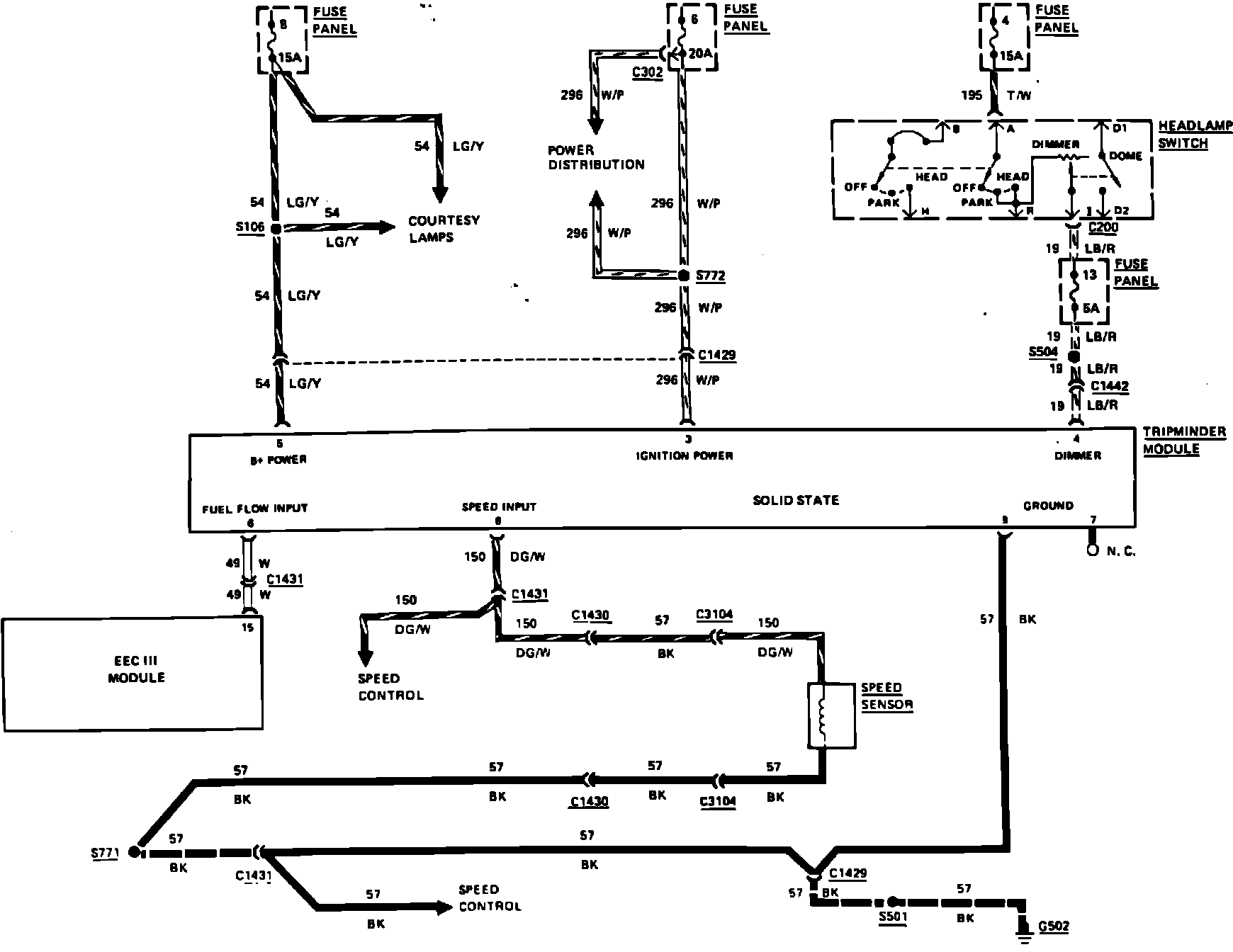

Fig. 72 Tripminder Wiring Circuit. 1983 Crown Victoria & Grand Marquis (With Fuel Injection):
