Monaural System

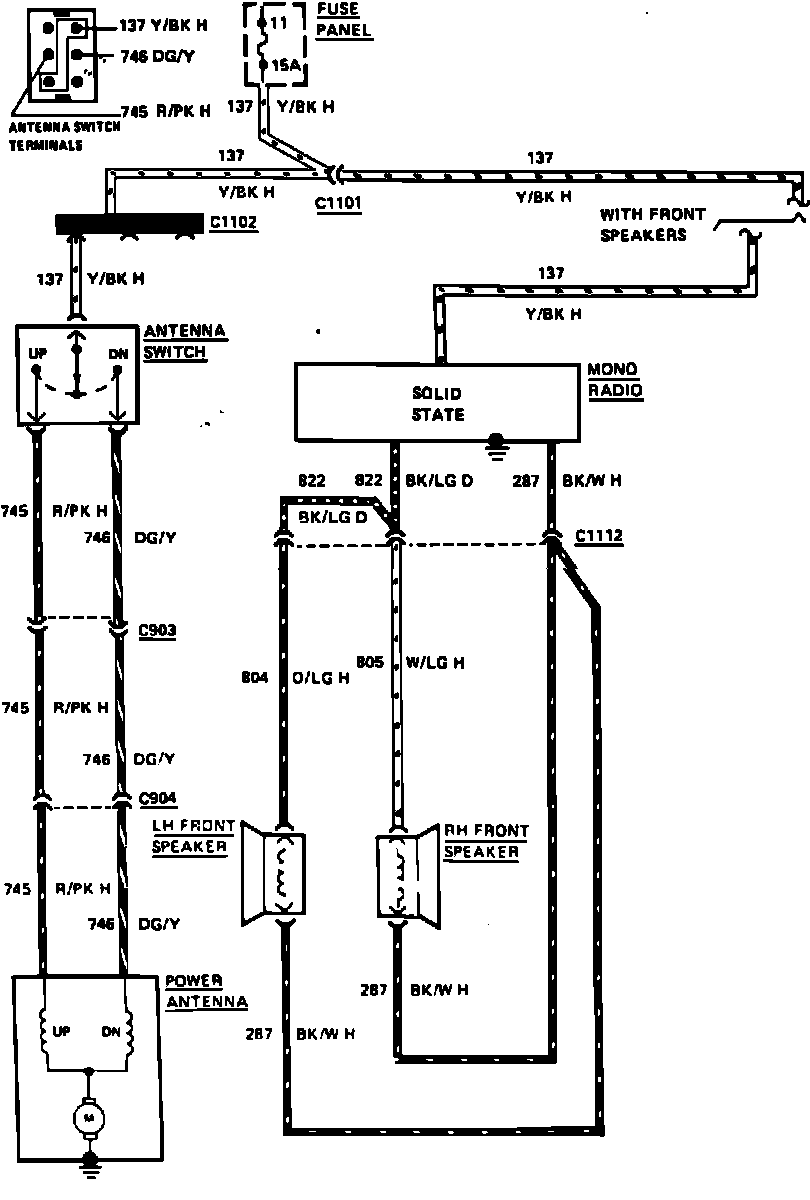

Fig. 53 Radio & Speaker Wiring Circuit. 1983 Crown Victoria & Grand Marquis With Monaural Radio:
