Electronic Stereo

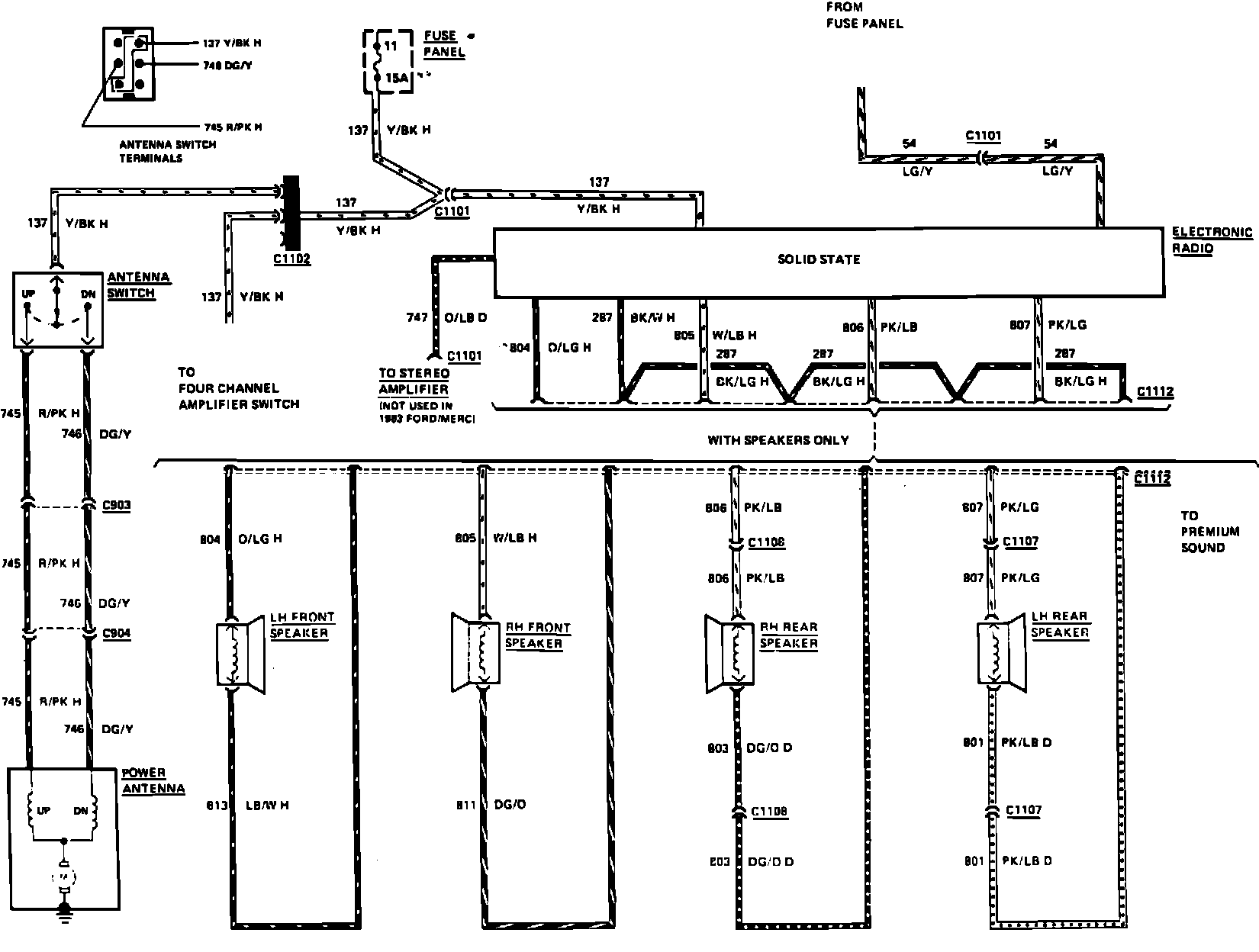

Fig. 57 Radio & Speaker Wiring Circuit. 1983 Crown Victoria & Grand Marquis With Electronic Stereo:
