Related Tests, Information and Procedures

Fig. 1a Typical - EEC-III with Electronic Fuel Injection:



Fig. 22 EEC-III wiring diagram.:

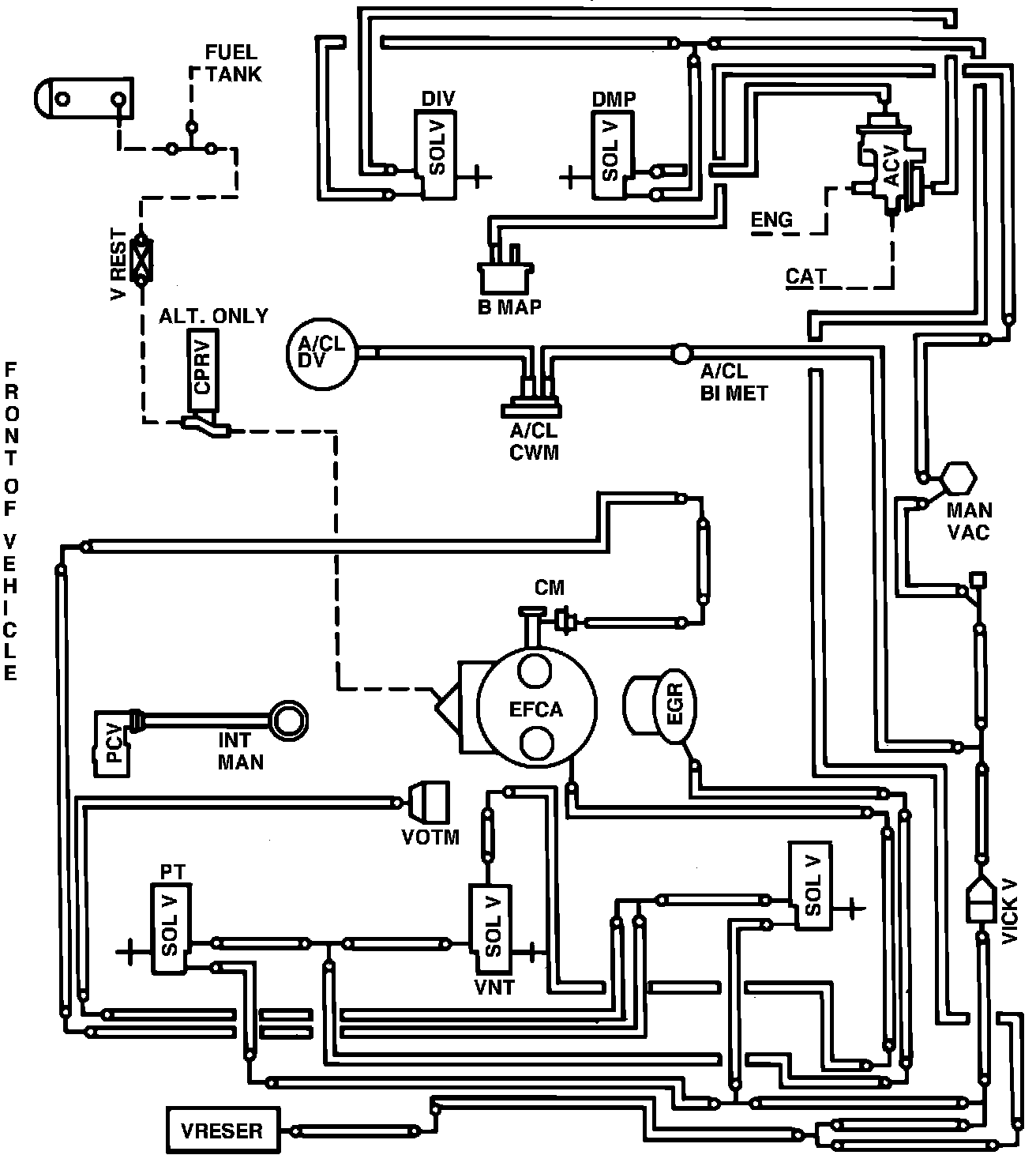

Fig. 24 EEC-III vacuum diagram.:
