Less Intermittent Wipers

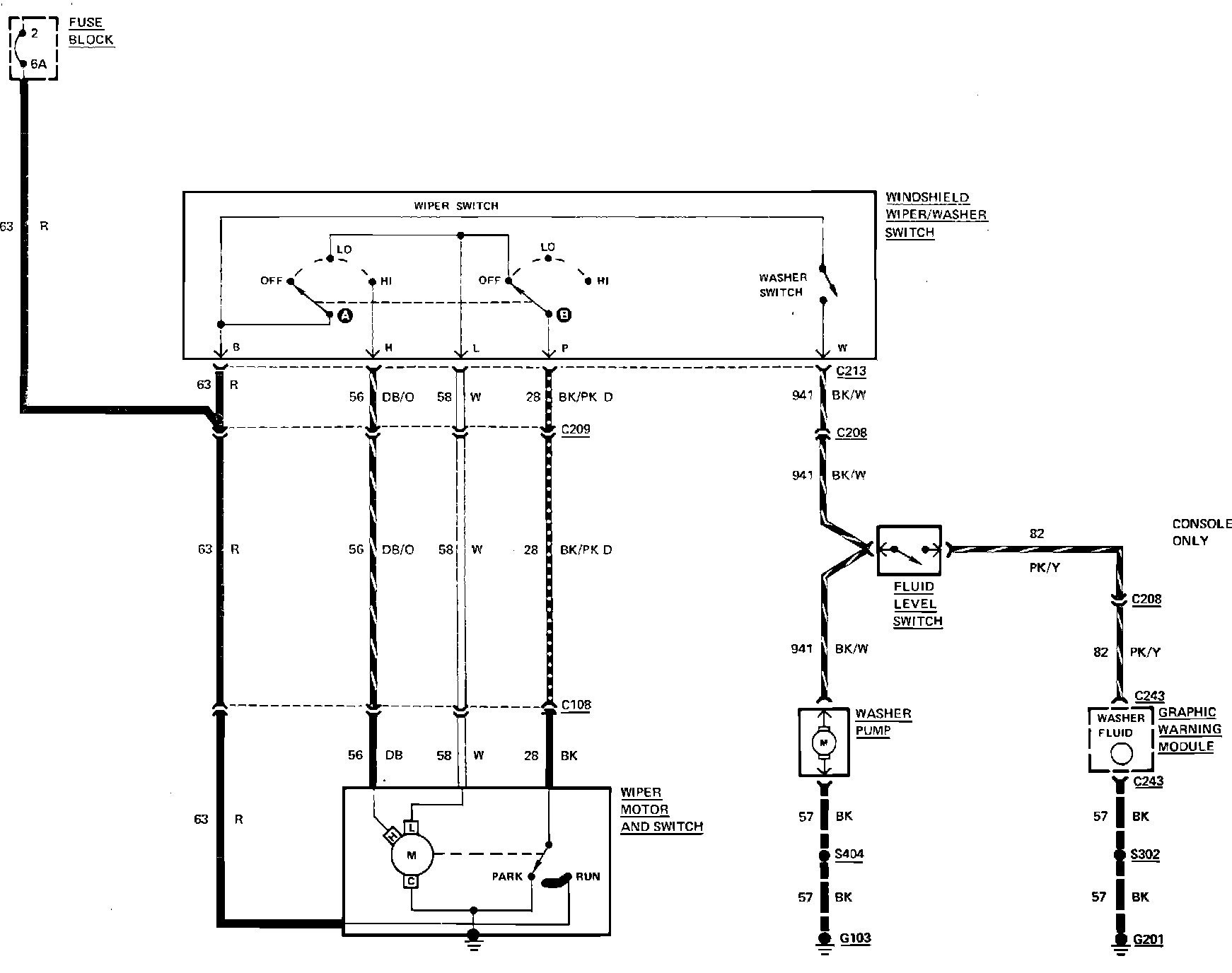

Fig. 76 Windshield wiper & washer wiring circuit. 1983 Capri & Mustang less intermittent wiper:
