Electrical Diagrams

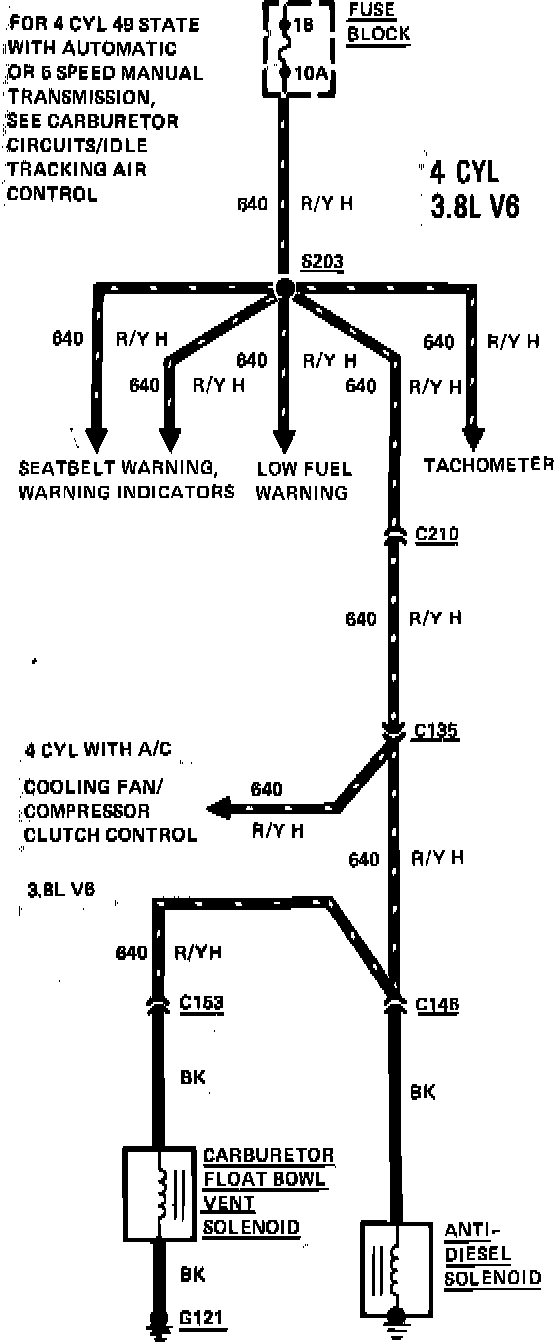

Fig. 18 Carburetor wiring circuit. 1983 Capri & Mustang with 4 cyl engine & Calif. emissions or 6 cyl engine:
