Mercury
>>
1983
>>
Capri V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>
Radiator Cooling Fan Control Module
Radiator Cooling Fan Control Module

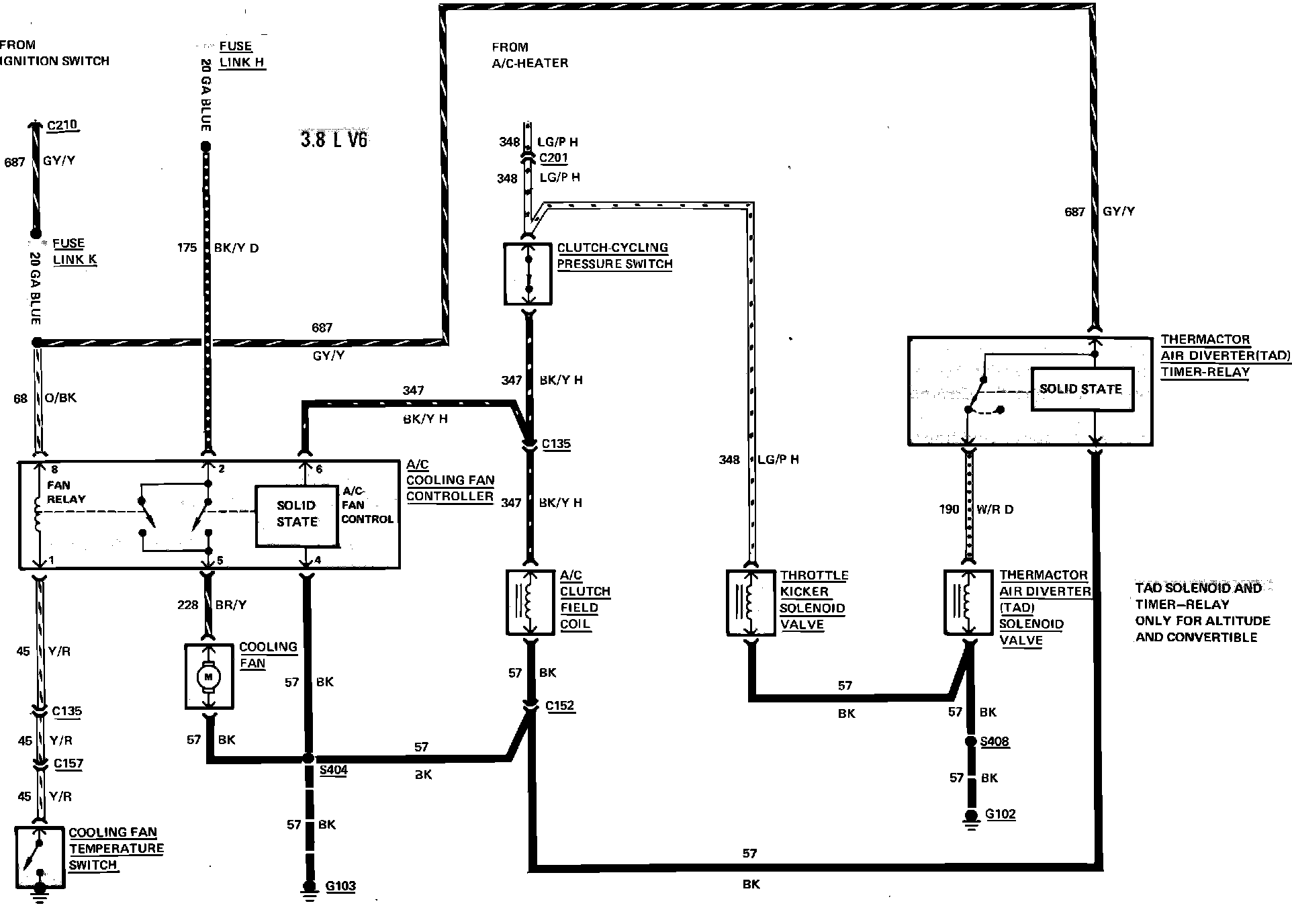

Fig. 8 Air conditioning compressor clutch & cooling fan wiring circuit. 1983 Capri & Mustang with 6 cyl engine:
