Stator







TFI-IV

Closed Bowl

Distributor
Part 2

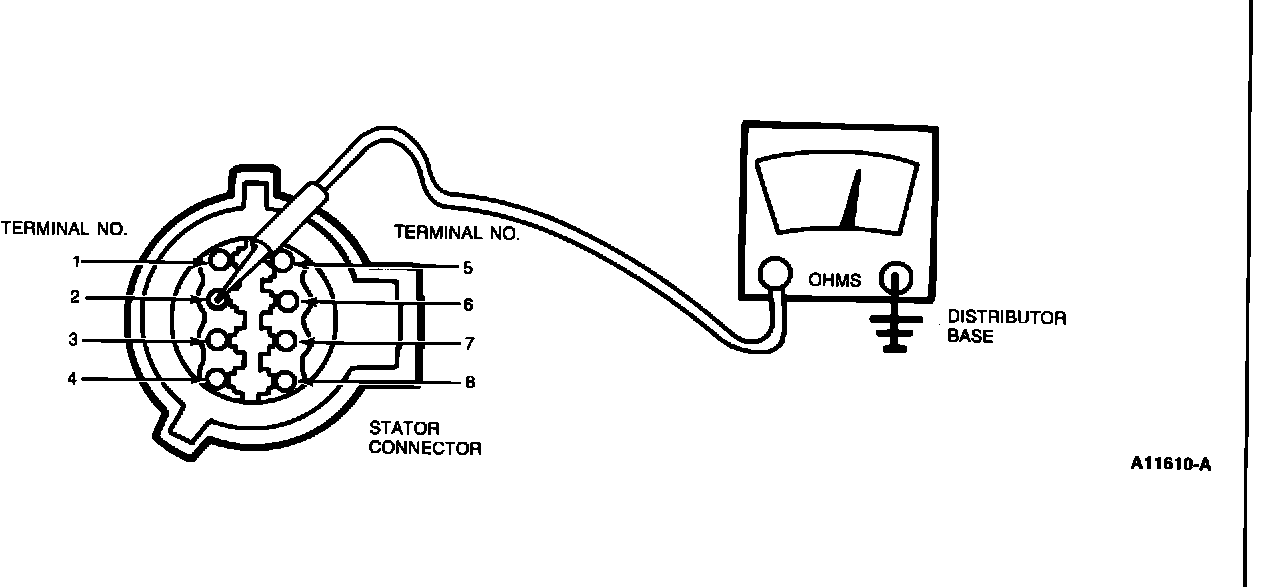

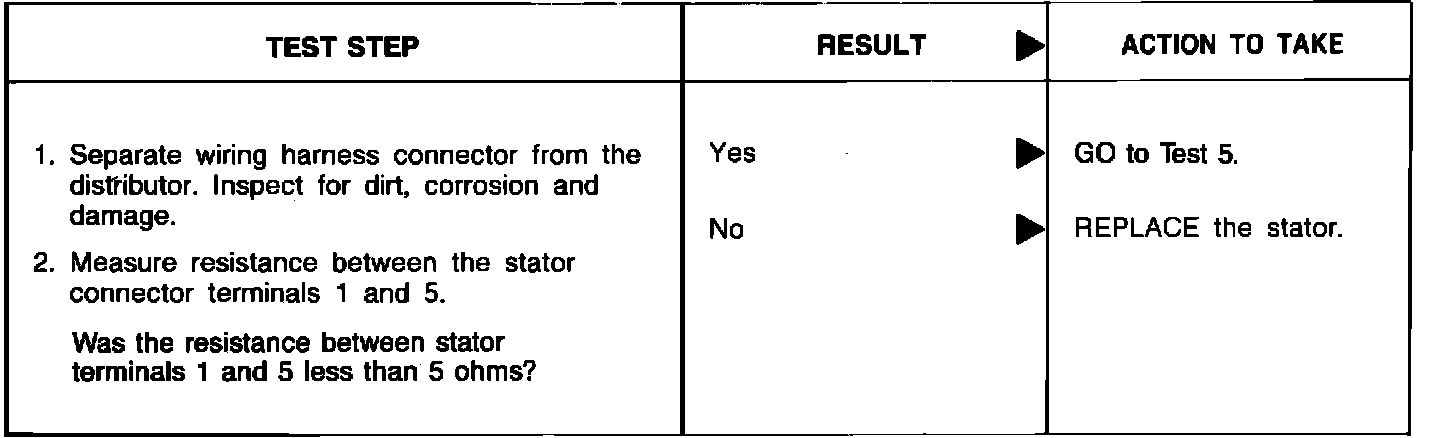

Test 4, 5 & 6







Stator
TFI-IV

Closed Bowl

Distributor
Part 2

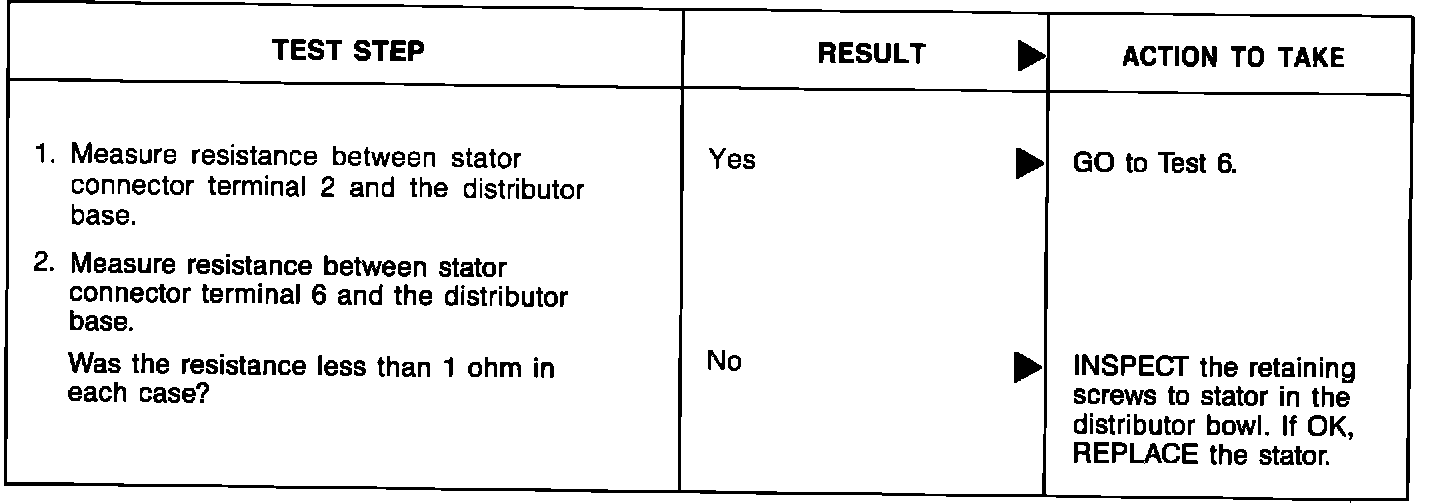

Test 5



Stator
TFI-IV

Closed Bowl

Distributor
Part 2

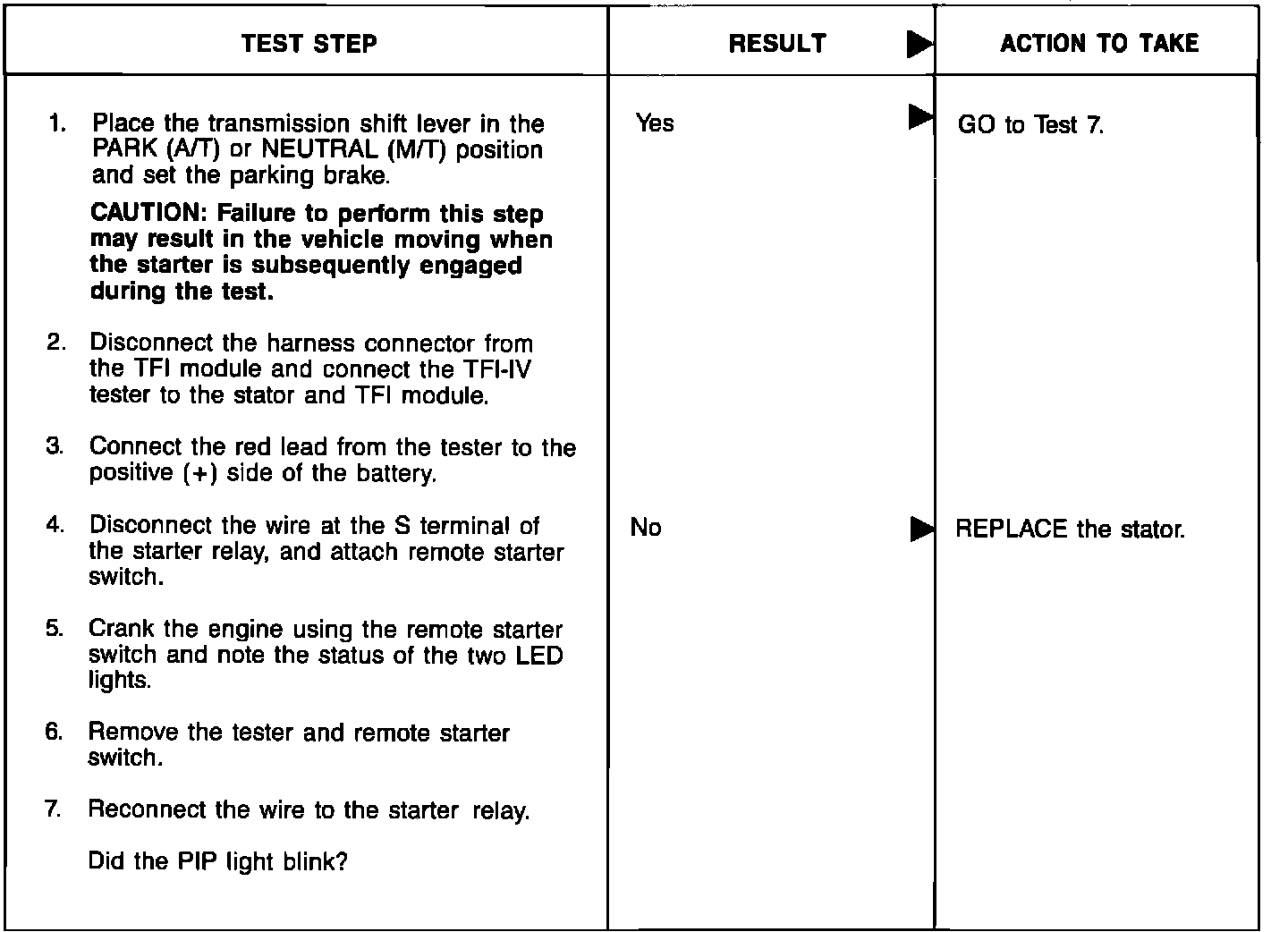

Test 6
