Home >> Mercury >> 1983 >> Capri L4-140 2.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Relays and Modules - Fuel Delivery and Air Induction >> Choke Relay >> Diagrams >> Electrical Diagrams

Electrical Diagrams

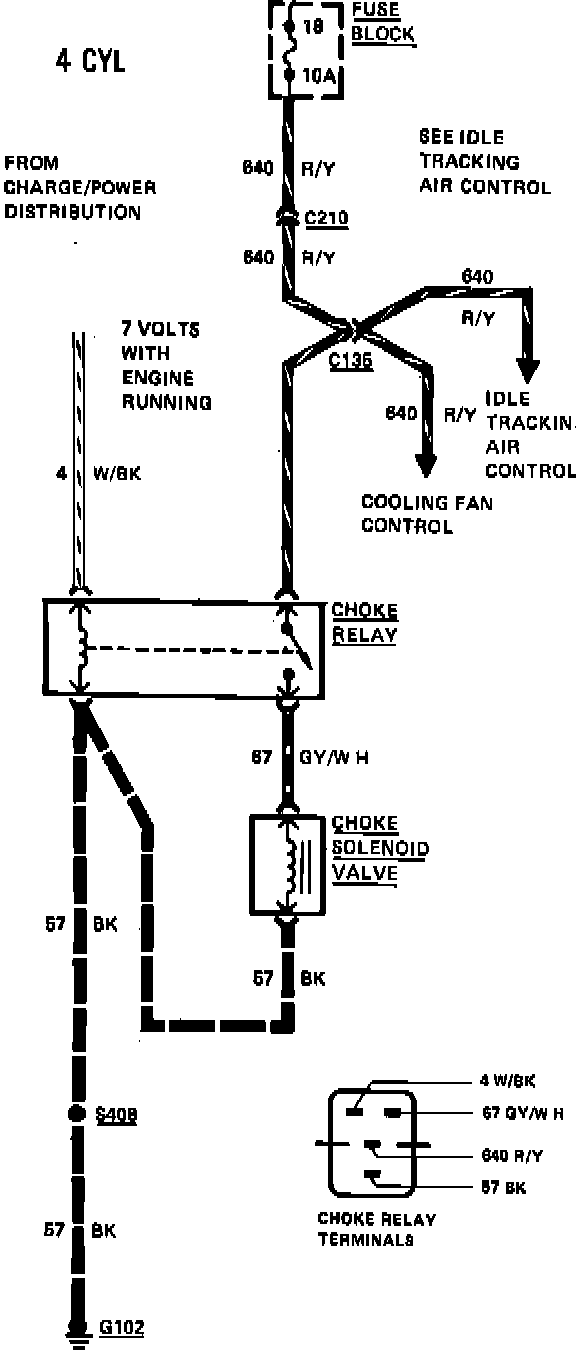

Fig. 66 Restart choke control wiring circuit. 1983 Capri & Mustang:
