Federal Emission & Automatic Transmission

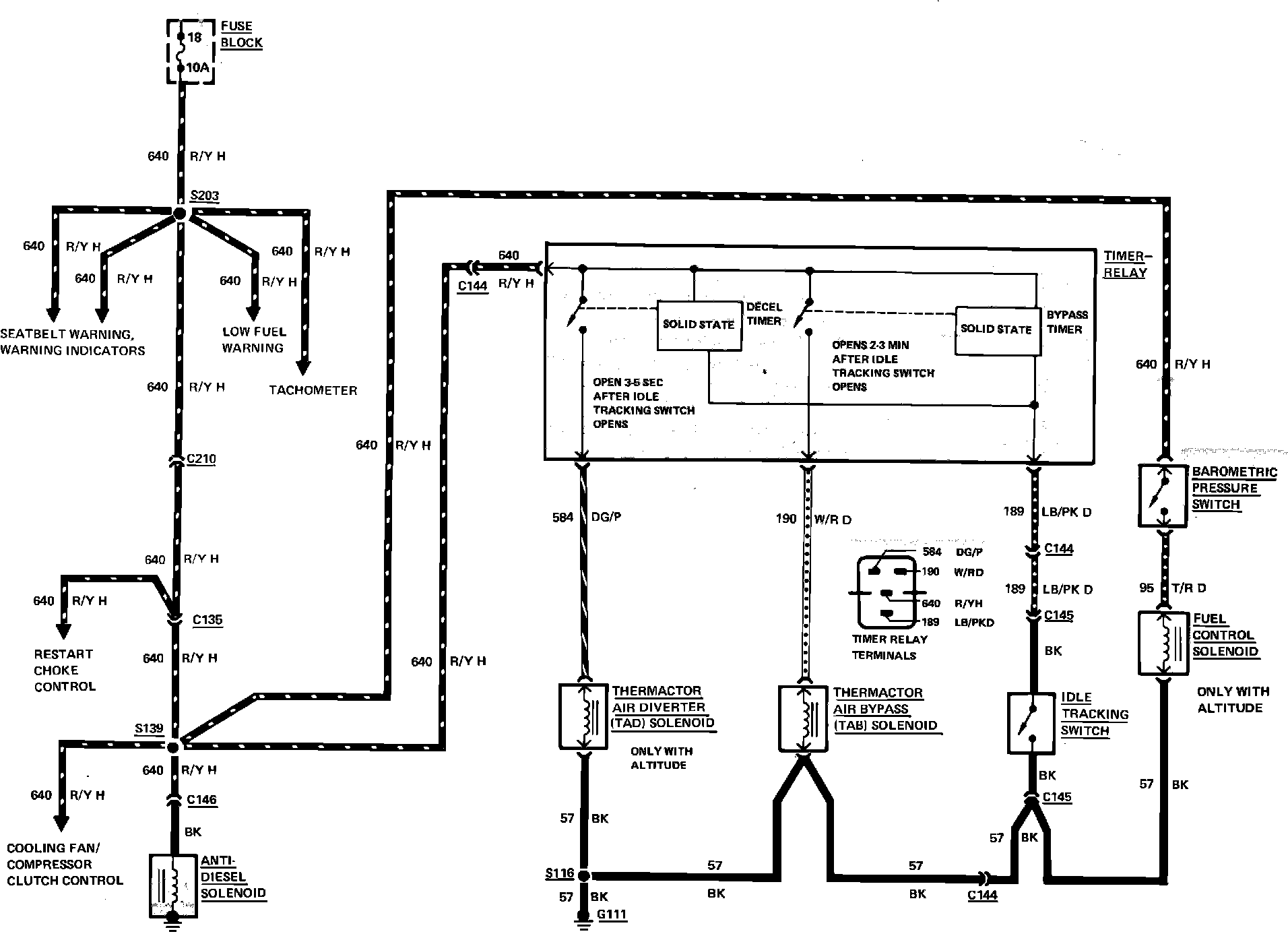

Fig. 16 Carburetor wiring circuit. 1983 Capri & Mustang with 4 cyl engine, federal emissions & automatic transmission:
